1.9

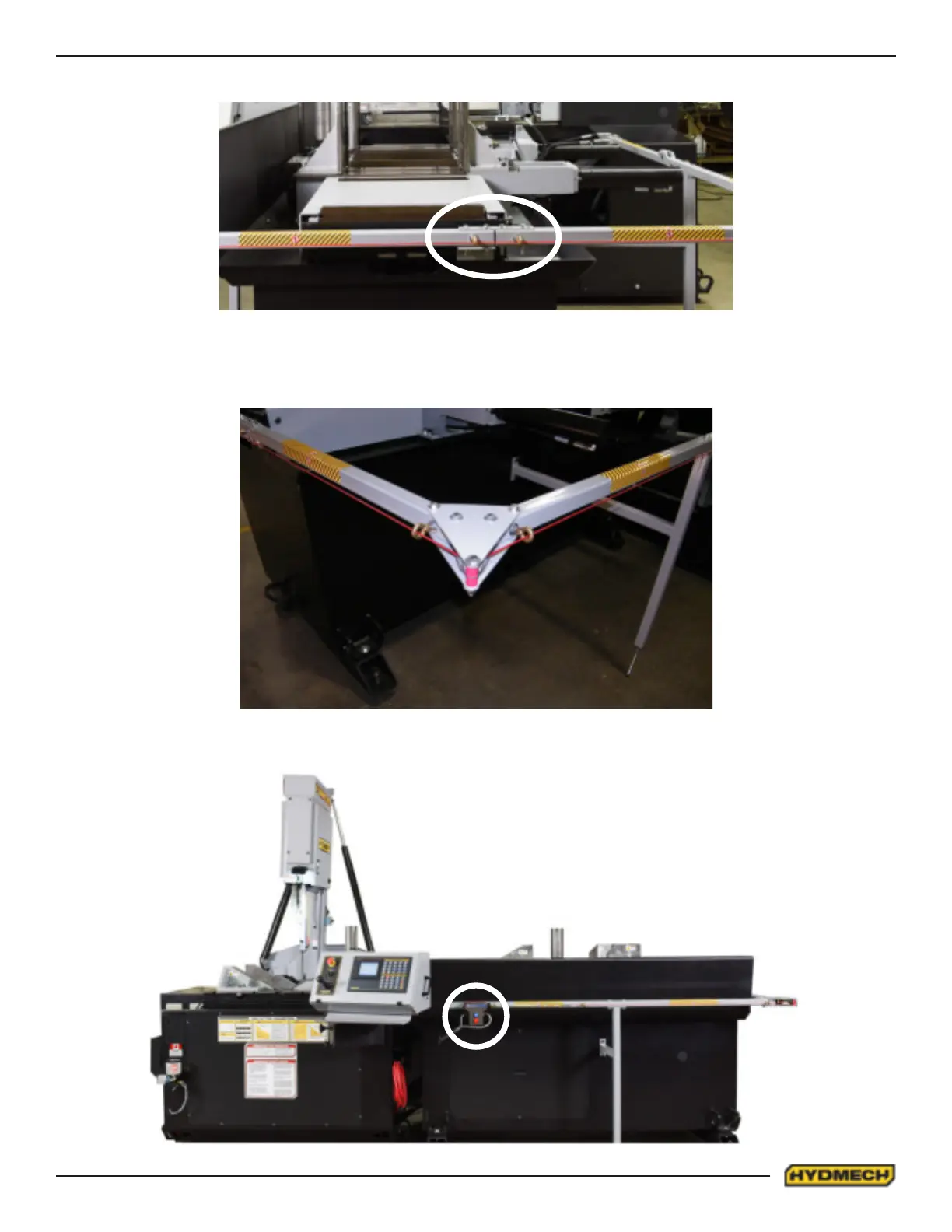

• Assemble the rear guard tubes to the back of the infeed assembly
• Assemble both the front guard and the hinged guard to the legs. A pulley is mounted on a bracket and attached to
each rear corner of the safety guard. Fasten the three sides of the guard together at these brackets.
Adjust the levelling bolts on each leg to ensure the guard is level.
• Remove the cover of the trip wire control box.
