Hyd-Mech V18APC - SECTION 4 - ELECTRICAL; ELECTRICAL PANEL COMPONENTS AND TAGGING

4.1
V18 APC ELECTRICAL
The electrical schematics on CD show some components labeled as TB1 to TB6 and these components are physically

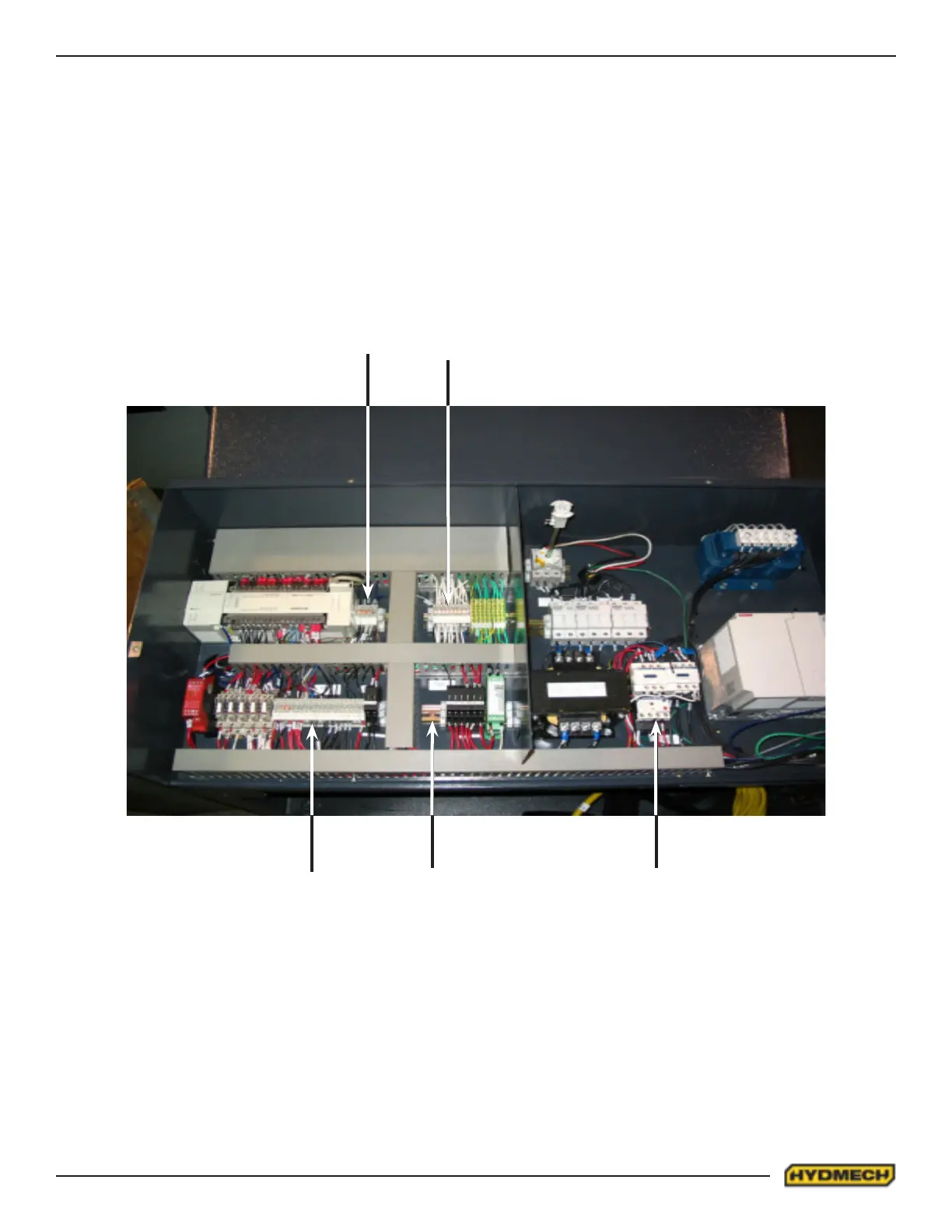

mounted on din rails. The illustration below shows the location of the Din rails with the installed components and the des-
ignated TB number.
The following pages will show and explain in brief how to understand the correlation between the electrical schematic and
the control panel with regards to TB1 to TB6.
TB1
TB2
TB3
TB6
TB5
