HYDAC FILTER SYSTEMS OLF-5 Series - Drawing OLF-5;4-SP; Fig. 10 Drawing OLF-5;4-SP

3 | Filter unit/filter housing over-view HYDAC FILTER SYSTEMS GMBH
38 / 100 MoWa OLF-5 3433222d en-us print

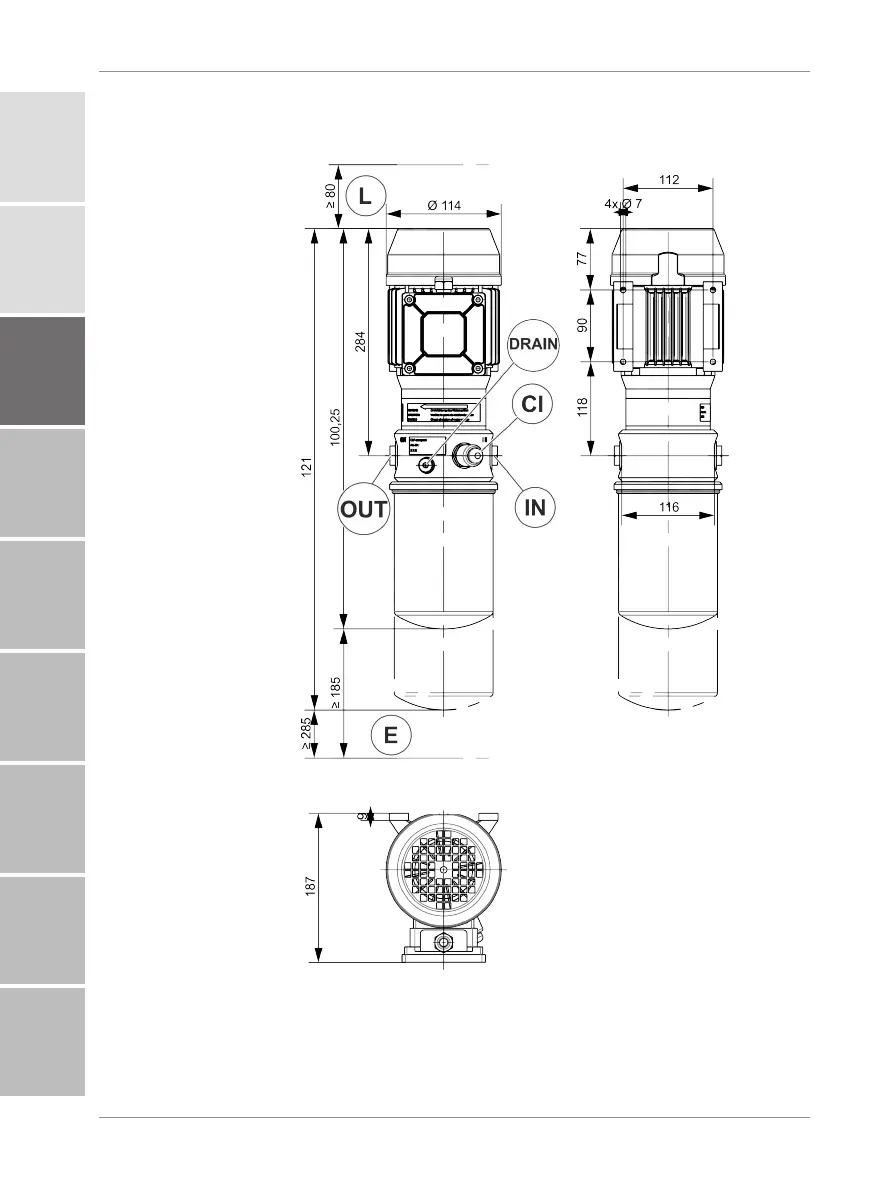

3.6.3 Drawing OLF-5/4-SP…
The filtration unit has the following dimensions:
Fig.10: Drawing OLF-5/4-SP
All dimensions in mm.
