A.1.5 Accessories - Tank Connection Kit OLF-5-TAK
The Tank Connection Kit TAK is designed for the easy and
quick retrofitting on an OLF filter unit on existing hydraulic sys-
tems. This can be used on all hydraulic systems with a
breather filter according to the connection diagram DIN24557/
T2.
Designation Part no.
The OLF-5-TAK, consisting of items 2, 3 and 4 3039235

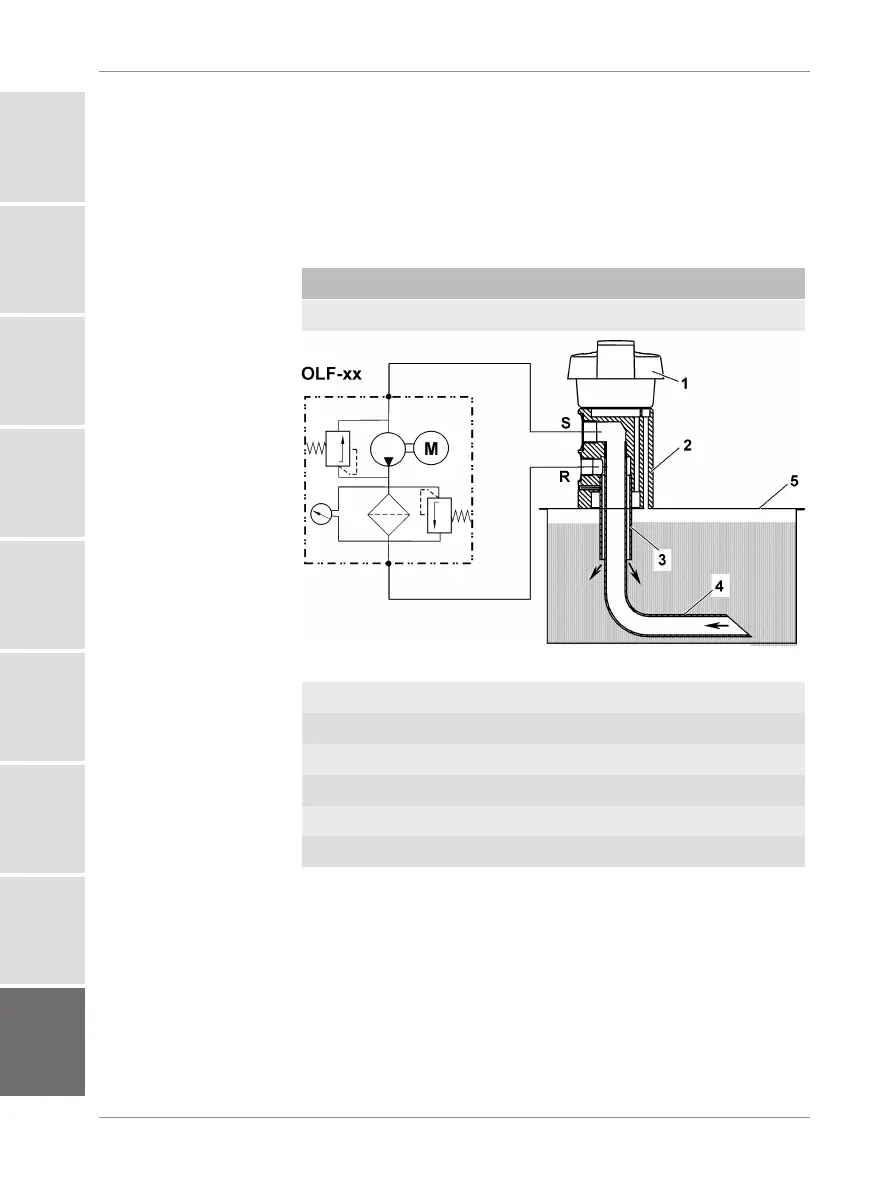

Fig.25: OLF-5TAK
Item Designation
1 Air filters
2 Adapter
3 Return tube
4 Suction tube
5 Hydraulic tank
