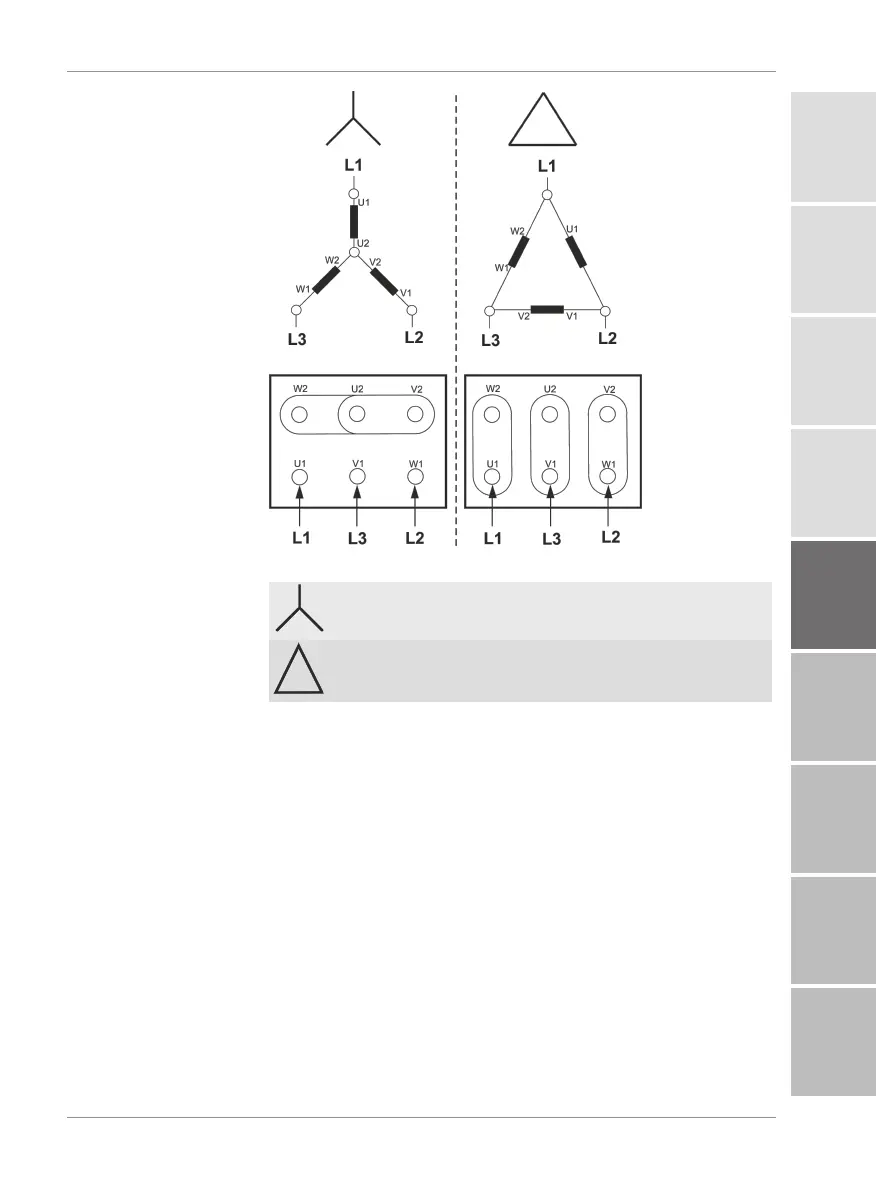

Fig.18: Star-delta connection
Star connection
Delta connection
5.7.1 Check direction of rotation
Check the direction of rotation on the electric motor by switch-
ing it on briefly (manual operation). An arrow on the fan
shroud / pump shows the correct direction of rotation.
