A.3 Clogging indicators - technical data
Listed below are the technical data pertaining to the optional,
optical or electrical clogging indicators suitable for the installa-
tion in the filter housing / filter unit.
A.3.1 Differential pressure indicator, visual – VMxB.x
The optical differential pressure gauge reacts to the increasing
pressure difference at the increasing contamination level of the
filter element.
30

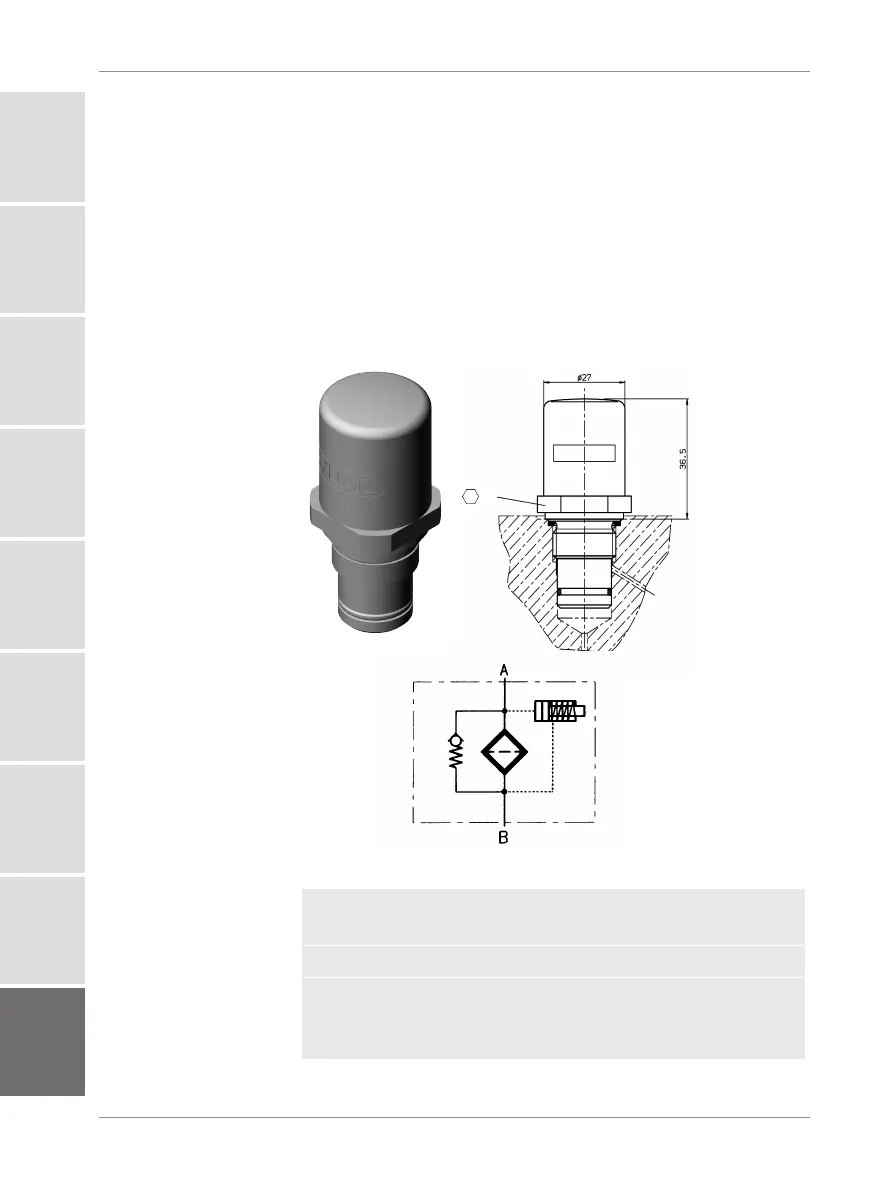

Fig.26: Differential pressure indicator - visual VMxB.x
Type of indication Visual display with a green-red
field, automatic reset
Weight 55 g
Response pressure and indi-
cation range respectively
VM2B.x=2bar -10%
VM3B.x=3bar -10%
VM5B.x=5bar -10%
