HYDAC FILTER SYSTEMS OLF-5 Series - Fig. 21 Spin-On Filter Cartridge

HYDAC FILTER SYSTEMS GMBH Performing Maintenance | 8
MoWa OLF-5 3433222d en-us print 71 / 100

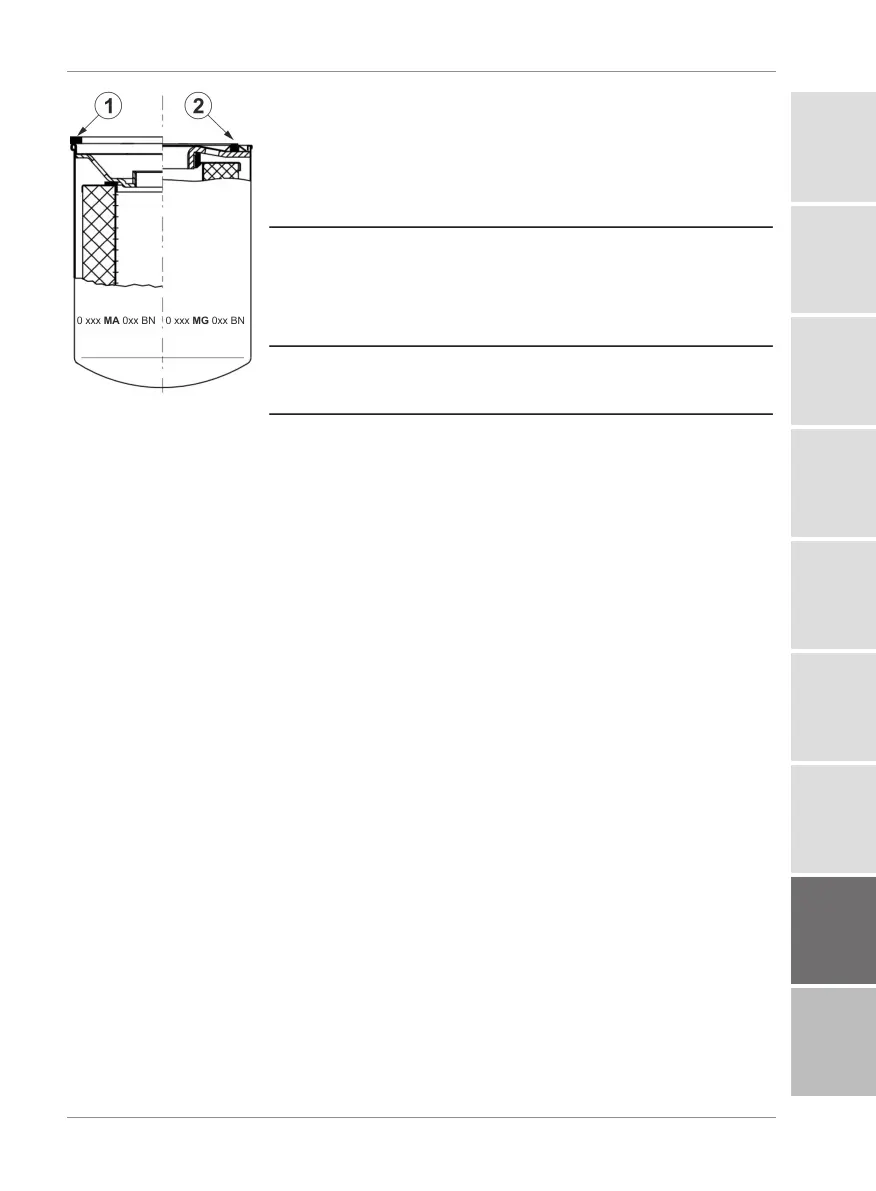

Fig.21: Spin-On filter
cartridge
7. For the filter cartridge 0160MA0xxBN, remove the old
sealing ring (1) to the filter element in the connector
head and replace it with the new sealing ring.
The sealing ring (2) has already been fitted on the filter
cartridge 0160MG010P.
8. Screw the filter cartridge by hand counterclockwise on to
the filter holder.
After contact with the sealing surface, tighten the filter
cartridge manually with another ¾ turn.
9. Check the filter unit for any leaks after switching it on.
If necessary, tighten the filter cartridge again.
