motor.
After emptying the housing, screw the drain plug Drain
in again.

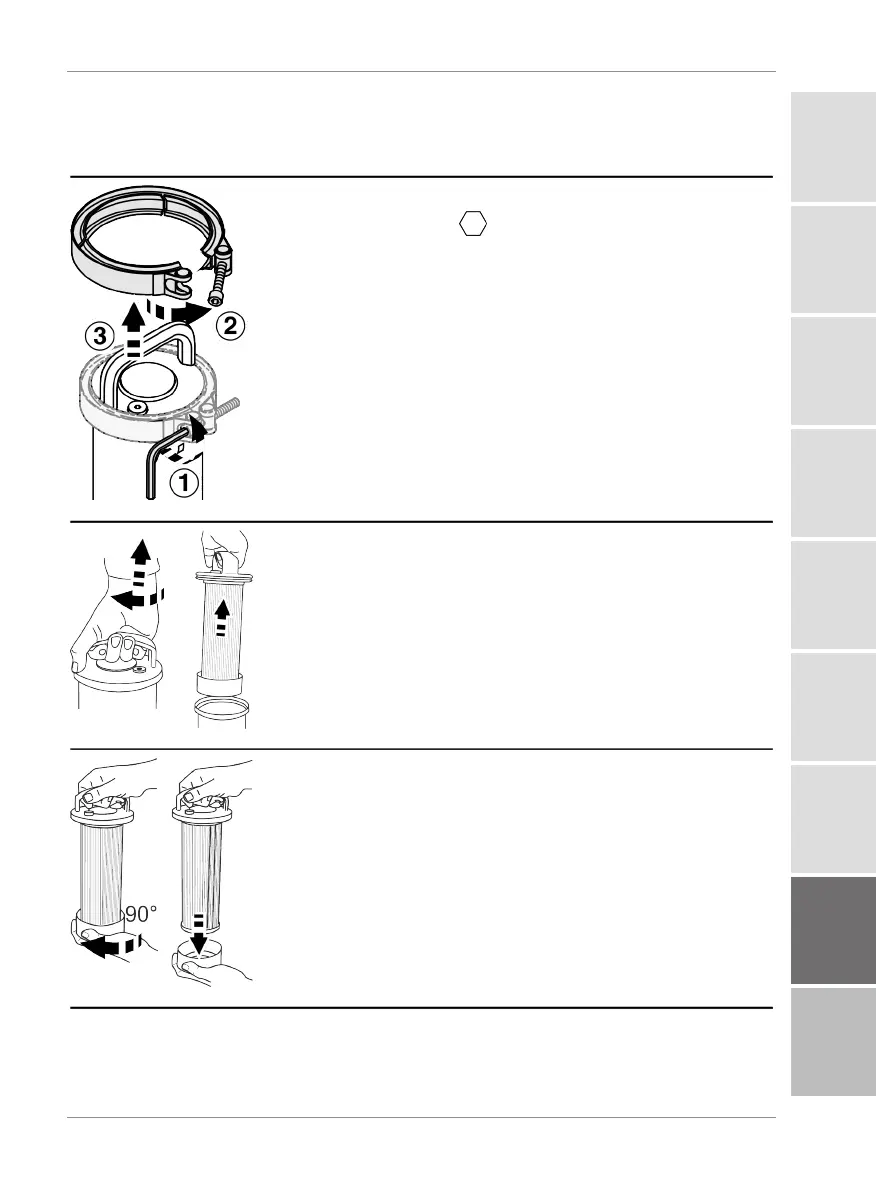

5. Loosen the housing clamps (1) on the filter housing with
an Allen wrench ( =5mm). Remove the screw head
(2) and take the housing clamp off to the top (3).
6. Pull out the filter bowl cover carefully to the top. While
doing so, rotate it slightly clockwise so that the filter ele-
ment remains engaged at the filter bowl cover.
7. By rotating it clockwise by 90°, you loosen the dirt catch
tray.
1
2
3
4
5
6
7
8
A
