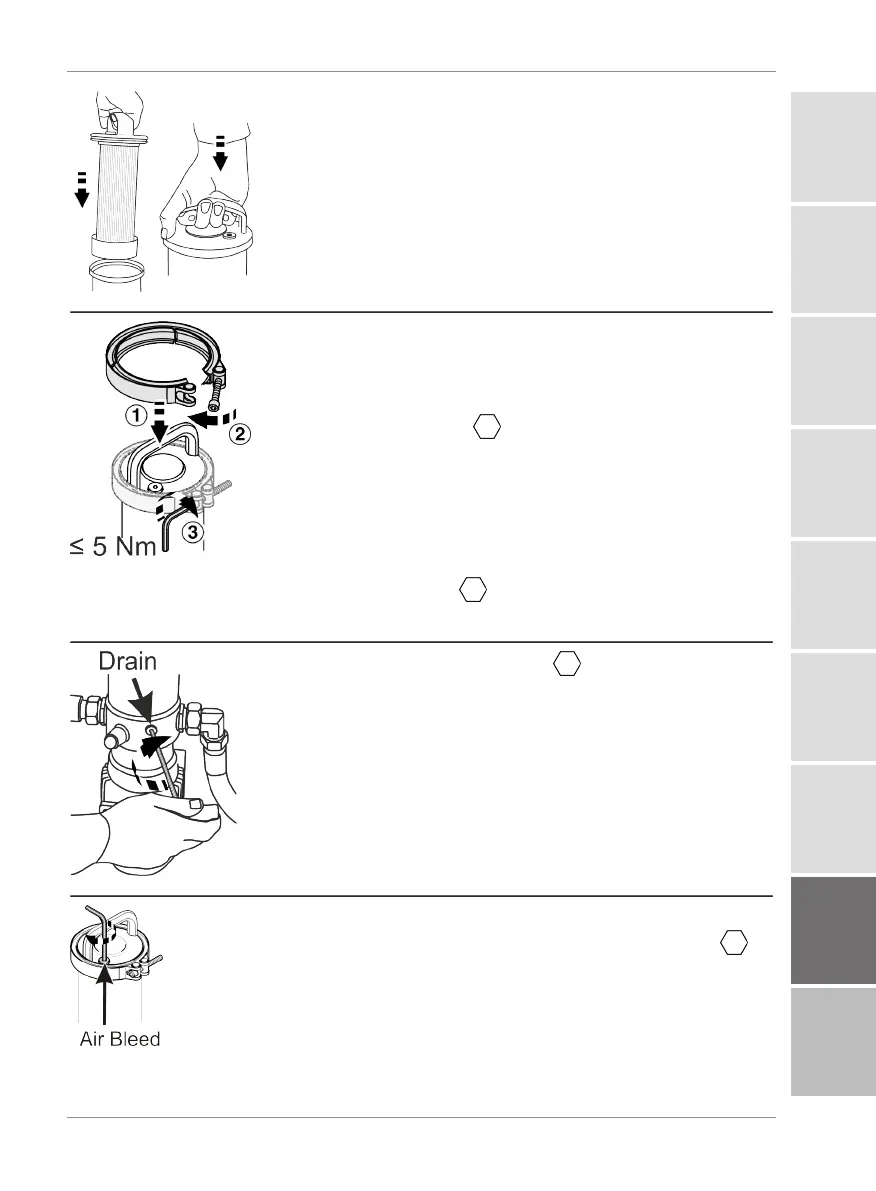

13. Place the filter element with the filter bowl cover and the
dirt catch tray in the filter housing.
Check the O-ring on the cover for being seated cor-
rectly.
14. Place the tensioning clamp around the filter housing and
filter lid (1).
15. Insert the the screw (2).
16. Tighten the screw ( =5mm) of the housing clamp to
the maximum torque of 5Nm (3).
17. Push the housing clamp (1) from the bottom over the fil-
ter bowl to the top over bead on the filter bowl/filter
head.
Tighten the housing clamp in clockwise direction using
an Allen wrench ( =6mm). The tightening torque is 5
Nm.
18. Tighten the drain plug Drain ( =6mm).
19. Switch the filter unit/hydraulic system on and vent the fil-
ter housing through the air bleed screw Air Bleed (
=6mm) in the filter bowl cover.
O The replacement of the filter element is complete.
After commissioning, check the filter unit for leaks.
