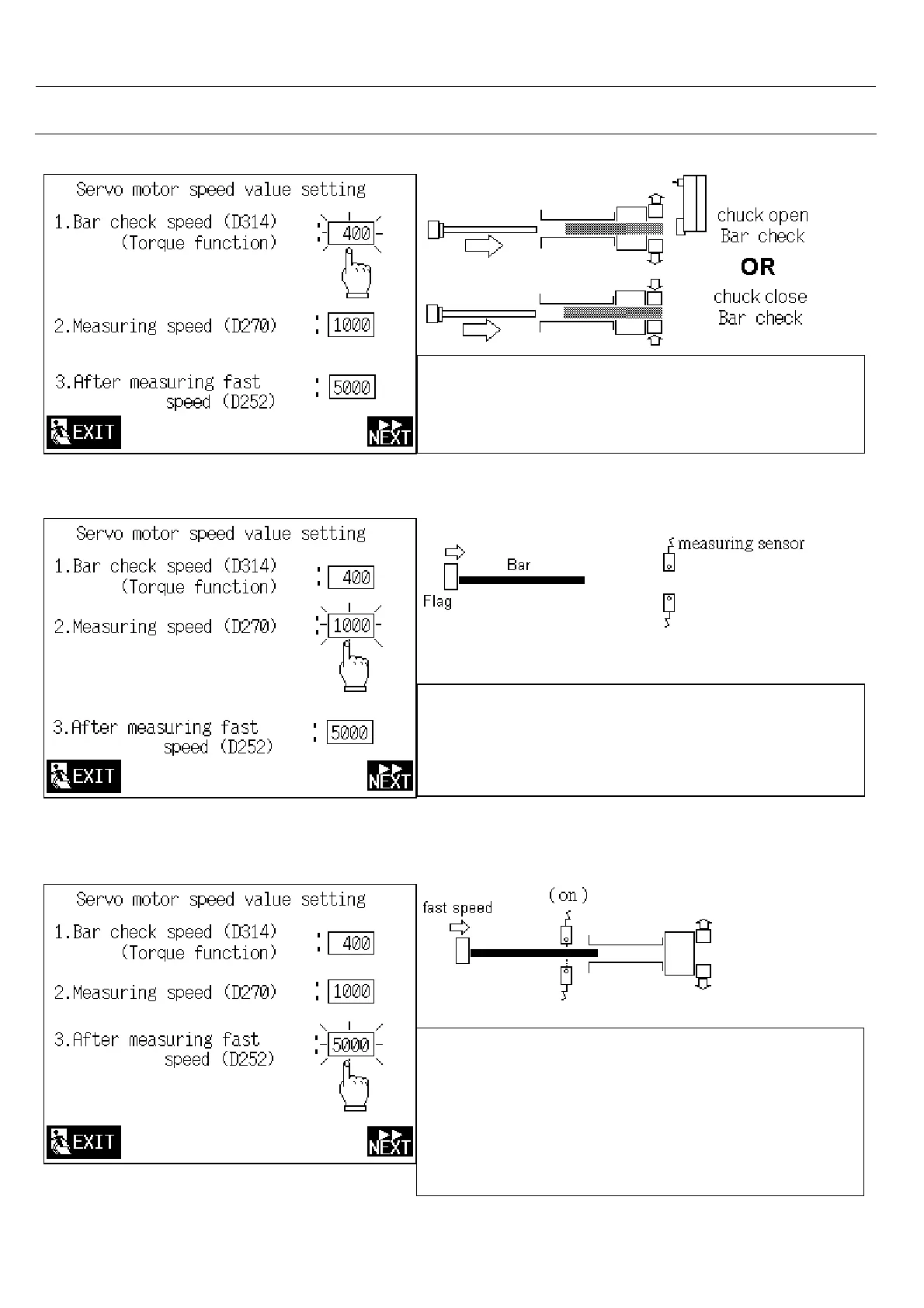

4. System Setup
( 1 ) Bar check speed value setting
( 2 ) Measuring speed value setting
( 3 ) After measuring fast speed value setting
On bar check, feeding speed under torque mode.
Speed setting ranges: 100- 500 (65- 330mm/sec)
Factor
settin
data: 400
260mm/sec
On measuring bar length, feeding speed under
position mode .
speed setting ranges: 300- 1200 (30-120mm/sec)
Factory setting data : 1000 (100mm/sec)
After bar length measuring, feeding fast speed
under position mode .
Note : for small diameter bar , recommended
speed not to be too high to avoid the impact at the
entrance of spindle liner .
speed setting ranges: 500- 6000 (50-600mm/sec)
Factory setting data : 5000 (500mm/sec)
