4. System Setup

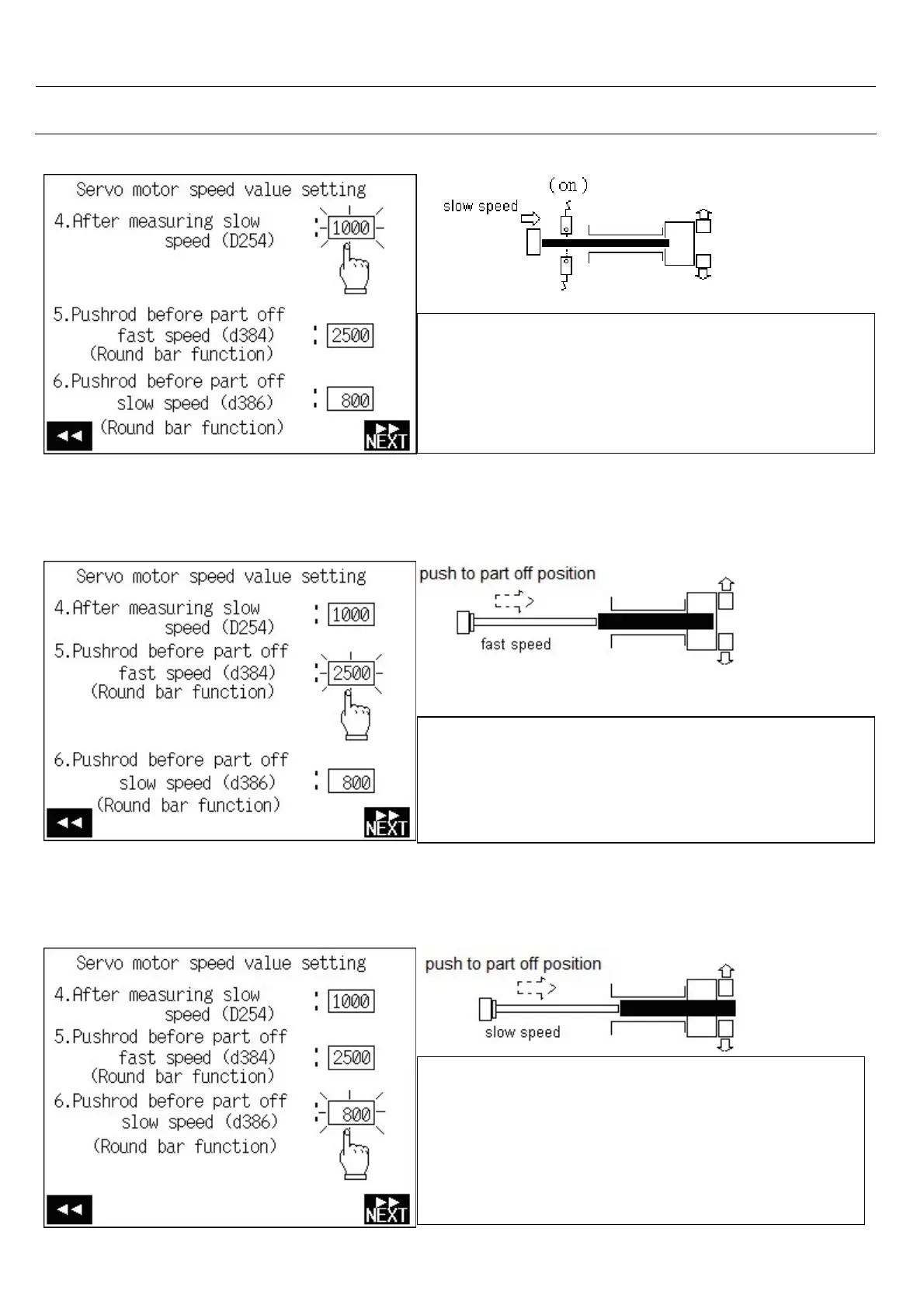

( 4 ) After measuring slow speed value setting
( 5 ) Pushrod before part off fast speed value setting(Round bar)
( 6 ) Pushrod before part off slow speed value setting(Round bar)
Slow speed setting at final feeding ( position mode )
speed setting ranges: 300- 2000 (30-200mm/sec)
Factory setting data : 1000 (100mm/sec)
Fast speed setting for push bar to part off position
( position mode )
speed setting ranges: 500- 3500 (50-350mm/sec)
Factory setting data : 2500 (250mm/sec)
Slow speed setting before reaching part off position
( position mode )
NOTE : Part off without turret , lower the speed to
avoid position error .
speed setting ranges: 300- 1200 (30-120mm/sec)
Factory setting data : 800 (80mm/sec)
