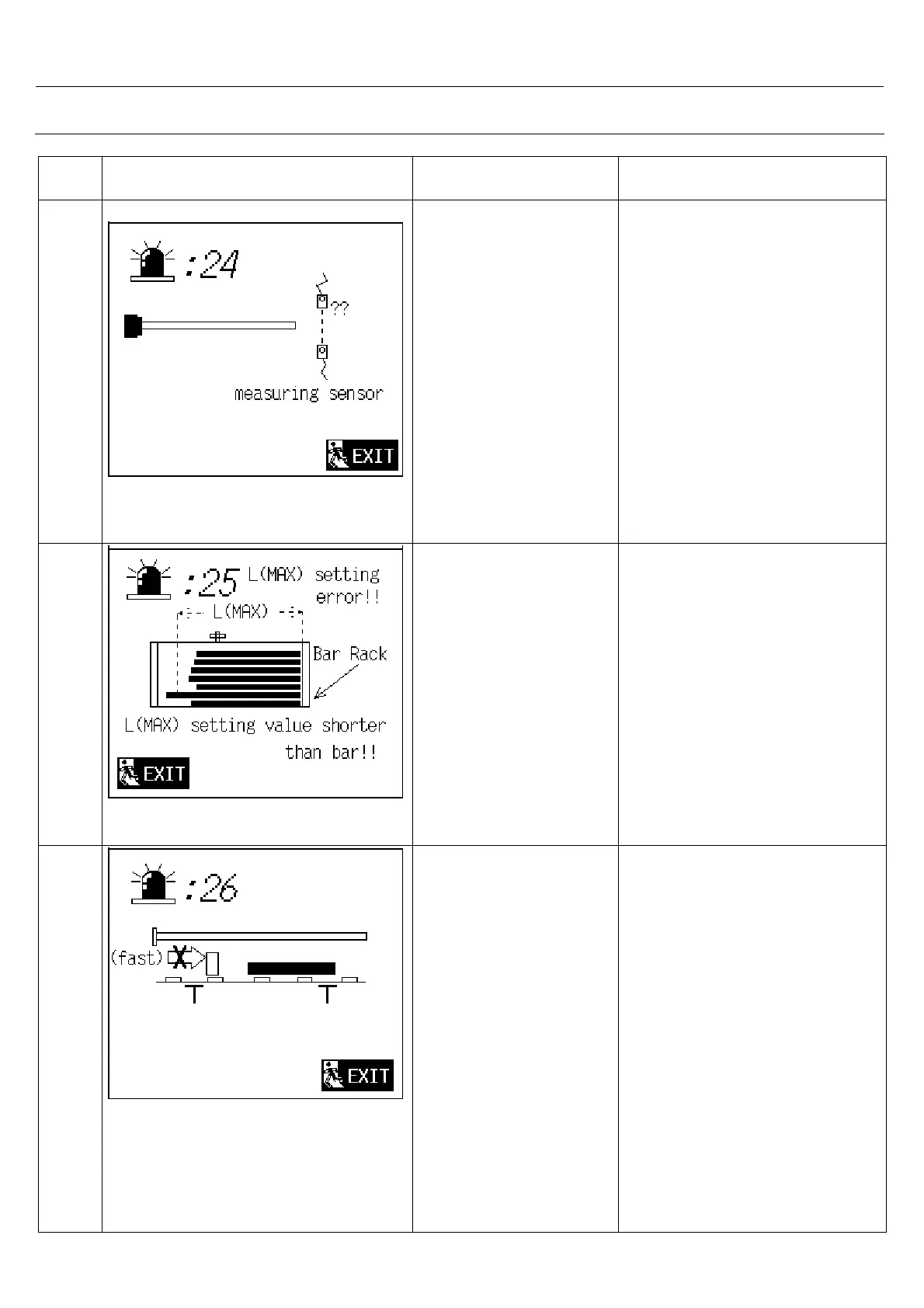

7. Alarm List
Alarm
No.
Alarm Picture Cause Action
24
Sensor detecting before bar stock
through measuring sensor position
-Grease on surface of
the sensor.
-Sensors not centring
-Cleanse the surface
-Adjust centring
See11-1 Mechanism
Drawing :
(1) Item 16:
Length measurement sensor
(Drawing NO : T21106-001X)
25
(1) Bar reached the bar
length measuring
sensor position
during high speed
movement of the
flag.
(2) L (MAX) setting
value too small.
(3) Bar not in front
position of bar rack.
(1) Check the longest bar
length on the rack and
reset the
L (MAX) value ( on 3.11.4 )
(2) Move the bars to front
position of the rack.
26
You can’t move the flag forward.
Pushing mechanism
has a problem.
Check gears and belt.
Because there is an overload.
See 11-1 Mechanism
Drawing: :
(4) Item2 : Servo motor
driving gear
(5) Item3 : Servo motor
driven gear
(Drawing NO : T04201-000X)
(6) Item12 : Belt T5 20mm
Drawing NO :
1.5M :T24203-001X
1.2M :T24203-002X
To Next Page
