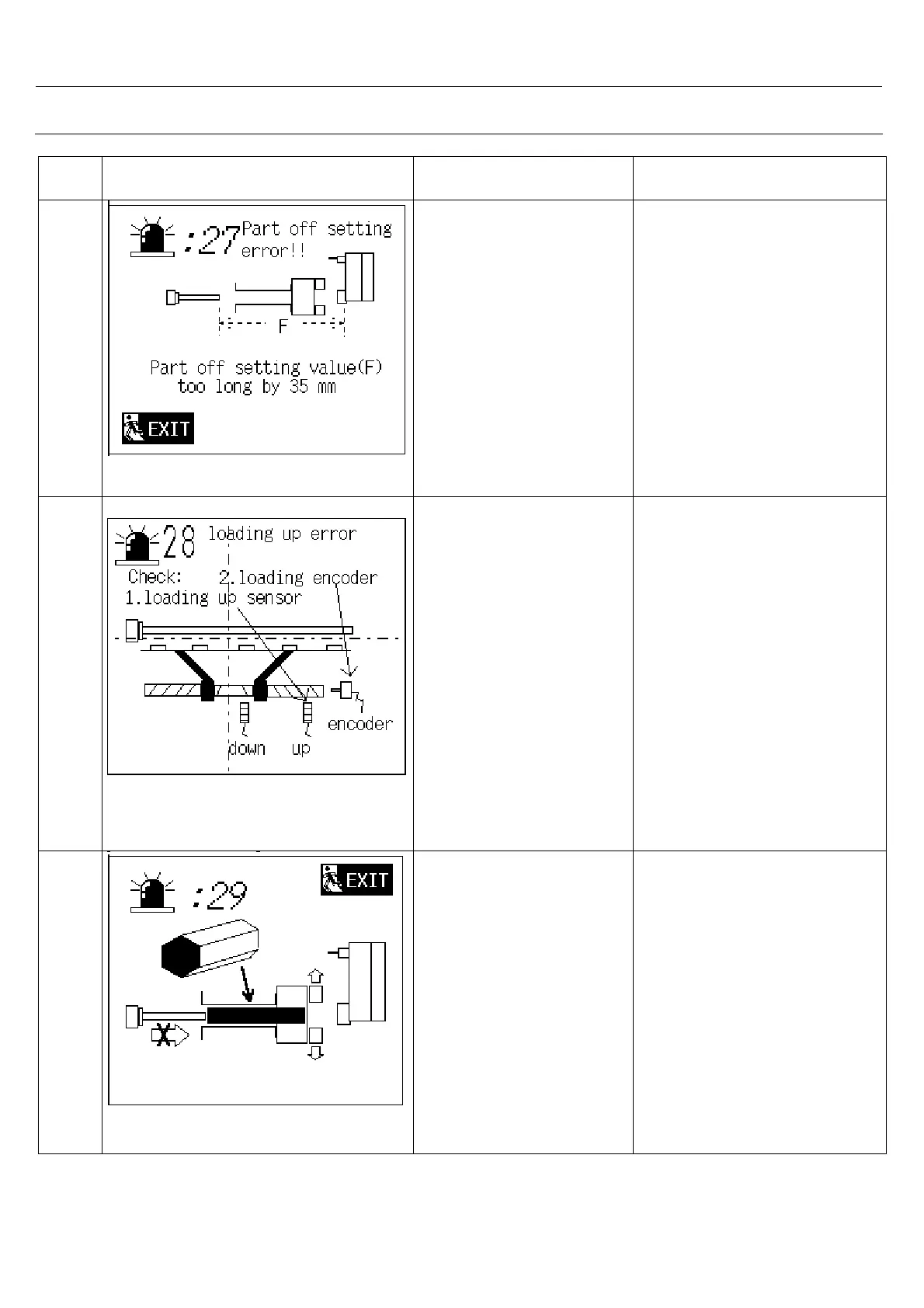

7. Alarm List
Alarm
No.
Alarm Picture Cause Action
27
Pushrod can not push
the
bar to part off position
Value F (3.4.2) is
difference with the
turret position.
Reset value F (3.4.2).
28
Loading up sensor or
loading encoder not
functioning.
Check the loading up
movement:
Yes: Check the locking
screw of
encoder(Item20)
See11-1 Mechanism
Drawing
(Drawing NO: T24403-000X)
No: (Item 1) loading up
sensor not functioning
See11-1 Mechanism
Drawing
(Drawing NO: T04402-000X)
29
Profile bar can not pass
through the chuck.
(1)Refer (3.2.1), increase the
number of trying.
(2) Slow rotation of spindle is
required
