7. Replace the center inlet check valve with a modied check valve
- Figure 5-3.
8. Apply O-ring grease to O-rings and install valves (Figure 5-4).
9. Replace valve cap and torque to 95 ft lbs see Figure 5-5).

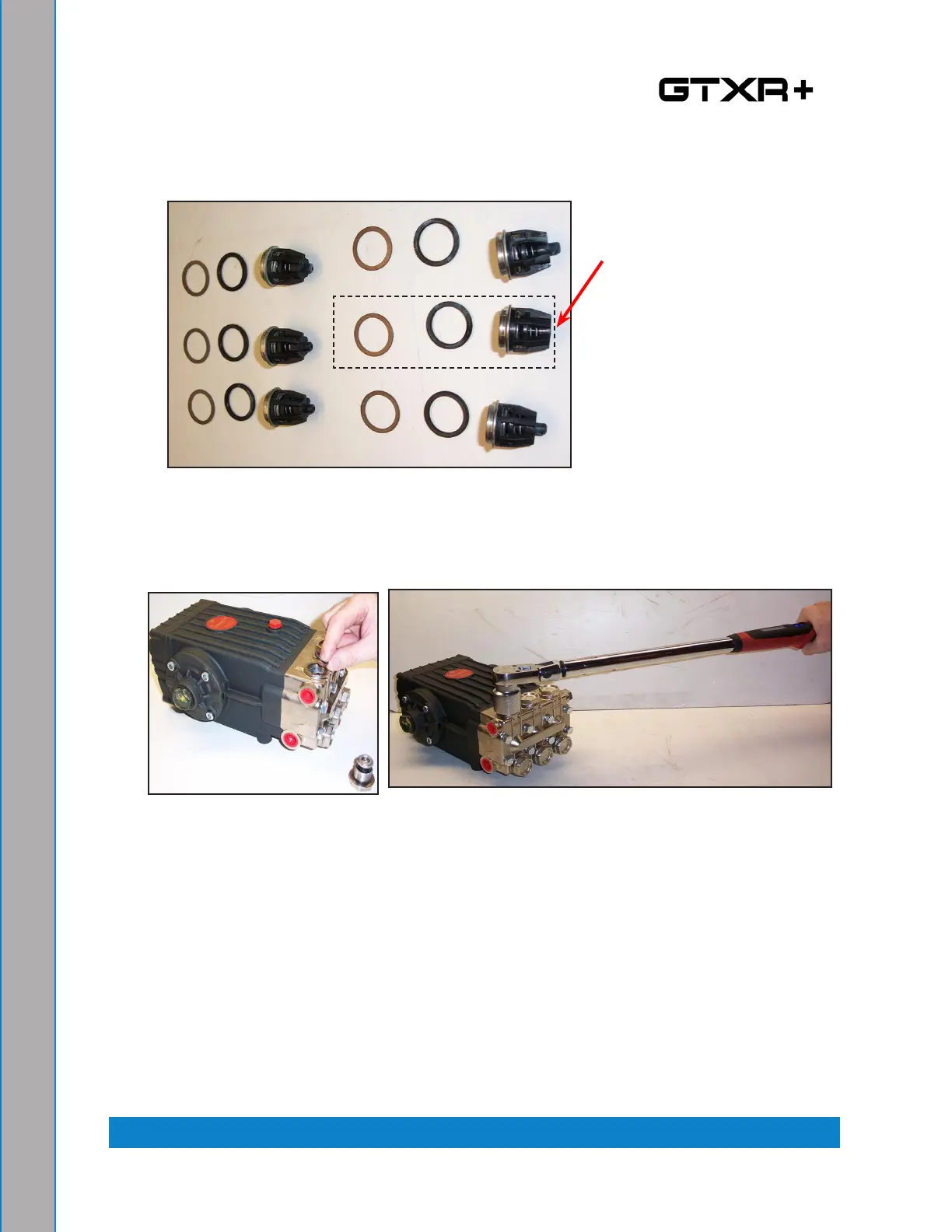

Figure 8-4. Apply Grease
and Install Valves
Figure 8-5. Replace Valve Cap
and Torque to 95 ft lbs
Figure 8-3. Replace Center Inlet Check Valve With Modied Check Valve
Modied Check Valve
