Machine Maintenance: 5-10
10. Remove the fasteners retaining the manifold
11. Separate manifold from crankcase (see Figure 5-6).
It may be necessary to rotate crankshaft or tap manifold with rawhide or plastic
mallet to loosen.
When sliding manifold from crankcase, use caution not to damage ceramic
plungers.
12. The seal assemblies may come off with the manifold (see Figure 5-7)
13. Examine the ceramic plungers. The surface should be
smooth and free from scoring, pitting or cracks (see
Figure 5-8); if not, replace.
14. Loosen the stainless steel plunger bolt.

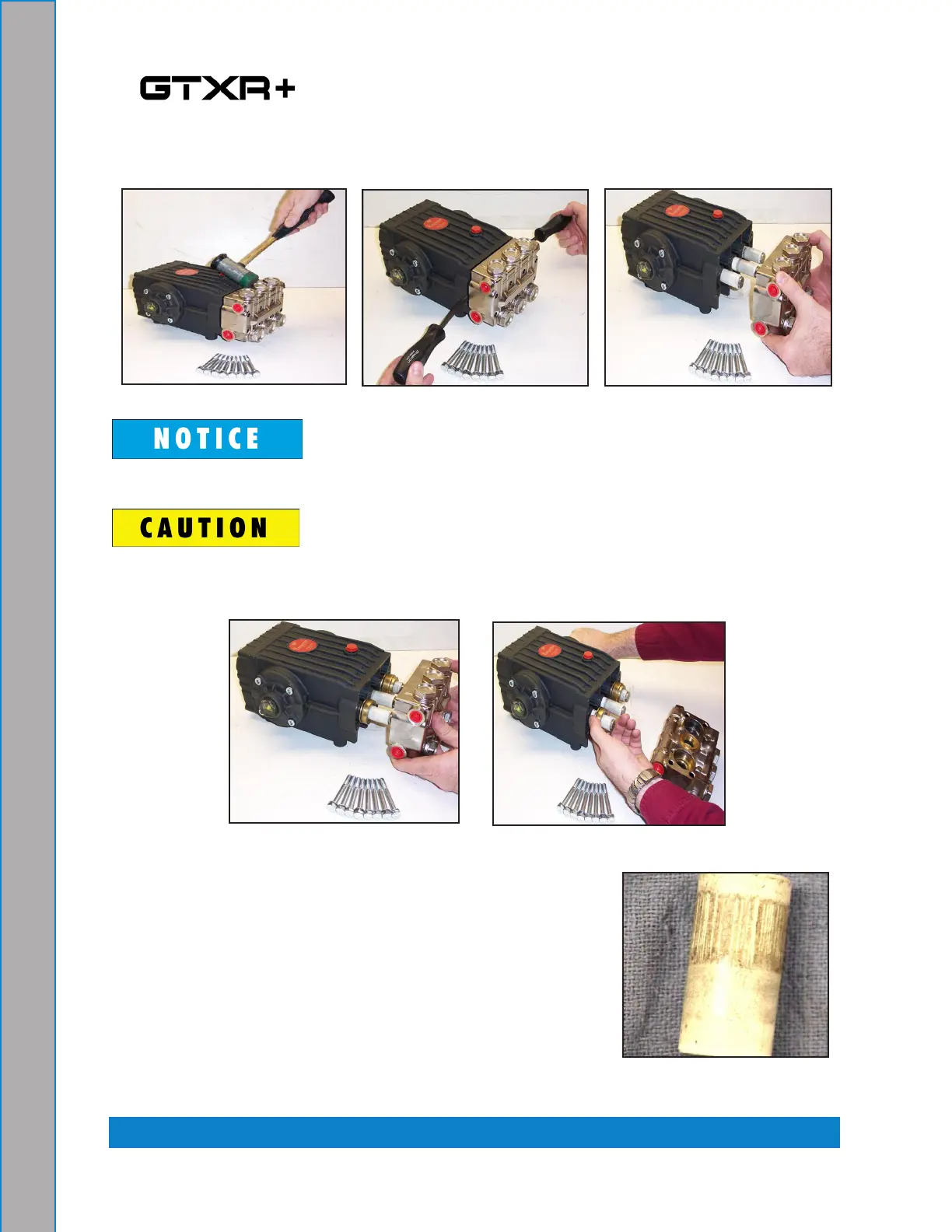

Figure 8-8. Examine
Ceramic Plungers
Figure 8-6. Separate Manifold from Crankcase
Figure 8-7. Seal Assemblies May Come Off with Manifold
