Hydthc CHC-1000S - Sensor Connection Interface

宏宇达数控 & 弘宇达智能
地址：深圳市南山区中山园路 1001 号 E4-6C（TCL 国际 E 城）
TEL：0755-26625800 FAX：0755-26729960 -11-
Fault
information
output
remark
A11
A14
A15
TIP TOUCH
High
---
---
Sensor and workpiece
short circuit
BODY TOUCH
High
High
---
Sensor body and
workpiece short circuit
NOZZLE LSOT
High
---
High
Nozzle electrode loss

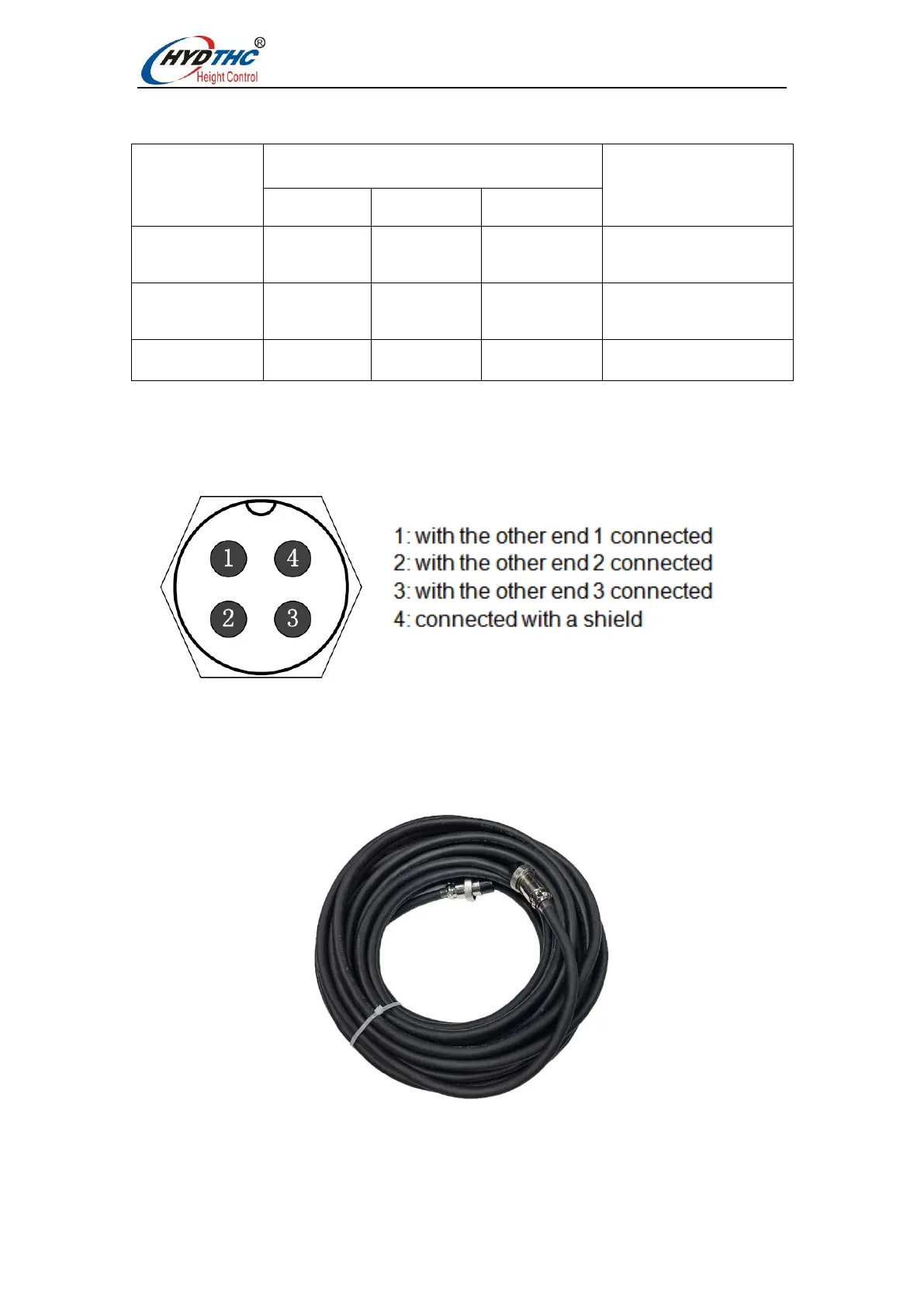

2.3.4 Sensor interface
Sensor 4-pin signal transmission cable, self-made with 3-pin shielded cable and 2 4-pin
air plugs. When making 1, 2, 3 pins are connected, and the 4th pin must be connected
with a shield.
