Hydthc CHC-1000S - Input and Output Interface Pinout

宏宇达数控 & 弘宇达智能
地址：深圳市南山区中山园路 1001 号 E4-6C（TCL 国际 E 城）
TEL：0755-26625800 FAX：0755-26729960 -9-
2.3.3 Input and output interface

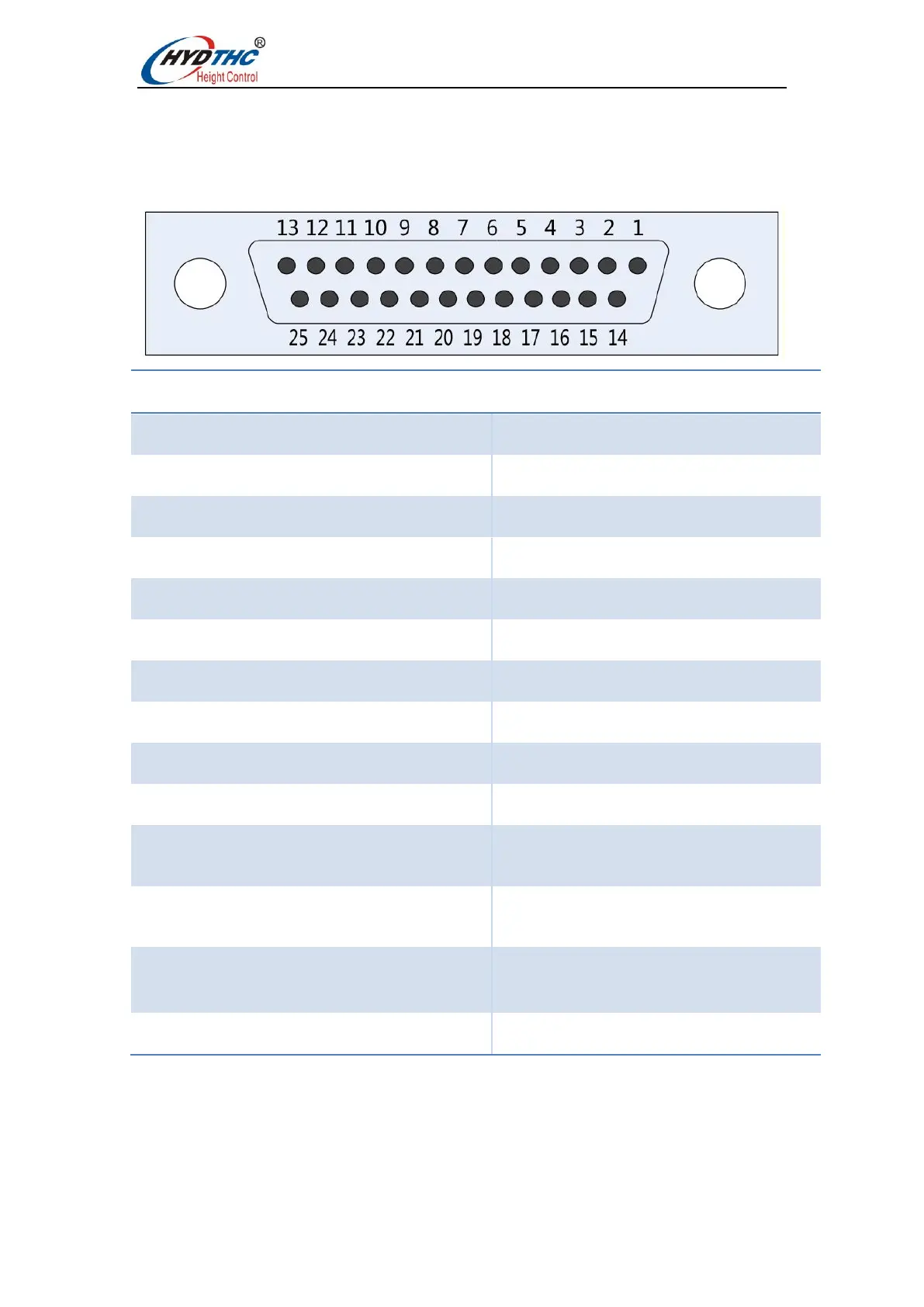

25-pin female input and output interface
pin
signal definition
pin
signal definition
1
24V (power input)
14
0V (GND)
2
OUT1(signal output)
15
IN1 (signal input)
3
OUT2(signal output)
16
IN2 (signal input)
4
OUT3(signal output)
17
IN3 (signal input)
5
OUT4(signal output)
18
IN4 (signal input)
6
OUT5 (signal output)
19
IN5 (signal input)
7
OUT6 (signal output)
20
IN6 (signal input)
8
(reserved interface)
21
IN7 (signal input)
9
(reserved interface)
22
IN8 (signal input)
10
CAN-H (CAN bus communication
interface)
23
CAN-L (CAN bus communication
interface)
11
AD+ (0-10V positive input interface)
24
AD- (0-10V negative input
interface)
12
DA+ (±10V positive output interface)
25
DA- (±10Vnegative output
interface)
13
0V (GND)
