3. Operation Introduce

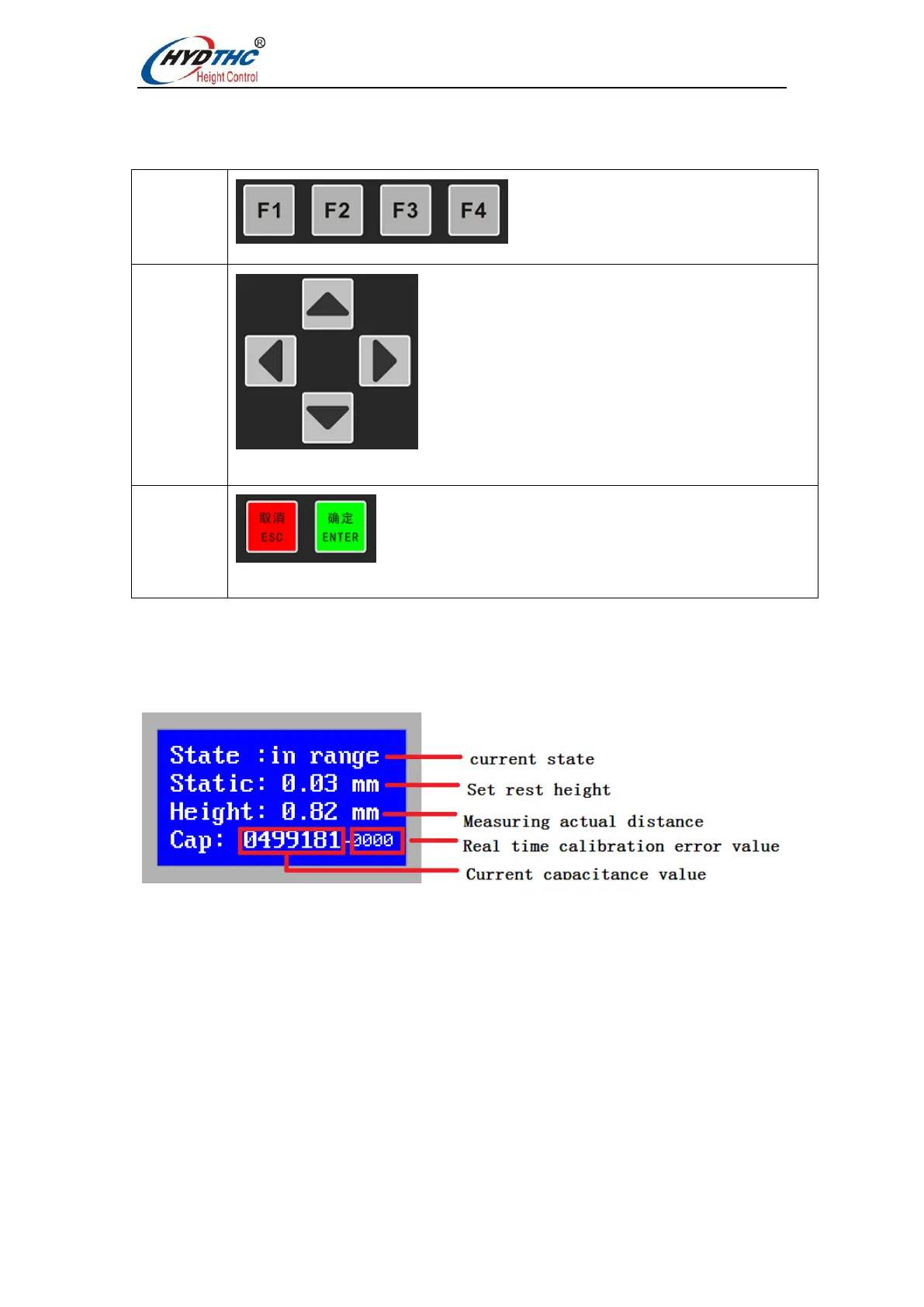

3.1 Keyboard introduction
Function
keys
：For the main menu selection
Direction
keys
：Adjust the selection items. And the increase or
decrease or decrease of data
Control
keys
： "ENTER" confirms the current operation, "ESC" exits the
current operation
3.2 Home page
After the system power-on initialization is completed, it will automatically enter the
[Main menu]. As shown below:
Main menu includes：
status:
The status of CHC-1000S is displayed. The status is as follows:
A. Nozzle collision: The sensor is shorted to the workpiece.
B. Within the measurement range: The sensor measurement distance is within the
effective measurement range.
C. Within the measurement range: The sensor measurement distance exceeds the
effective measurement range.
Adjustment：The static distance of the system is displayed. The static distance is
obtained by the signal input from the adjustment box (A16--A17). This data is only valid in
sensor control mode.
