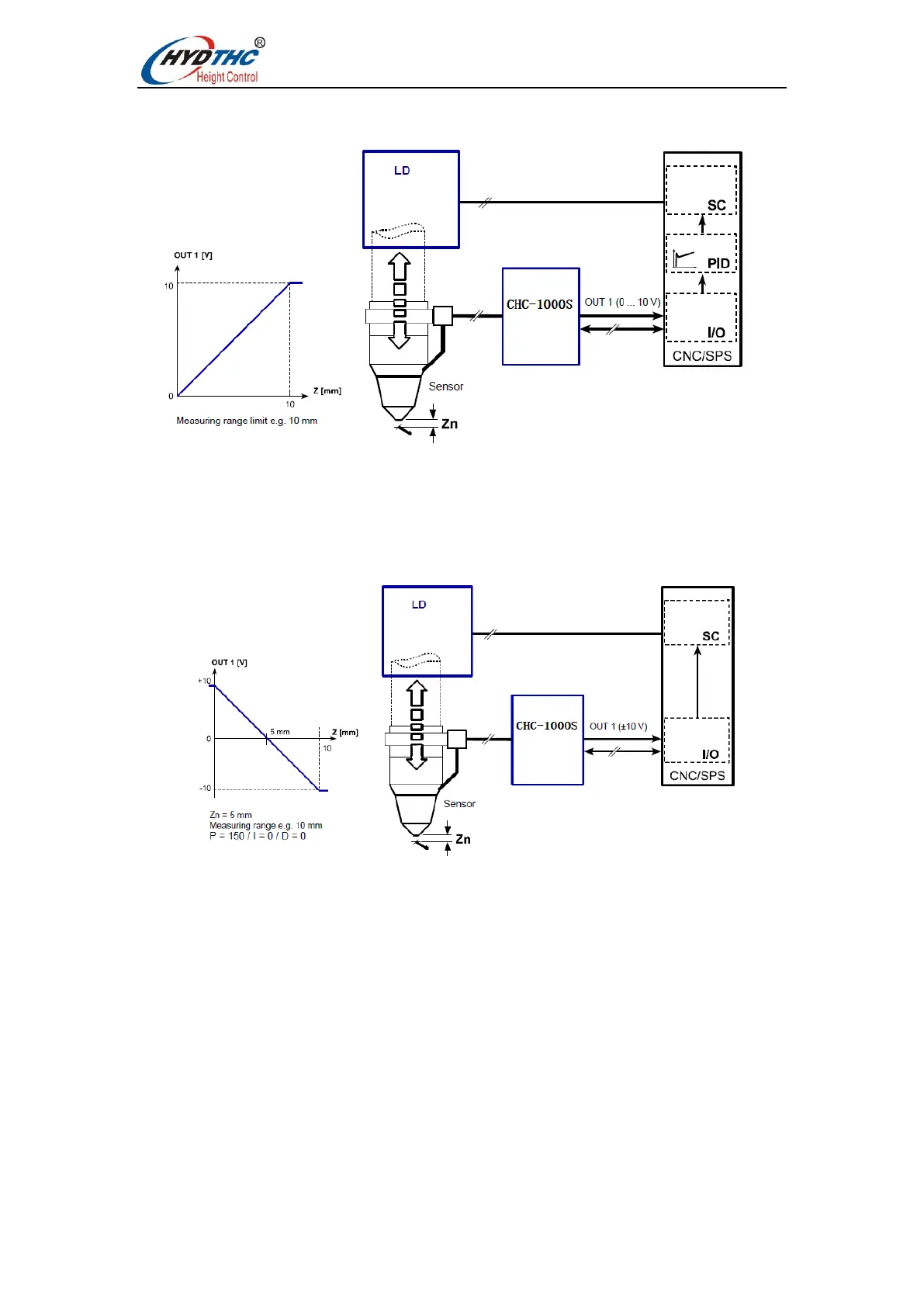

2.3.5 Application
The CHC-1000S is used as a distance measuring system, measuring range of 10
mm, output voltage of OUT = 0-10V.
The CHC-1000S is used as a sensor controller , the measurement range is 10 mm,
Zn=5 mm, ratio is adjusted, P=150, I=0, D=0.
The distance is between -5mm and +5mm, corresponding to the output voltage -10V
to +10V
