Hypertherm Command THC User Manual

HSD130 SETUP
CommandTHC for X-Y Table Instruction Manual 3j-3
11
Remove the rear panel from the HSD power supply.
B

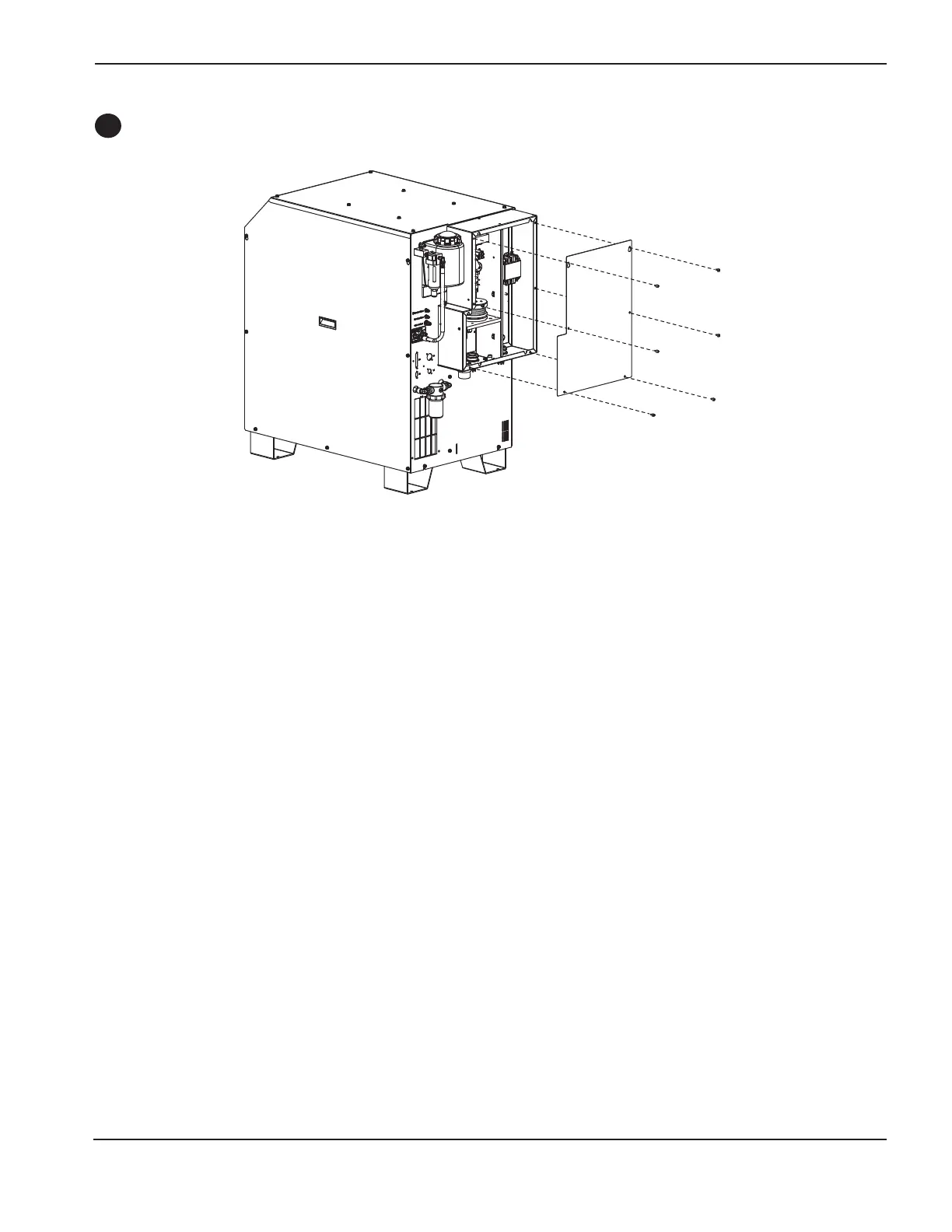

Figure 3j-2 Power supply
Arc voltage wires
Fabricate the wires as follows:
• Use 18AWG (0.9 mm
2
), single pair, unshielded wire, rated for 600V or greater.
• Wire length: As required, from the power supply to the plasma interface assembly.
• After determining the correct wire length from the power supply to the plasma interface assembly, install
appropriate size fork or ring terminals on the wire ends.
