Hypertherm Powermax125 User Manual

Powermax125 Operator Manual 808080 Revision 0 43
3 – Basic System Operations
Attach the work lead to the power supply
1. Insert the work lead connector into the receptacle on the front of the power supply.

The receptacle is keyed. Align the key on the work lead connector with the opening at the
top of the receptacle on the power supply.
2. Push the work lead connector all the way into the receptacle on the power supply and turn clockwise, approximately
1/4 turn, until the connector is fully seated against the stop in order to achieve an optimal electrical connection.

A loose connection will overheat the connector. Frequently check the work lead for a
reliable electrical connection.
CAUTION!
Make sure you use a work lead that is appropriate for your power supply. Use a 125 A work lead with
the Powermax125. The amperage is marked near the rubber boot of the work lead connector.
CAUTION!
Make sure the work lead is fully seated in the receptacle to prevent overheating.

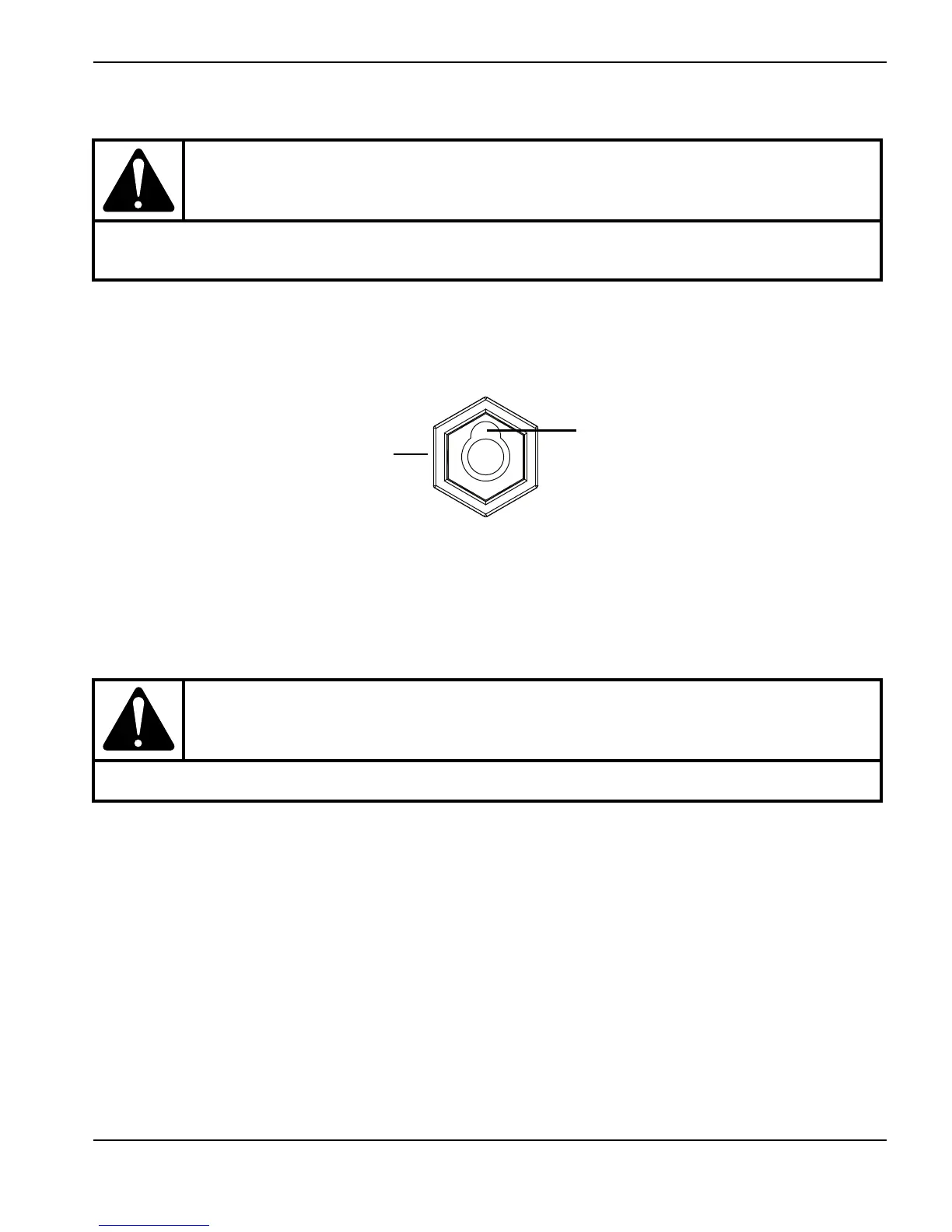

Work lead receptacle
on power supply
Keyed opening at
top of receptacle
