Section 7
Mechanized Cutting
Connecting an optional remote-start pendant
Powermax125 configurations with a Duramax Hyamp machine torch can include an optional remote-start pendant.
 Part number 128650: 7.6 m (25 feet)
 Part number 128651: 15 m (50 feet)
 Part number 128652: 23 m (75 feet)
Remove the machine interface receptacle cover on the rear of the power supply, and plug the Hypertherm remote-start
pendant into the receptacle.

The remote-start pendant is for use only with a machine torch. It will not operate if a
handheld torch is installed.

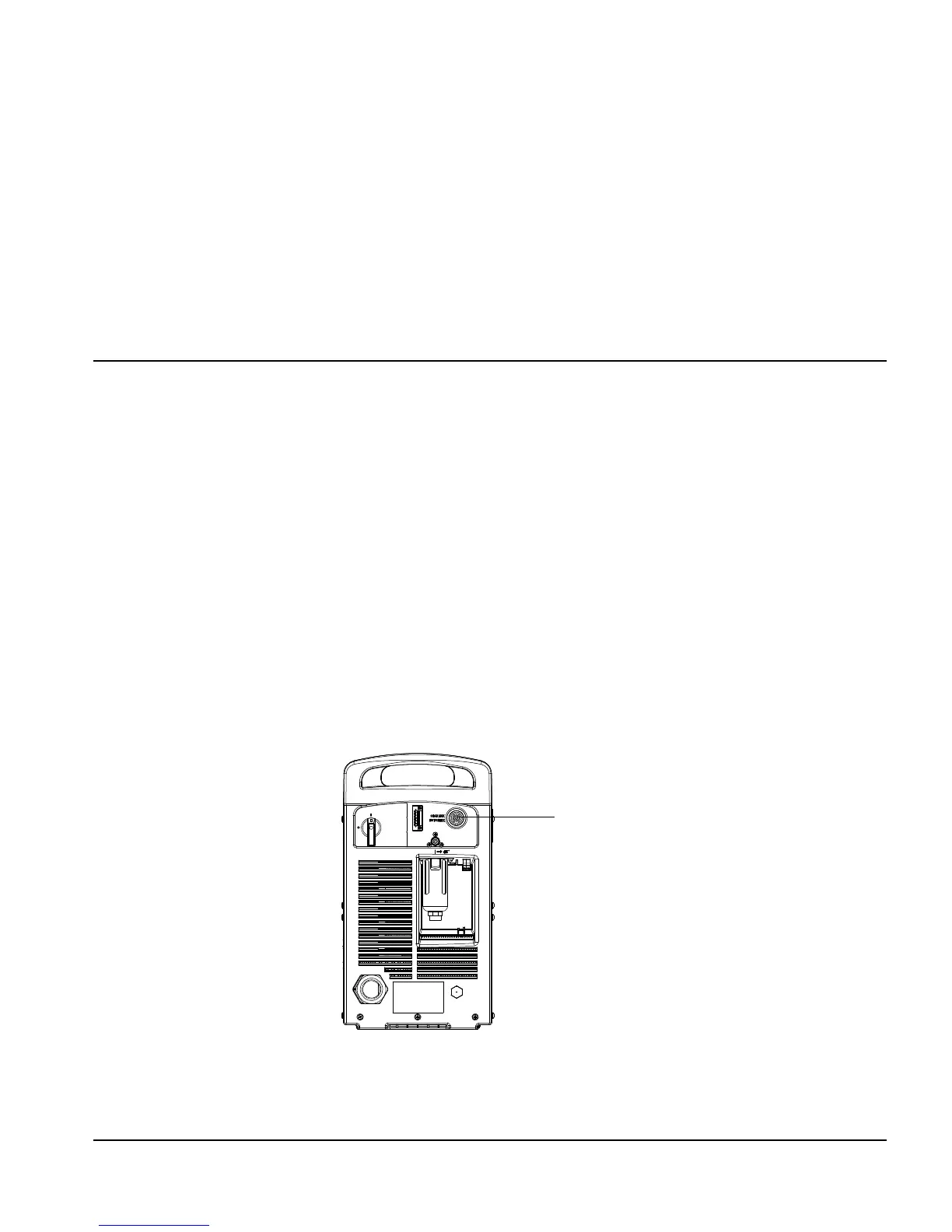

Receptacle for the remote-start
pendant or a machine interface cable.
