66 Powermax125 Operator Manual 808080 Revision 0
6 – Machine Torch Setup

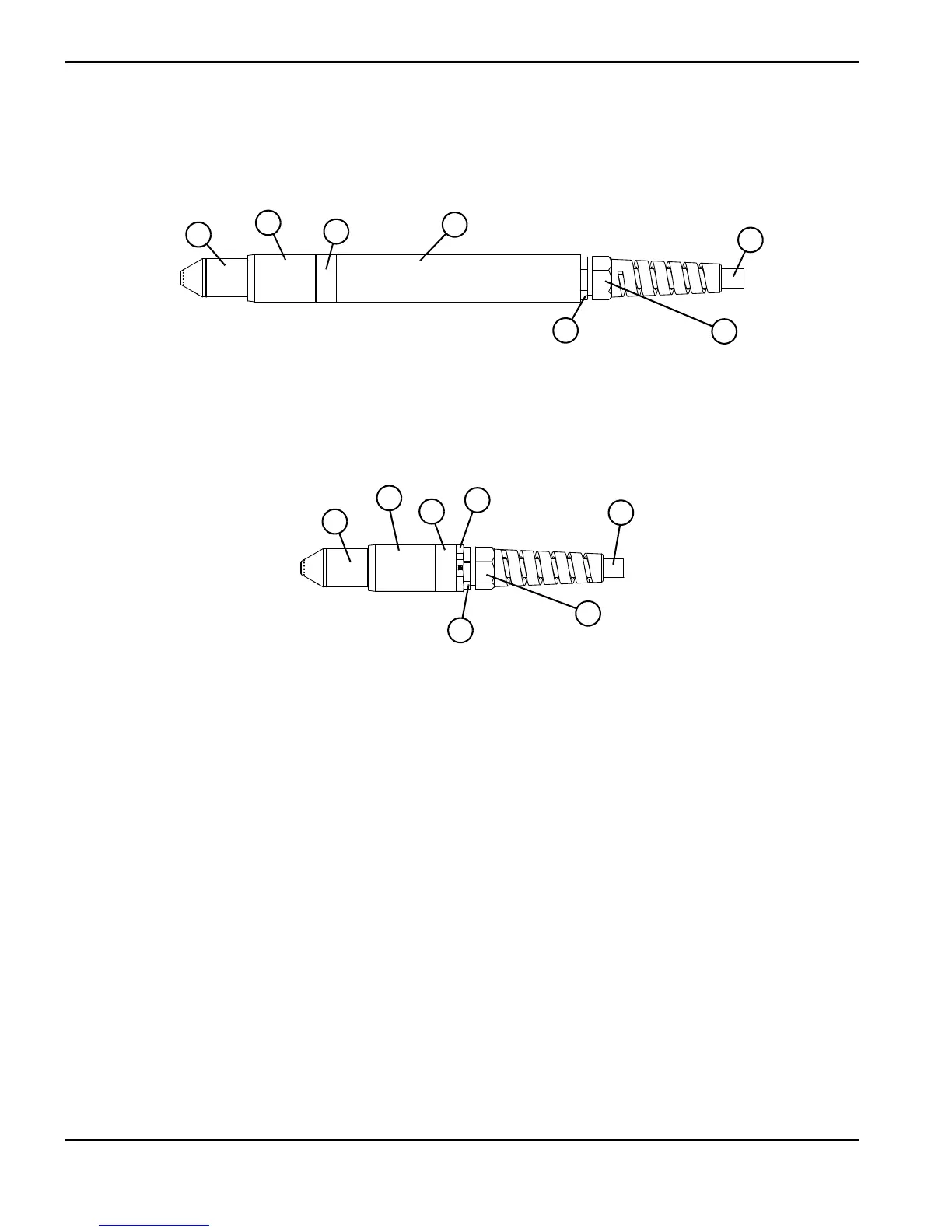

Machine torch components
Duramax Hyamp 180° machine torch
See the following callout table.
Duramax Hyamp 180° mini machine torch
Before using either style of machine torch, you must:
 Mount the torch on your cutting table or other equipment.
 Choose and install the consumables.
 Align the torch square to the plate.
 Attach the torch lead to the power supply.
 Set up the power supply for remote starting with either the remote-start pendant or a machine interface cable.
1
2
3
4
6
8
7
1
4
5
8
3
7
2
1 Consumables
2 Strain relief
3 Strain relief nut
4 Torch lead
5 Adapter (not used in the full-length machine torch)
6 Positioning sleeve (not used in the mini machine
torch)
7 Coupler
8 Mounting sleeve
