52 Powermax125 Operator Manual 808080 Revision 0
4 – Hand Torch Setup

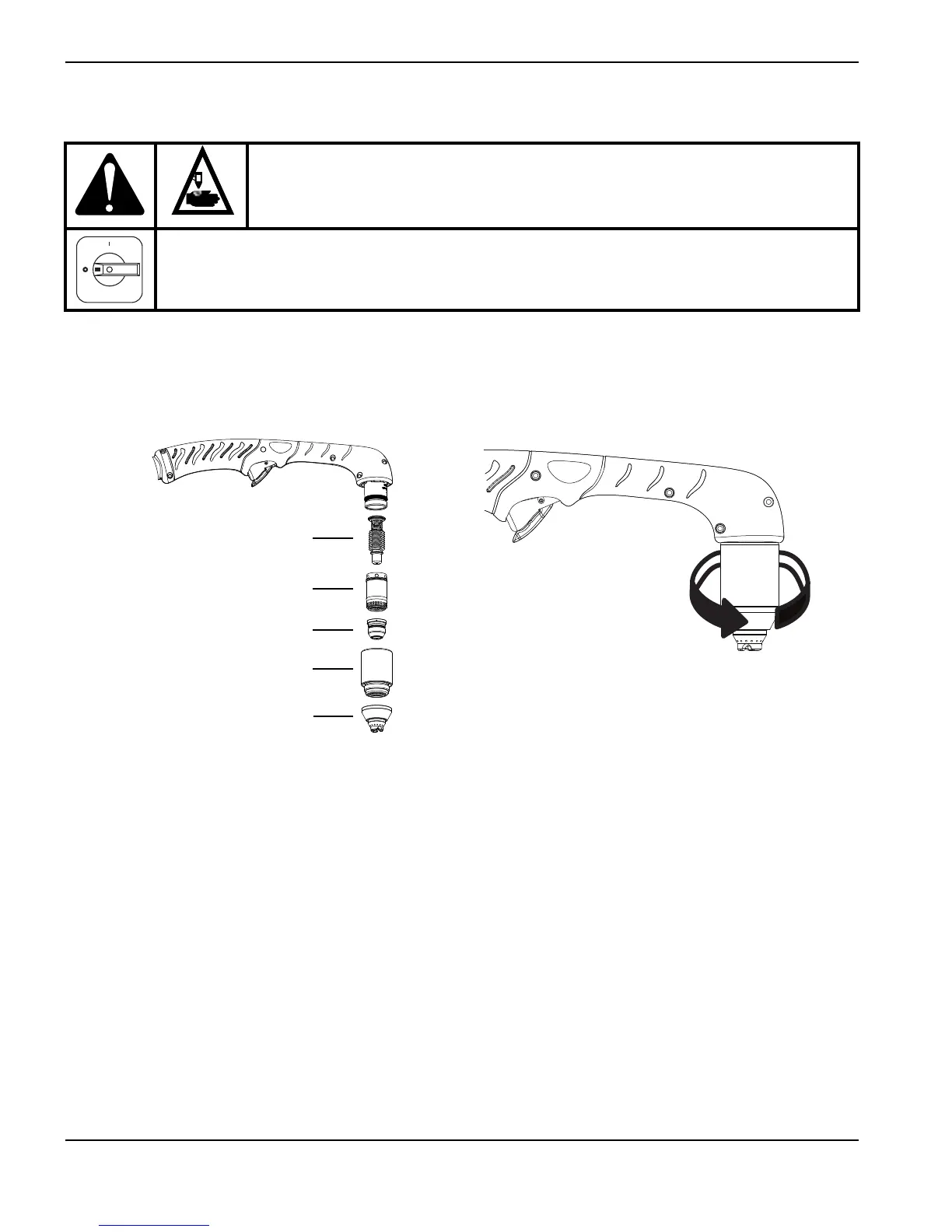

Install the hand torch consumables
To operate the hand torch, a complete set of consumable parts must be installed: shield, retaining cap, nozzle, electrode,
and swirl ring. Torches ship without consumables installed. Pull off the vinyl cap before installing your consumables.
With the power switch in the OFF (O) position, install the Powermax125 torch consumables as shown.
WARNING!
INSTANT-ON TORCHES
PLASMA ARC CAN CAUSE INJURY AND BURNS
The plasma arc comes on immediately when the torch trigger is activated. Make sure the
power is OFF before changing consumables.
Shield
Retaining cap
Nozzle
Electrode
Swirl ring
