TORCH SETUP

3-4 powermax

Operator Manual

220674

Shield

220713

Retaining cap

220671

Nozzle

220670

Swirl ring

220669

Electrode

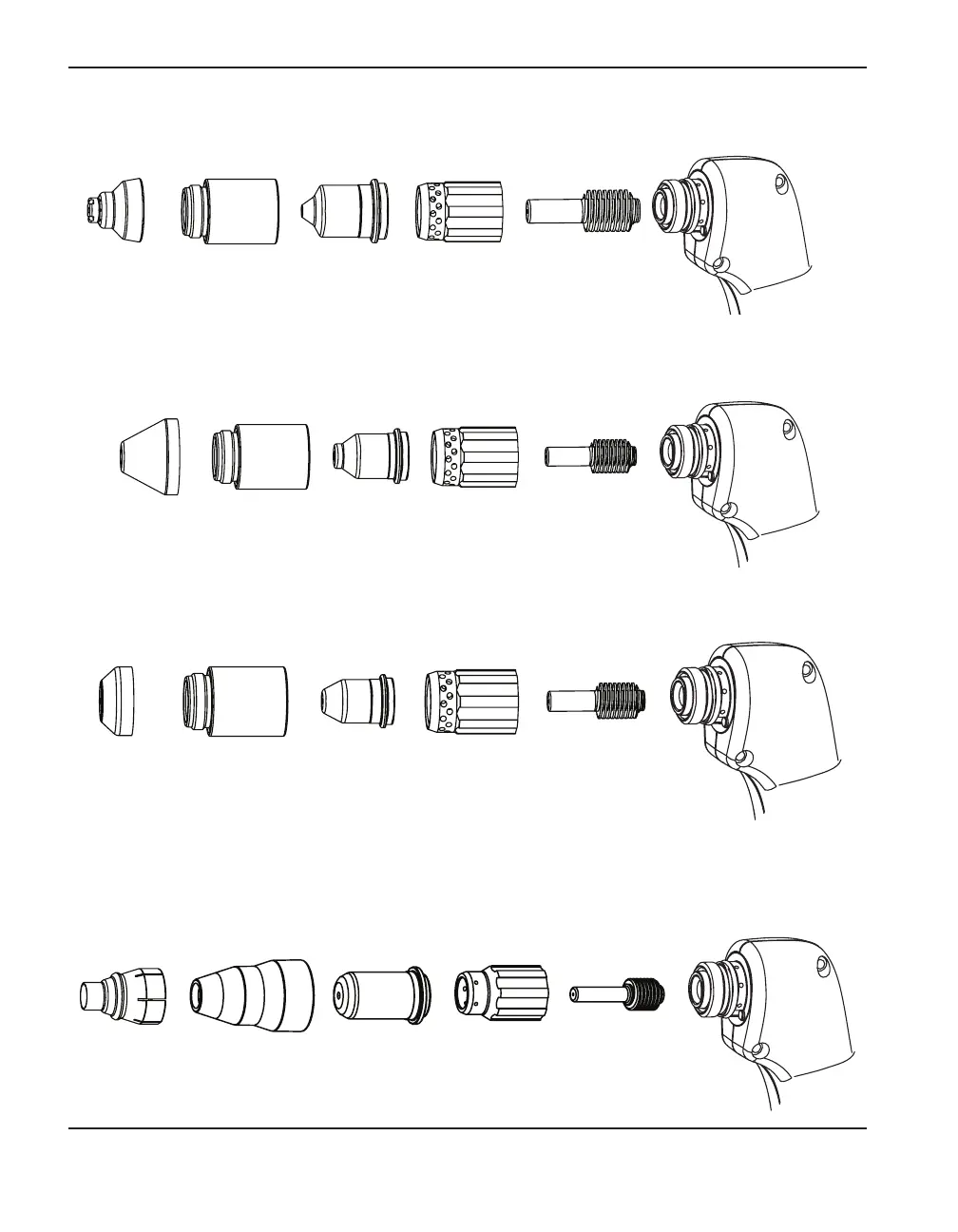

T45v shielded consumables

T45v gouging consumables

220713

Retaining cap

220670

Swirl ring

220669

Electrode

220675

Shield

220672

Nozzle

T45v unshielded consumables*

220713

Retaining cap

220670

Swirl ring

220669

Electrode

220717

Deflector

220718

Nozzle

* Unshielded consumables are not available for use in CE-regulated countries.

220483

Retaining cap

220478

Electrode

220479

Swirl ring

220569

Optional

deflector

T30v (Powermax30) 30 A consumables

220480

Nozzle
