OPERATION
powermax
45
Operator Manual  4-9
Hand torch cutting hints
•  With shielded consumables, drag the nozzle lightly along the workpiece to maintain a steady 
cut. With unshielded consumables, maintain an approximate .08-inch (2 mm) distance 
between the tip of the torch and the workpiece. (This is between a 1/16th and 1/8th of an 
inch).
•  While cutting, make sure that sparks exit from the bottom of the workpiece. The sparks should 
lag slightly behind the torch as you cut (15° — 30° angle from vertical).
•  If sparks spray up from the workpiece, move the torch more slowly, or set the output current 
higher.
•  If you fire the torch unnecessarily, you will shorten 
the life of the nozzle and electrode.
•  Pulling, or dragging,  the torch along the cut is 
easier than pushing it.
•  For straight-line cuts, use a straight edge as 
a guide. To cut circles, use a template or a 
radius cutter attachment (a circle cutting guide). 
See Section 6, Parts, for part numbers for the 
Hypertherm plasma cutting guides for cutting 
circles and making bevel cuts.

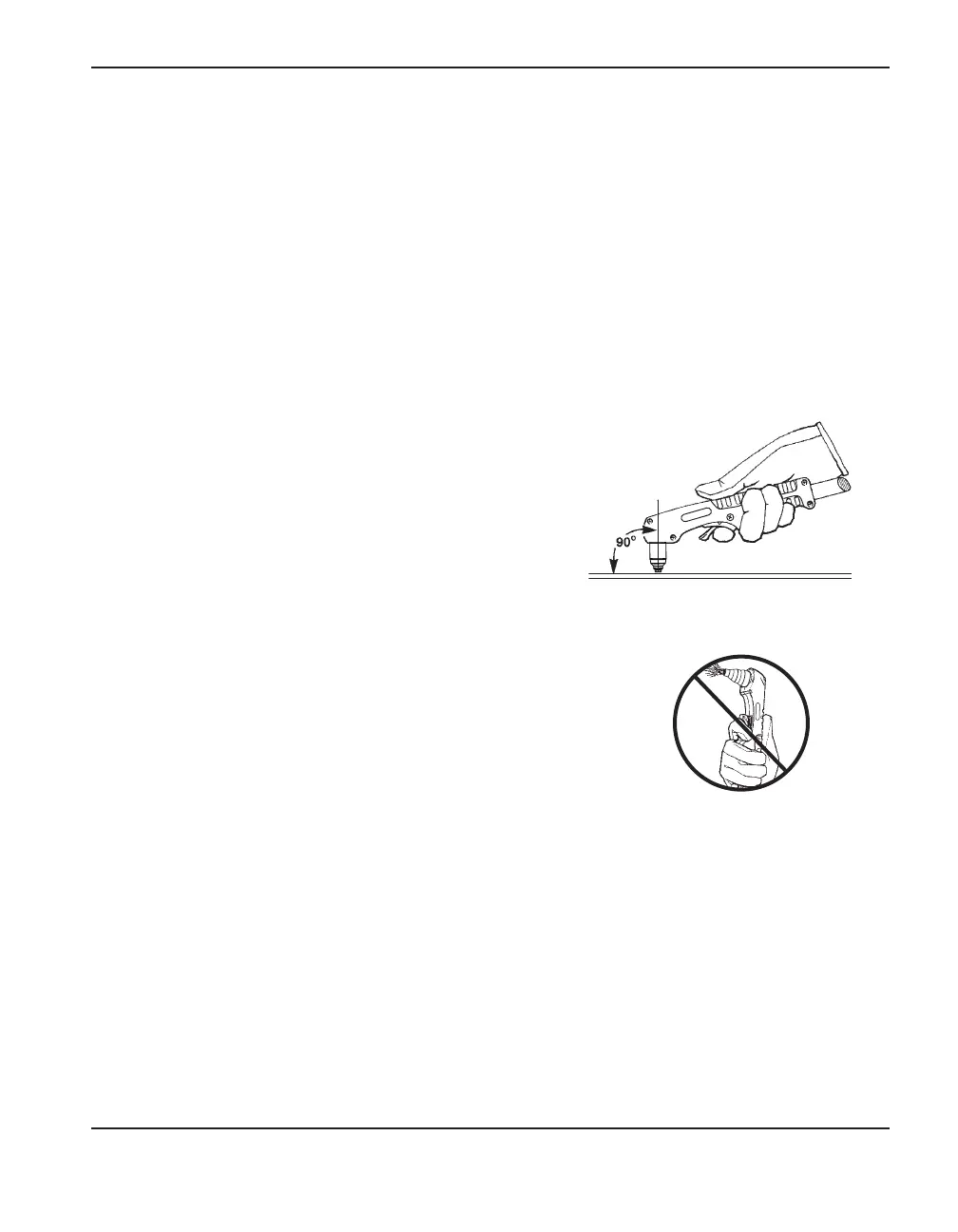

•  Hold the torch nozzle perpendicular to the 
workpiece so that the nozzle is at a 90°angle to the 
cutting surface and watch the arc as it cuts along 
the line.
