TORCH SETUP
powermax 45 Operator Manual 3-5

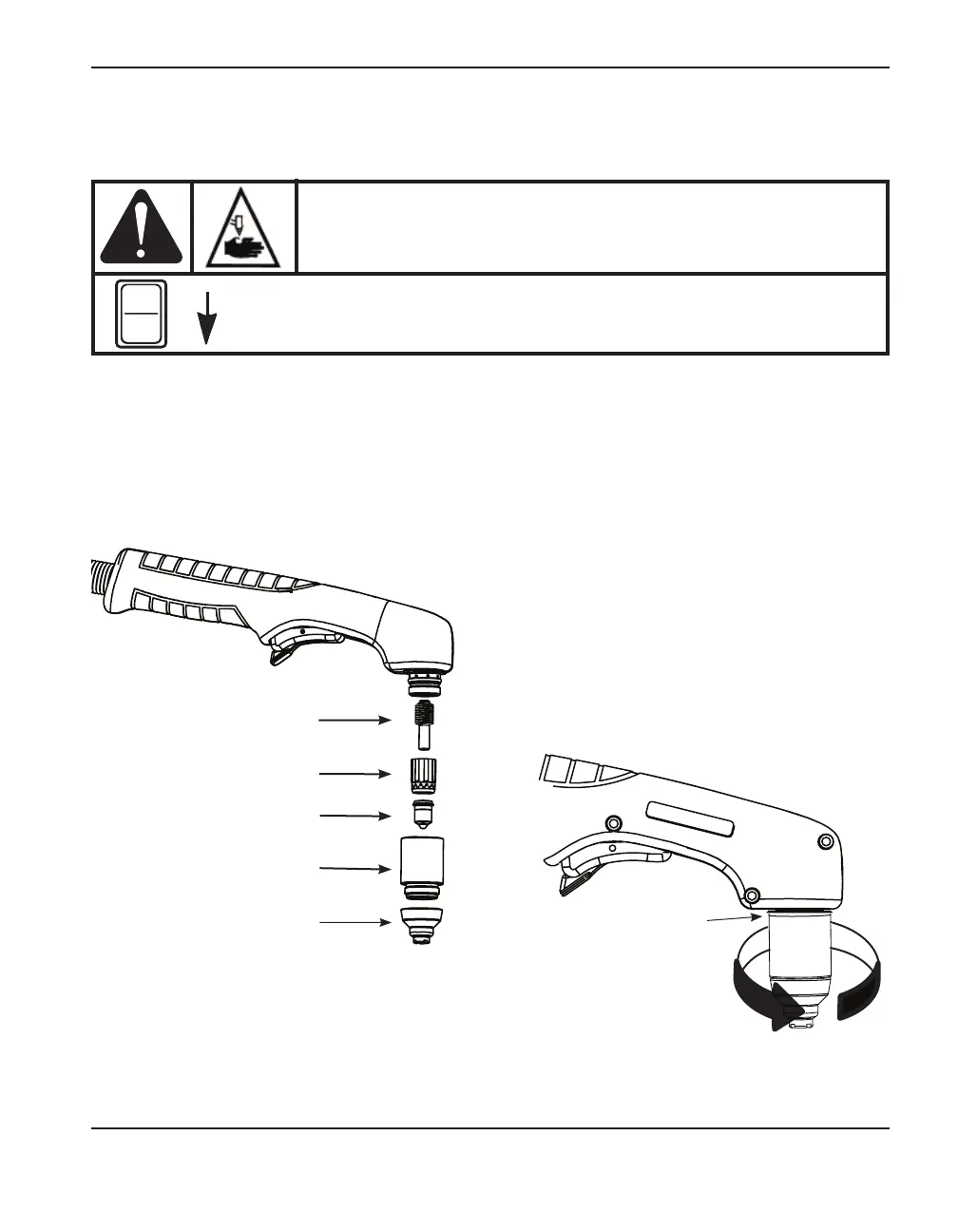

Install the consumables
To operate the T45v torch, it must have a complete set of consumable parts installed: a shield or
deflector, retaining cap, nozzle, swirl ring and electrode.
With the power switch in the OFF (O) position, verify that the torch consumables are installed
asshown.
Retaining cap
Nozzle
Electrode
Swirl ring
Note: Tighten only to finger-tight. Overtightening will cause
the torch to misfire.
Shield or deflector
There should be a small gap
between the consumables
and the torch handle. Air will
blow out from this gap during
normal operation.
WARNING
INSTANT-ON TORCHES
PLASMA ARC CAN CAUSE INJURY AND BURNS
The plasma arc comes on im me di ate ly when the torch is activated.
Make sure the power is OFF before changing the consumables.
I
O
