Cut with the Hand Torch
102 810470 Operator Manual Powermax65/85/105 SYNC

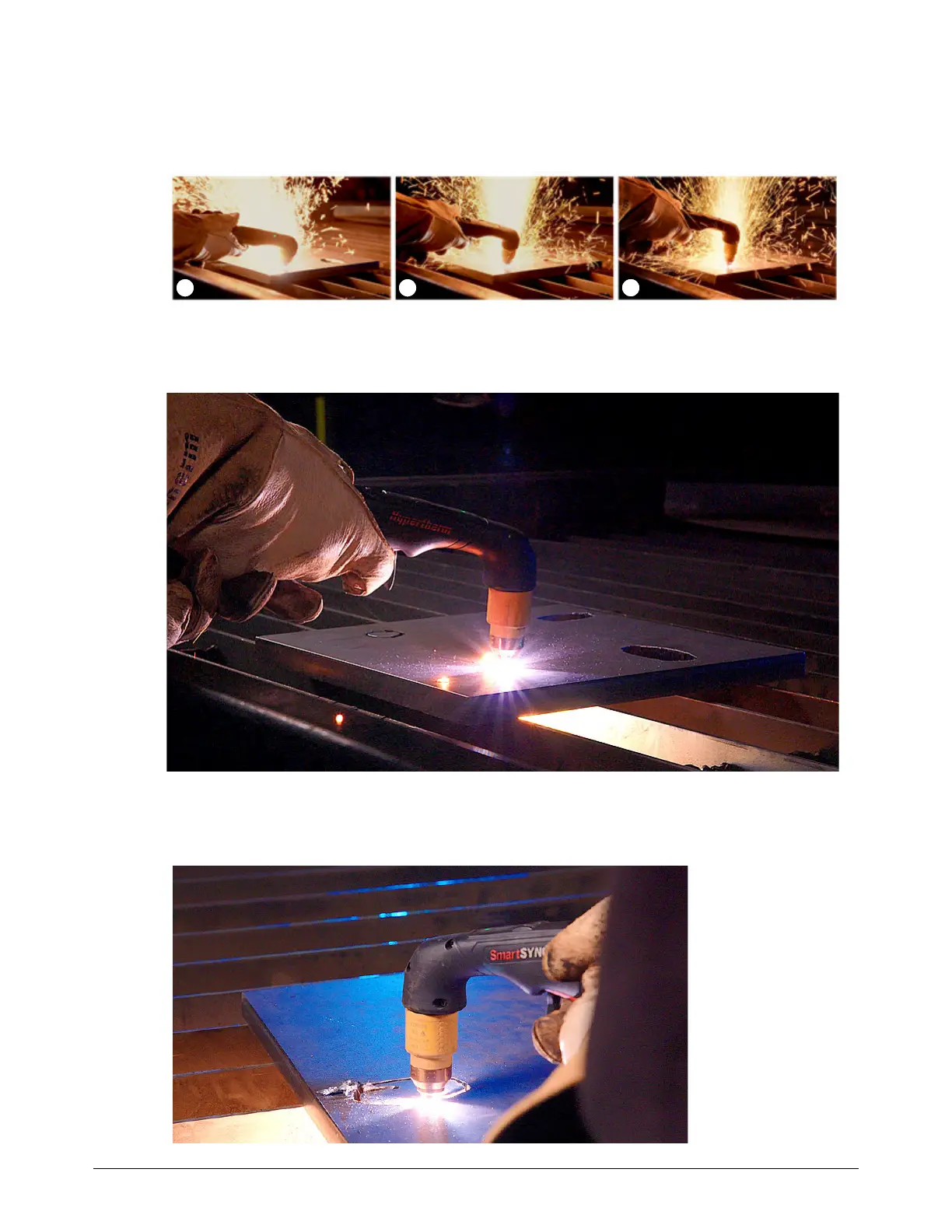

3. Straight pierce: Pull the torch trigger to start the arc.
Rolling pierce: Pull the torch trigger to start the arc while still at an angle to the workpiece, then
move the torch up to the perpendicular (90°) position.
4. Hold the torch in position while continuing to pull the trigger. When sparks go out below the
workpiece, the arc has pierced the material.
5. When the pierce is complete, drag the torch tip lightly across the workpiece to continue with the
cut.
