Operate the Plasma System
Powermax65/85/105 SYNC Operator Manual 810470 93

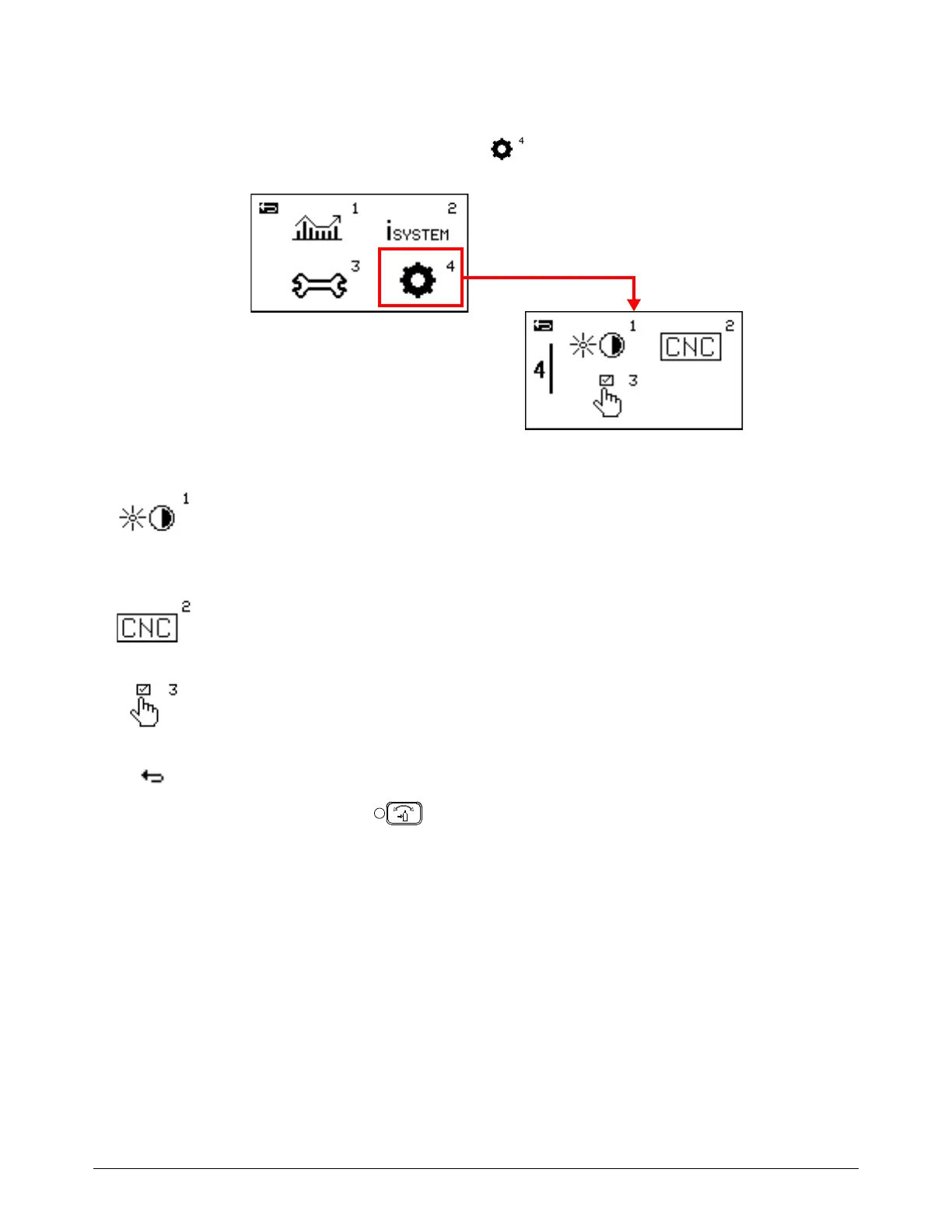

System Settings submenu
To go to the System Settings submenu, select on the main menu screen.
Brightness and contrast – Select this icon to adjust the brightness and contrast of
the LCD screen or to show cartridge data on the status screen. Refer to Adjust
brightness and contrast on page 84 or Show cartridge data on the status
screen on page 80.
CNC interface settings – Select this icon to see the node address given to this
Powermax plasma power supply (if applicable). Refer to CNC Interface Settings
screen on page 164.
System configuration settings – Select this icon to set system features to on or off,
such as the low gas pressure detection feature. Refer to Adjust system settings
on the Feature Configuration screen on page 149.
Back – Select this icon to go back to the main menu screen.
Tip: Push the button to immediately go back to the status screen.
