Torch PCB Information screen

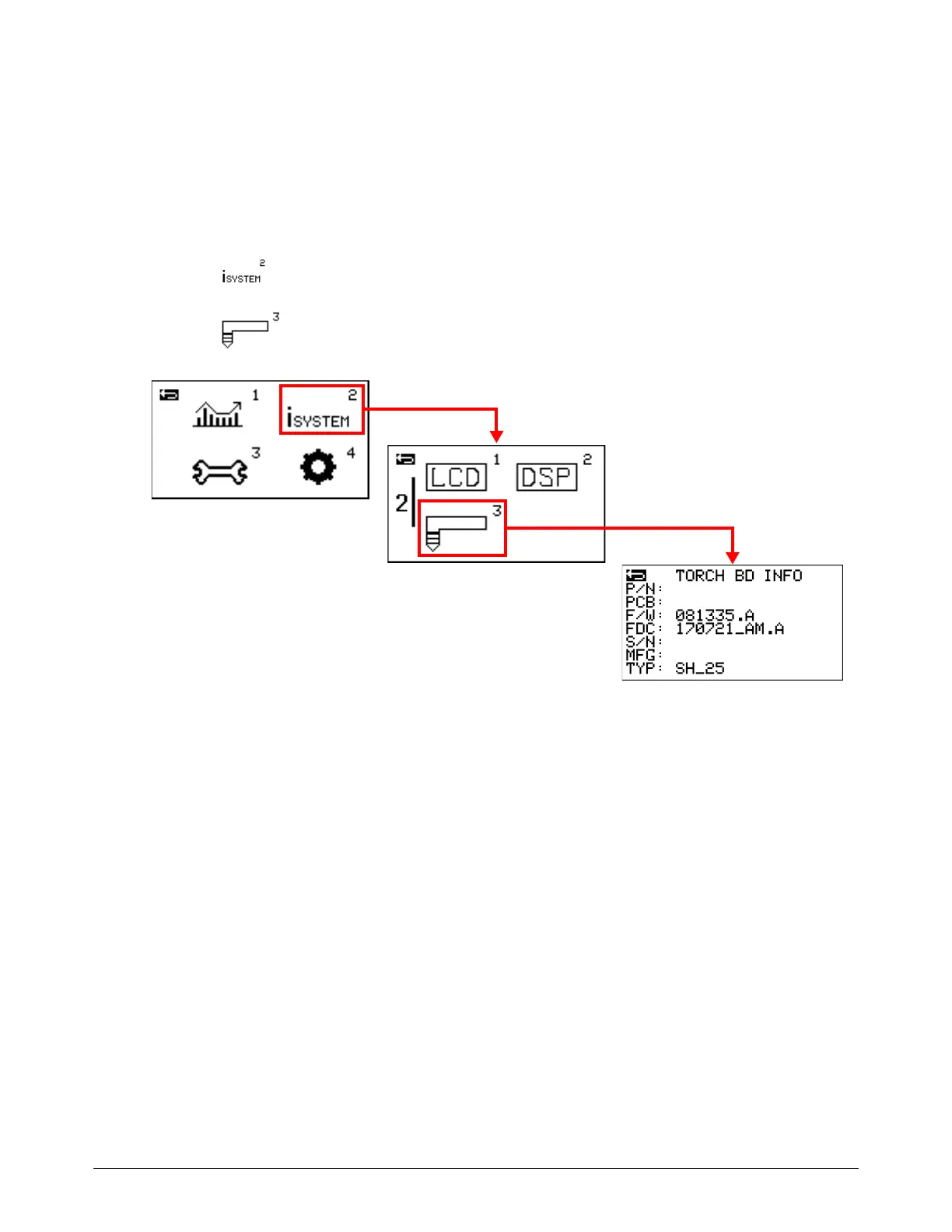

Go to the Torch PCB Information screen (TORCH BD INFO) to see service-related information
about the SmartSYNC torch that is connected to the plasma power supply. The technical
information on this screen is for qualified service technicians to refer to when troubleshooting.
The plasma power supply cannot show torch information for a non-SmartSYNC torch.
1. Select on the main menu screen.
2. Select to go to the TORCH BD INFO screen.
TYP – This field shows the torch type followed by the length of the torch lead in feet.
 SH = SmartSYNC hand torch
 SM = SmartSYNC machine torch
 BH = Hand torch, and the plasma power supply is in basic mode. Refer to
page 151.
 BM = Machine torch, and the plasma power supply is in basic mode. Refer to
page 151.
