Operate the Plasma System
64 810470 Operator Manual Powermax65/85/105 SYNC
Step 1 – Connect the torch lead
Always set the power
switch on the plasma
power supply to OFF (O)
before you connect or
disconnect a torch.

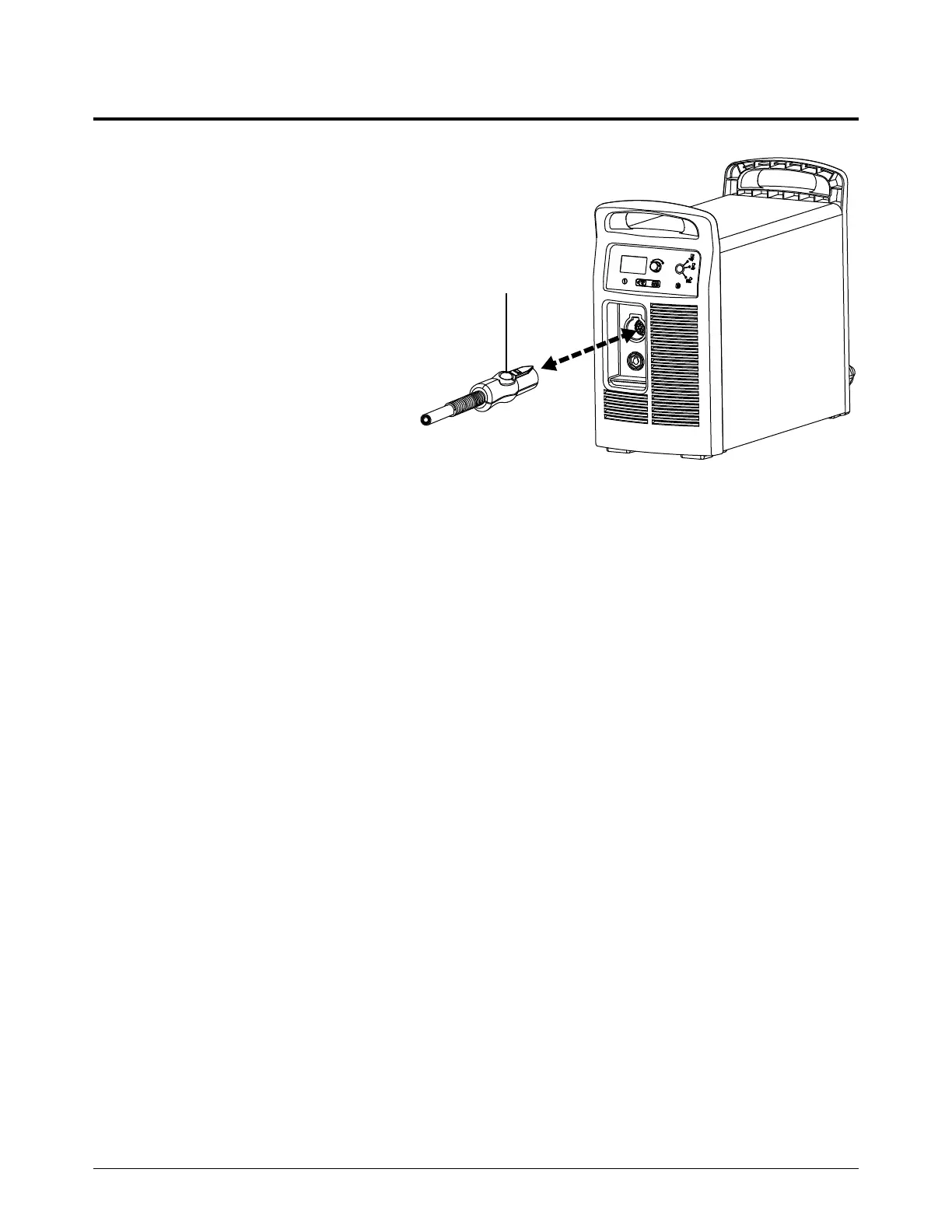

To connect a hand torch
or machine torch, push
the connector into the
receptacle on the front of
the plasma power supply.
The connector makes a
click when it is fully
engaged.
To disconnect the torch,
push the red button on
the connector and pull
the connector out of the receptacle.
