26
9. PIO Connector

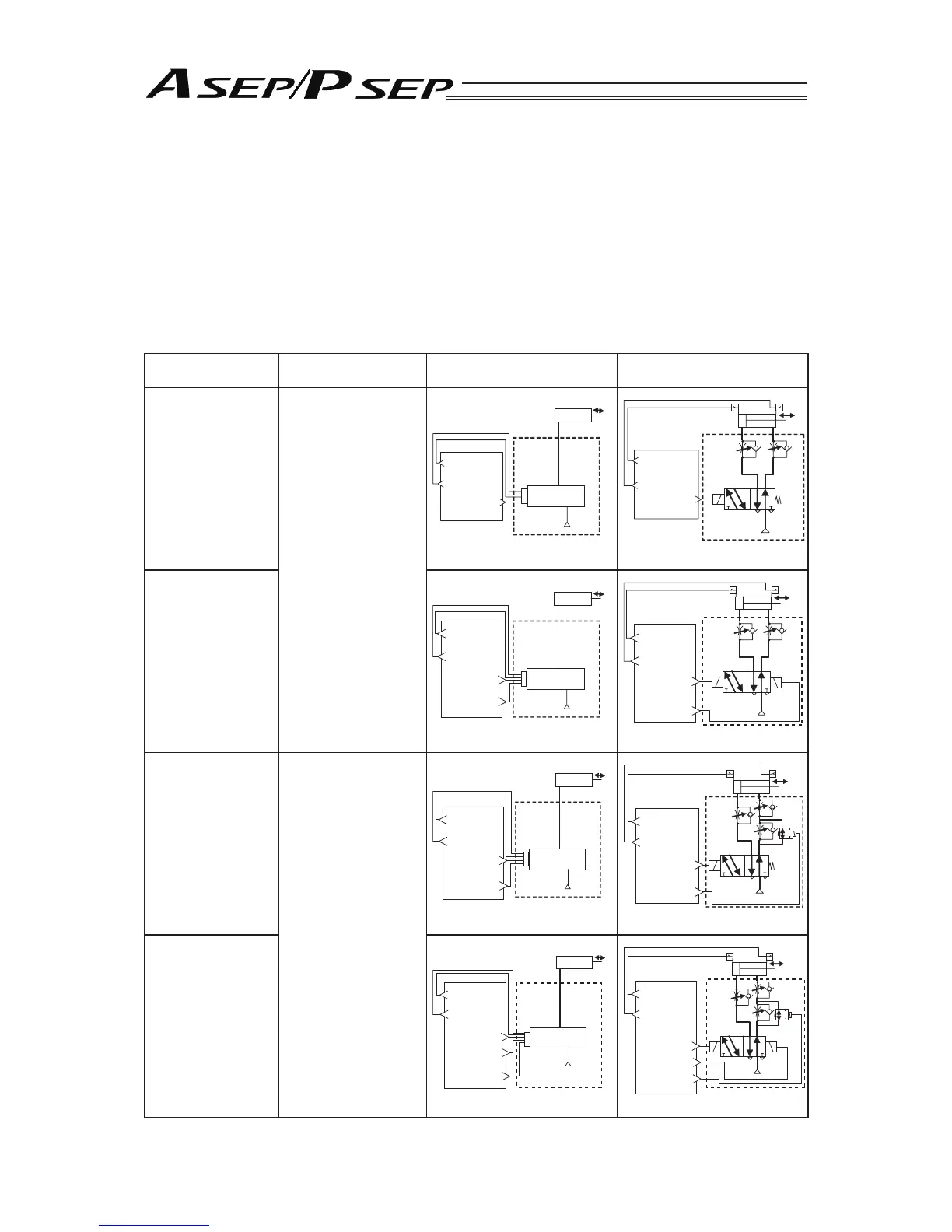

• Operation Pattern
The ASEP or PSEP controller has the 6 operation patterns (PIO pattern, refer to the Item for Setting.).
Each of these 6 patterns is described as in the table. Also, the corresponding air cylinder circuit is
described for reference.
Operation Pattern Contents Electric Cylinder Connection
Procedure
Air Cylinder Circuit (Referance)
PIO Pattern 0
Single Solenoid System
[Standard Point-to-Point
Movement]
The ac
tuator point-to-point
movement is available
using the same control
function as for the air
cylinder.
The target position setting
(forward end and backward
end) is available.
Speed and acceleration
settings in the actuator
movement are available.
The pressing operation is
available.
PIO Pattern 1
Single Solenoid System
(Point-to-Point
Movement)
[Movement Speed
Setting]
The actuator point-to-point
movement is available
using the same control
function as for the air
cylinder.
The speed change in the
movement operation is
available.
The target position setting
(forward end and backward
end) is available.
Speed and acceleration
settings in the actuator
movement are available.
The pressing operation is
available.
To Next Page
