35

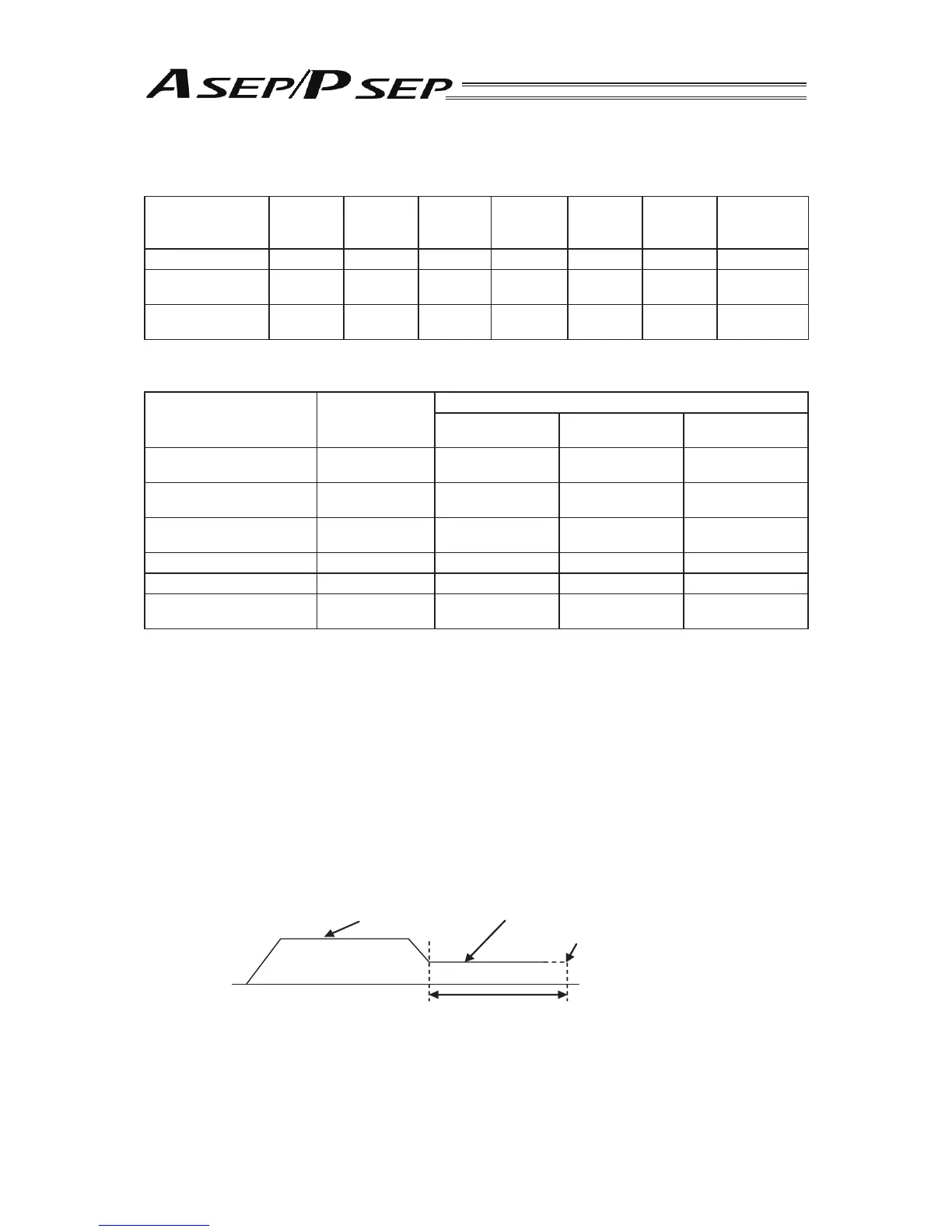

Position Data
Position Data 1) Position 2) Velocity
3)
Acceleration
4)
Deceleration
5) Pressing
Force
5) Pressing
Width
6)
Energy-Saving
Function
Forward End Position 200.00 50.00 0.1 0.1 70 1.00 Effective
Backward End
Position
0.00 50.00 0.1 0.1 0 0 Effective
Intermediate Point
Position
100.00 50.00 0.1 0.1 0 0 Effective
1) Position … Set the position where the actuator is moved.
Setting Range : 0 to Actuator Stroke Range (Unit 0.01mm)
Operation Pattern Name
:PIO Pattern No.
Displacement
Set Position
Forward End Position
Backward End
Position
Intermediate Point
Position
Standard Point-to-Point
Movement :0
Point-to-Point
Movement
○○
Movement Speed Setting :1
Point-to-Point
Movement
○○
Target Position Setting
Change :2
Point-to-Point
Movement
○○
2-Input, 3-Point Movement :3 3-Point Movement
○○○
3-Input, 4-Point Movement :4 3-Point Movement
○○○
Continuous Reciprocating
Operation :5
Point-to-Point
Movement
○○
2) Velocity … Set the actuator speed.
Setting Range : 0.01 to Actuator’s max. speed (Unit: 0.01mm/sec)
3) Acceleration … Set the actuator acceleration.
Setting Range : 0.01 to Actuator’s rated Value Range (Unit: 0.1G)
4) Deceleration … Set the actuator deceleration.
Setting Range : 0.01 to Actuator’s rated value range (Unit: 0.1G)
5) Pressing Force … When the pressing operation is to be performed, set the current limit value (%) except
for “0”.
Setting Range : 0(pressing operation is disabled), 20 to 70% (Unit: 1%)
5) Pressing Width … Set the position for starting the pressing operation.
The position moved as much distance as the pressing width to the center from the
movement target position (forward end or backward end), is regarded as the starting
position, the pressing operation is started.
Pressing Width
ctuator Operation
(2)Set it as the “Velocity”
(1)Set is as the “Position”.
Set the Pressing Speed using the Parameter No. 7.
When the pressing force set within
the pressing width, reaches,
the pressing operation is completed.
To Next Page
