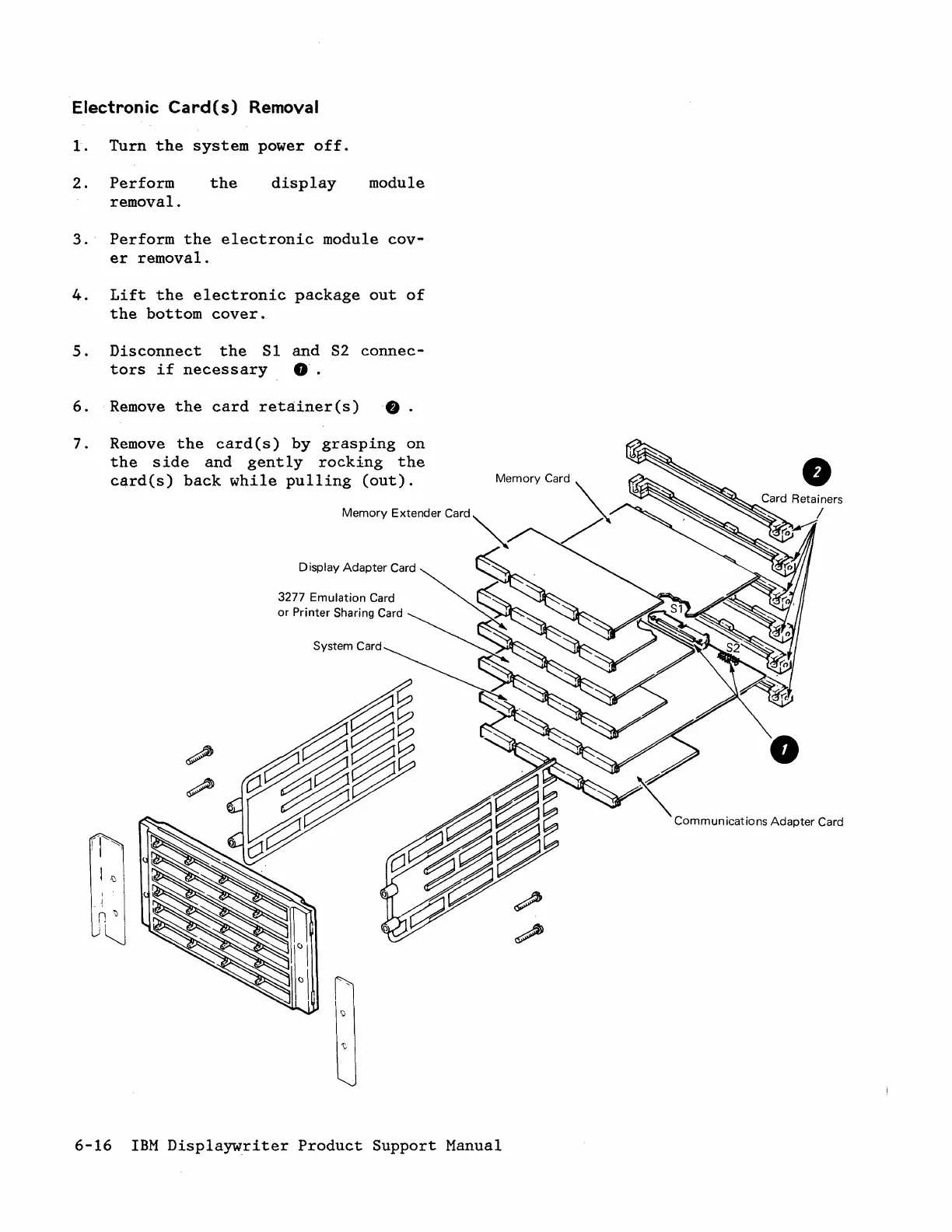

Electronic Card(s) Removal
1. Turn the system power off.
2. Perform
removal.
the
display module
3.· Perform the electronic module cov-
er removal.
4. Lift the electronic package out of
the bottom cover.
5. Disconnect the S1 and S2 connec-
tors if necessary 0 .
6. Remove the card retainer(s) •.
7. Remove the card(s) by grasping on
the side and gently rocking the
card(s) back while pulling (out).
rT""~1
1 'IC I
LI
'i'LJ
Display Adapter Card
3277 Emulation Card
6-16 IBM Displaywriter Product Support Manual
•
•
