DUAL DRIVE
The Diskette Unit can contain either
one or two drive assemblies. When
using two drive asse~blies, the system
can move or combine text from one
drive to the other, but cannot access
both drive assemblies at once for con-
current operation.

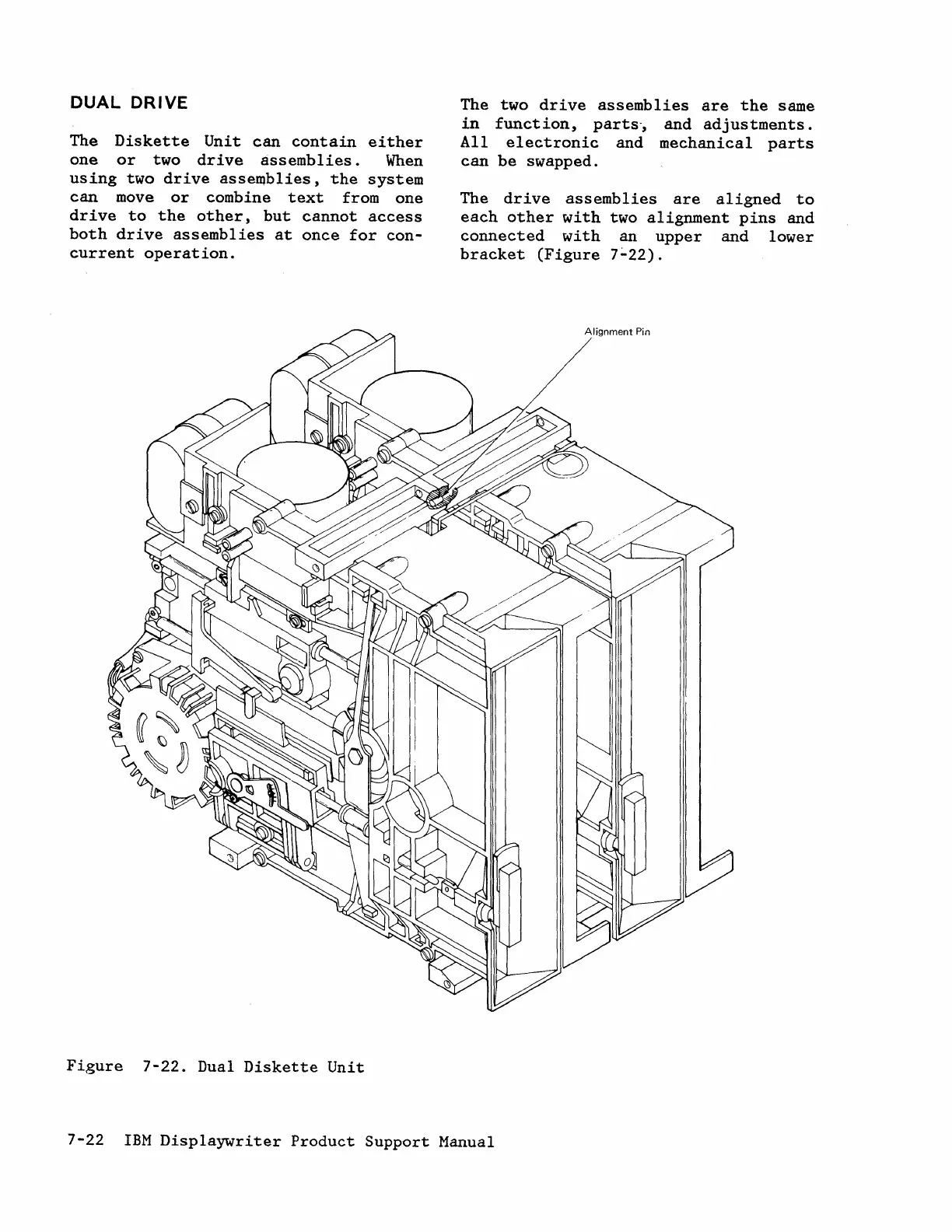

Figure 7-22. Dual Diskette Unit
The two drive assemblies are the same
in function, parts·, and adjustments.
All electronic and mechanical parts
can be swapped.
The
drive assemblies are aligned to
each other with two alignment pins and
connected with an upper and lower
bracket (Figure 7~22).
Alignment Pin
7-22 IBM Displaywriter Product Support Manual
