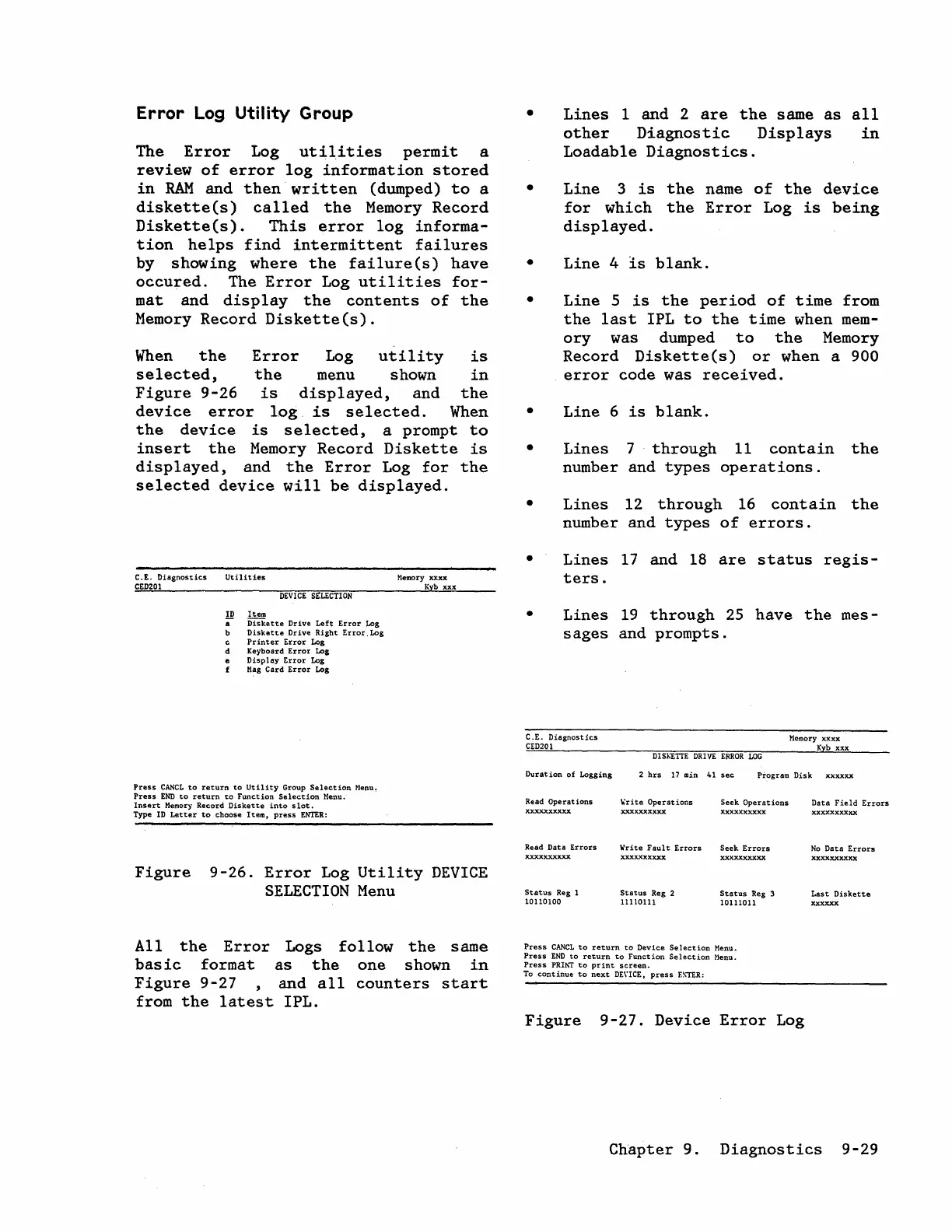

Error Log Utility Group
The Error Log utilities permit a
review of error log information stored
in RAM and then written (dumped) to a
diskette(s) called the Memory Record
DisketteCs). This error log informa-
tion helps find intermittent failures
by showing where the failure(s) have
occured. The Error Log utilities for-
mat and display the contents of the
Memory Record DisketteCs).
When the Error Log utility is
selected, the menu shown in
Figure 9-26 is displayed, and the
device error log. is selected. When
the device is selected, a prompt to
insert the Memory Record Diskette is
displayed, and the Error Log for the
selected device will be displayed.
C.E. Diagnostics Utilities
CEP201
DEVICE Si:LECTION
!!! Item
a Diskette Drive Left Error Log
b
Diskette Drive Right Error. Log
c
Printer Error Log
d
Keyboard Error Log
Display Error Log
~Iag Card Error Log
Press CANCL to return to Utility Group Selection ~lenu,
Press END to return to Function Selection ~Ienu.
Insert Memory Record Diskette into slot.
Type ID Letter to choose Item, press ENTER:
Memory xxxx
Kyb xxx
Figure 9-26.
Error Log Utility
DEVICE
SELECTION
Menu
All the Error Logs follow the same
basic format as the one shown in
Figure 9-27 , and all counters start
from the latest IPL.
•
•
•
•
•
•
Lines 1 and 2 are the same as all
other Diagnostic Displays in
Loadable Diagnostics.
Line 3 is the name of the device
for which the Error Log is being
displayed.
Line 4 is blank.
Line 5 is the period of time from
the last IPL to the time when mem-
ory was dumped to the Memory
Record Diskette(s) or when a 900
error code was received.
Line 6 is blank.
Lines 7 through 11 contain the
number and types operations.
• Lines 12 through 16 contain the
number and types of errors.
• Lines 17 and 18 are status regis-
ters.
•
Lines 19 through 25 have the mes-
sages and prompts.
C.E. Diagnostics
CED201
DISKETIE DRIVE ERROR LOG
Memory xxxx
Kyb xxx
Duration of Logging
2 hrs 17 min 41 sec
Program Disk xxxxxx
Read Operat ions
xxxxxxxxxx
Read Data Errors
xxxxxxxxxx
Status Reg 1
10110100
IOrite Operations
xxxxxxxxxx
"'rite Fault Errors
xxxxxxxxxx
Status Reg 2
11110111
Seek Operations
xxxxxxxxxx
Seek Errors
Status Reg 3
10111011
Press CANCL to return to Device Selection Menu.
Press END to return to Function Selection ~lenu.
Press PRIl\"T to pr int screen.
To continue to next DE\·ICE, press E~"TER:
Figure 9-27. Device Error Log
Data Field Errors
xxxxxxxxxx
No Data Errors
xxxxxxxxxx
Last Diskette
XXXXXX
Chapter 9. Diagnostics 9-29
