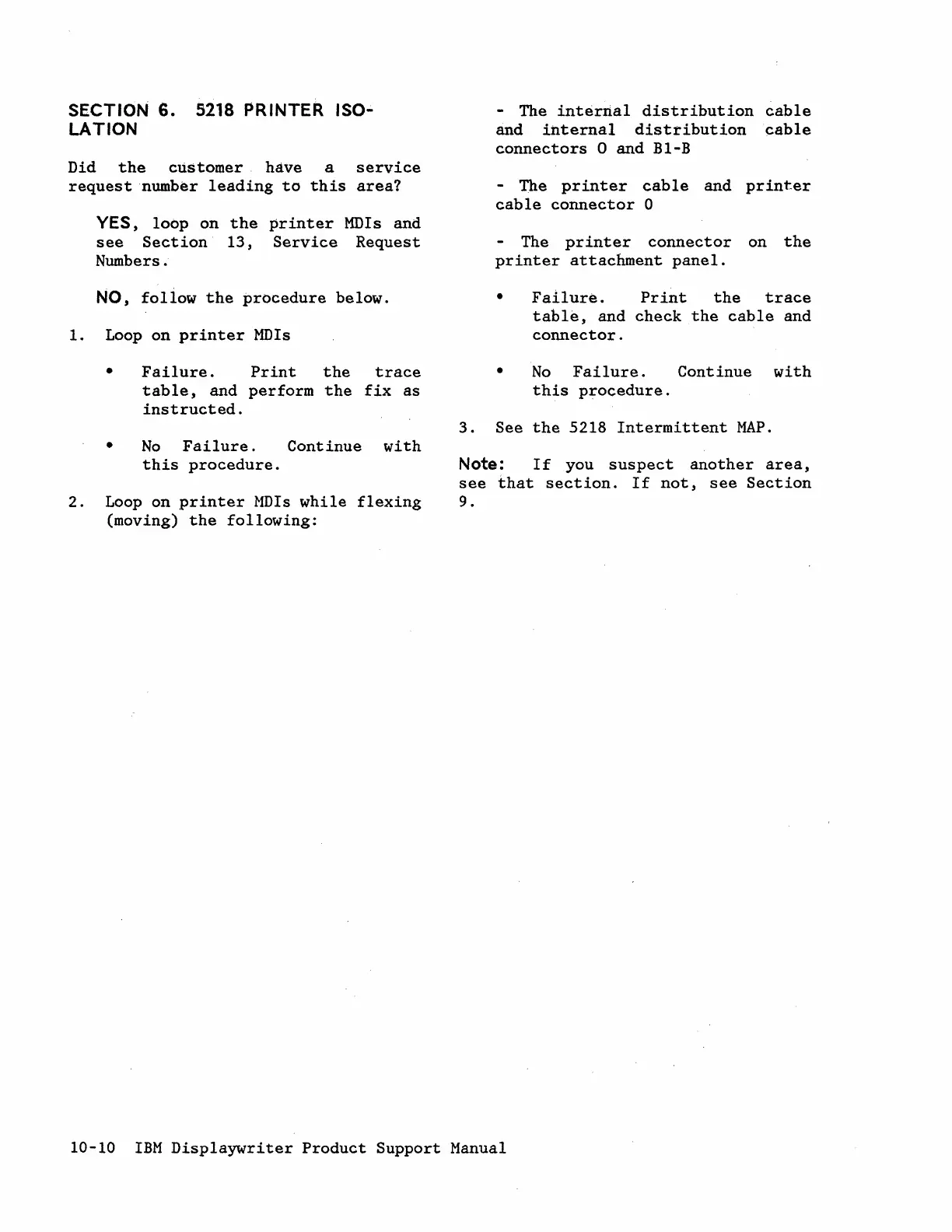

SECTION 6. 5218 PRINTER ISO~
LATION
Did the customer. have a service
request number leading to this area?
YES, loop on the printer MDIs and
see Section 13, Service Request
Numbers.
NO, foliow the procedure below.
1. Loop on printer MDIs
•
•
Failure. Print the trace
table, and perform the fix as
instructed.
No Failure.
this procedure.
Continue with
2. Loop on printer MDIs while flexing
(moving) the following:
- The internal distribution cable
and internal distribution cable
connectors 0 and B1-B
- The
printer cable and printer
cable connector 0
- The printer connector on the
printer attachment panel.
•
•
Failure. Print the trace
table, and check the cable and
connector.
No Failure. Continue with
this procedure.
3. See the 5218 Intermittent MAP.
Note: If you suspect another area,
see that section. If not, see Section
9.
10-10 IBM Displaywriter Product Support Manual
