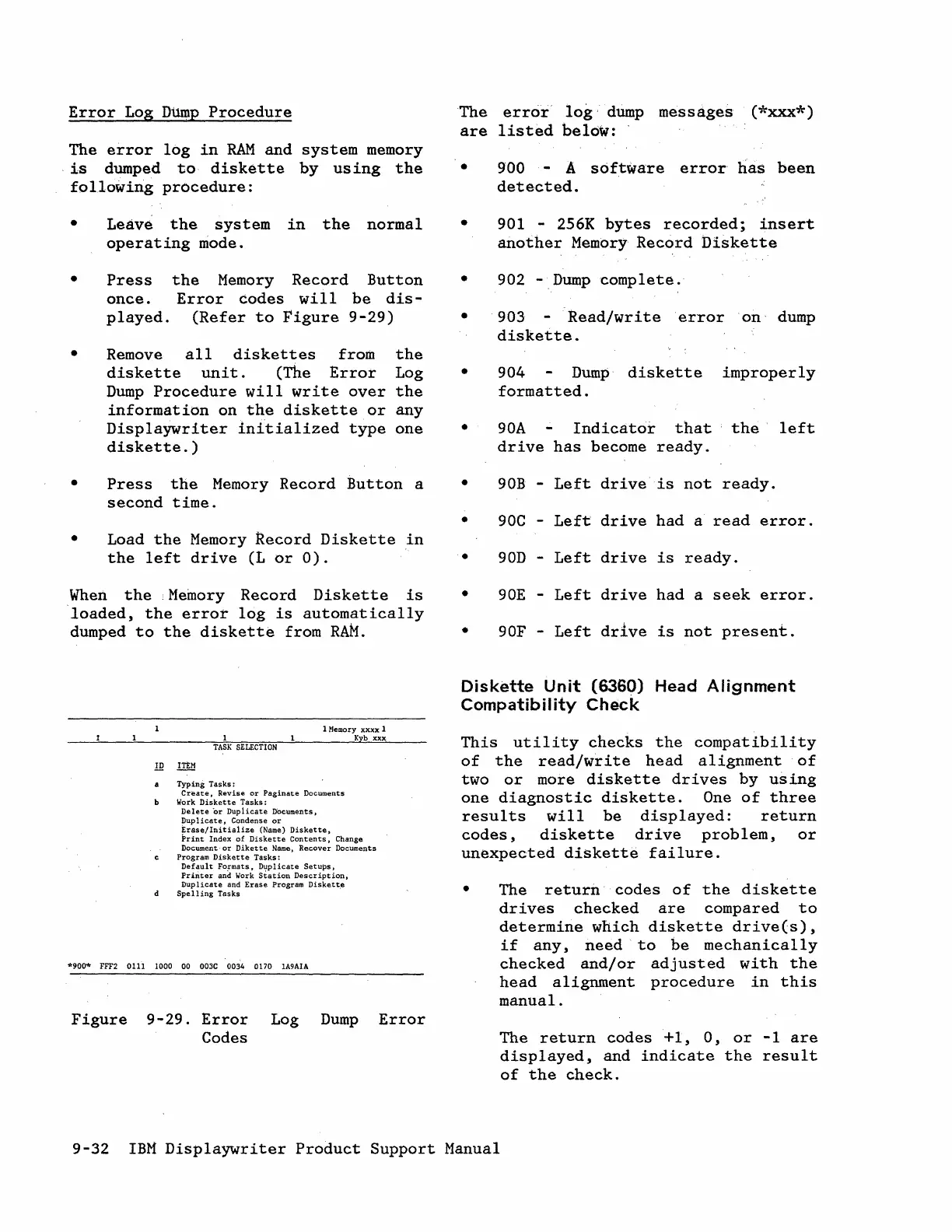

IBM 6580 User Manual

Error Log DUmp Procedure
The error log in RAM and system memory
. is dumped to diskette by us ing the
following procedure:
•
•
•
•
•
Leave the
system
in
the
normal
operating mode.
Press
the Memory Record Button
once.
Error
codes
will
be dis-
played.
(Refer to Figure 9-29)
Remove all diskettes from
diskette unit. (The Error
Dump Procedure will write over
information on the diskette or
Displaywriter inftialized type
diskette.)
the
Log
the
any
one
Press the Memory Record Button a
second time.
Load the Memory Record Diskette in
the left drive (L or 0).
When the Memory Record Diskette is
loaded, the error log is automatically
dumped to the diskette from RAM.
TASK SELECTION
Typing Tasks:
1 ~Iemory xxxx 1
Kyh xxx
Create, Revise or Paginate Documents
Work Diskette Tasks:
Delete 'or Duplicate Documents,
Duplicate, Condense or
Erase/Initiaiize (Name) Diskette,
Print Index of Diskette Contents, Change
Document'
or Dikette Name, Recover Documents
Program Diskette Tasks:
Default Formats, Duplicate Setups,
Printer and Work Station Description,
Duplicate and Erase Program Diskett,e
Spelling Tasks
*900* FFF2 0111 1000 00 003C 0034 0170 1A9AIA
Figure 9-29. Error Log Dump Error
Codes
The
error log' dump mes sages (*xxx*)
are listed below:
•
•
•
•
•
•
•
900 - A software error has been
detected.
901 - 256K bytes recorded; insert
another Memory Record Diskette
902 -Dump complete.
903 Read/write error on dump
diskette.
904 Dump diskette
formatted.
90A Indicator that
drive has become ready.
improperly
the' left
90B - Left drive is not ready.
• 90C - Left drive had a read error.
•
90D - Left drive is ready.
•
90E - Left drive had a seek error.
•
90F - Left drive is not present.
Diskette Unit (6360) Head Alignment
Compatibility Check
This utility checks the compatibility
of the read/write head alignment of
two or more diskette drives by using
one diagnostic diskette. One of three
results will be displayed: return
codes, diskette drive problem, or
unexpected diskette failure.
• The return codes of the diskette
drives checked are compared to
determine which diskette drive(s),
if any, need to be mechanically
checked and/or adjusted with the
head alignment procedure in this
manual.
The
return codes +1, 0, or -1 are
displayed, and indicate the result
of the check.
9-32 IBM Displaywriter Product Support Manual
