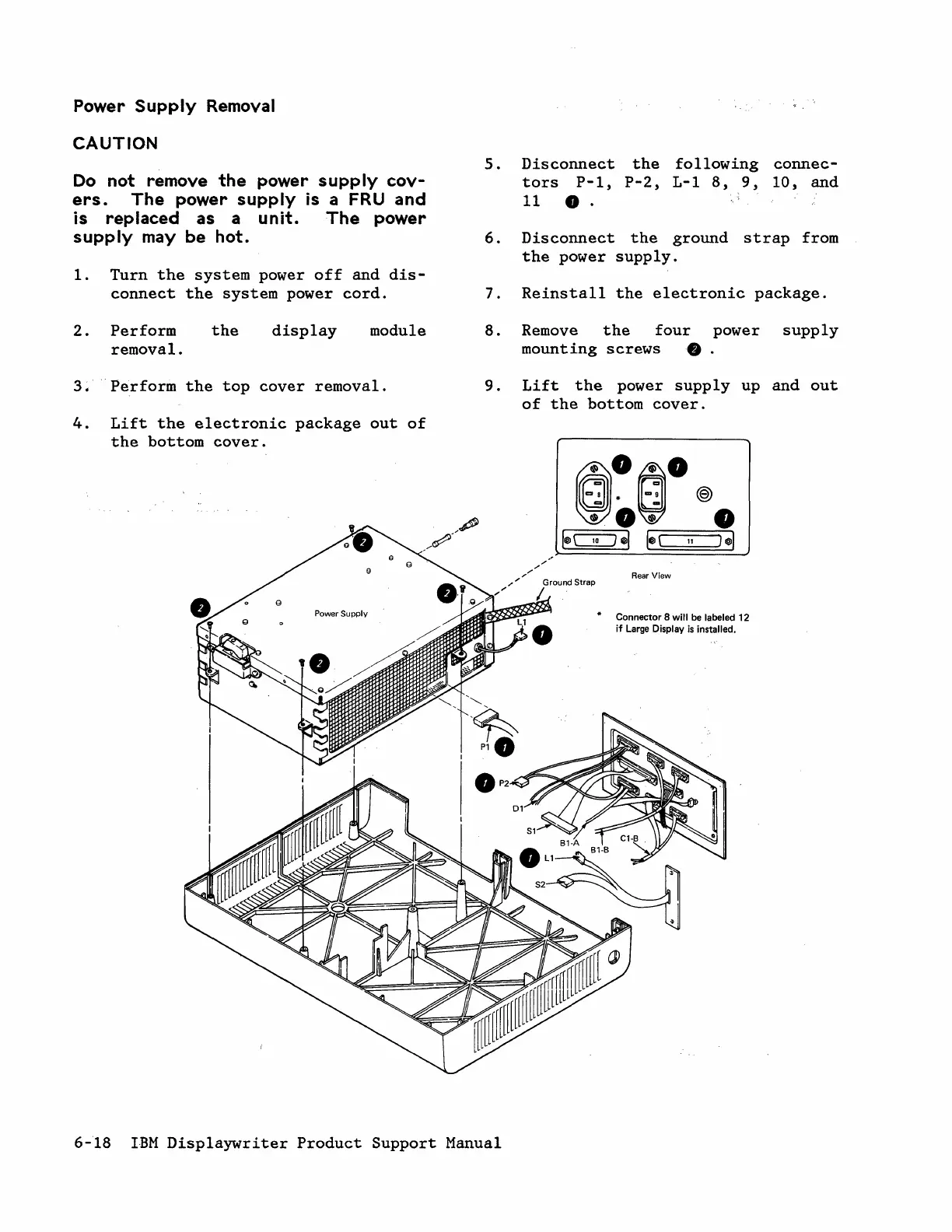

Power Supply Removal
CAUTION
Do not remove the power supply cov-
ers. The power supply is a FRU and
is replaced
as a unit. The power
supply may be hot.
1. Turn the system power off and dis-
connect the system power cord.
2. Perform
removal.
the display module
3.· . Perform the top cover removal.
4. Lift the electronic package out of
the bottom cover.
Power Supply
5. Disconnect the following connec-
tors P-1, P-2, L-1 8, 9, 10, and
11 •.
6. Disconnect the ground strap from
the power supply.
7. Reinstall the electronic package.
8. Remove the four power supply
mounting screws •.
9. Lift the power supply up and out
of the bottom cover.
Rear View
* Connector 8 will be labeled 12
if Large
Display is installed.
6-18 IBM Displaywriter Product Support Manual
