Diskette Label
Operator Handl~
(Open Position)

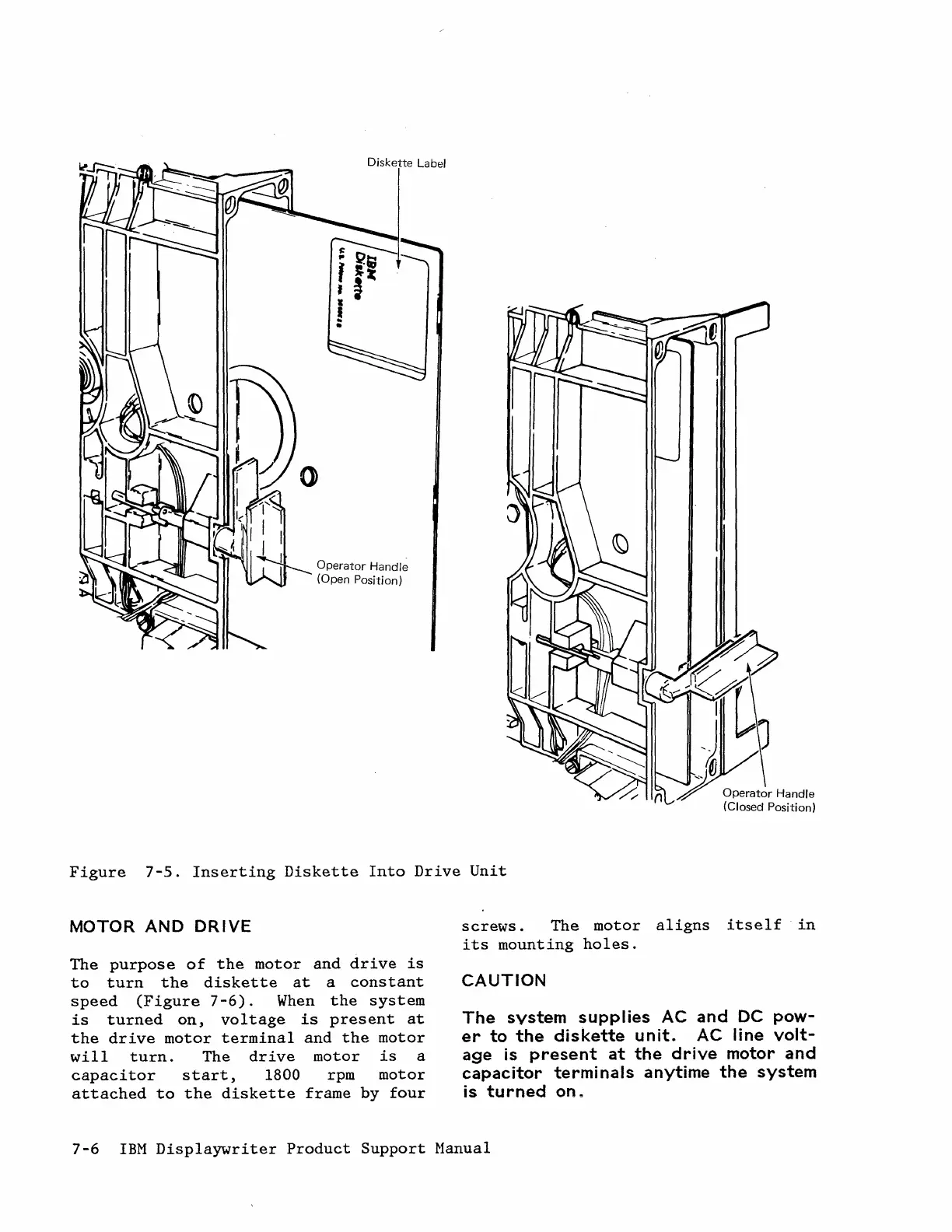

Figure 7-5. Inserting Diskette Into Drive Unit
MOTOR AND DRIVE
The purpose of the motor and drive is
to turn the diskette at a cons tant
speed (Figure 7 -6) . When the system
is turned on, voltage is present at
the drive motor terminal and the motor
will turn. The drive motor is a
capacitor start, 1800 rpm motor
attached to the diskette frame by four
screws. The motor aligns itself in
its mounting holes.
CAUTION
The system supplies AC and DC pow-
er to the diskette unit. AC line volt-
age is present at the drive motor and
capacitor terminals anytime the system
is
turned on.
7-6 IBM Displaywriter Product Support ~lanual
