IBM 6580 User Manual

Panel 1
A - Over Voltage/Under VOltage}
Memory Record Button~
Power Supply LEOs rt\ o(CSfo ~OlO 0\1 21)0 l
B ~ Over Current '
C - Over Temperature
D - Error LEDs
;~ 1 I
} System Status LEOs

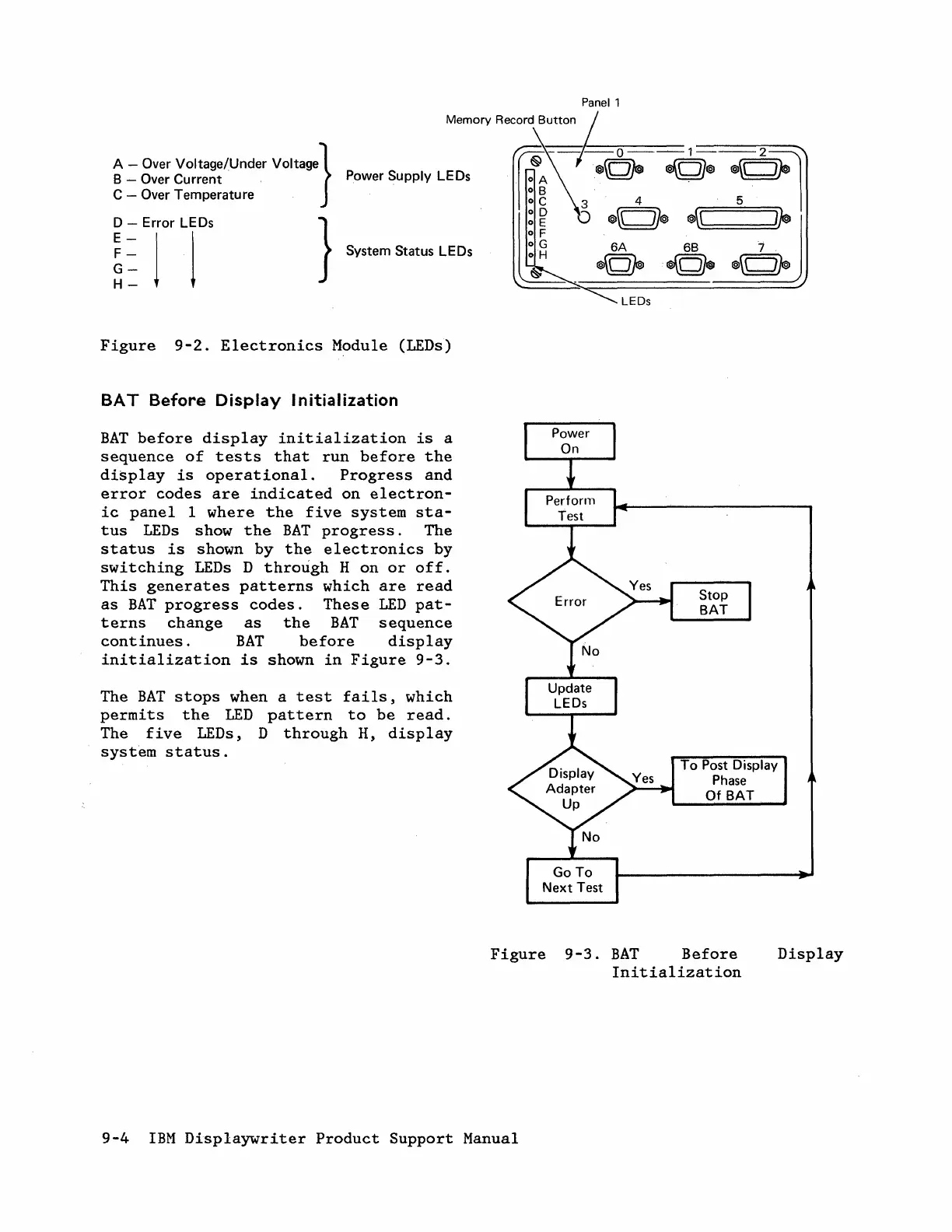

Figure 9-2. Electronics Module CLEDs)
BAT Before Display Initialization
BAT before display initialization is a
sequence of tests that run before the
display is operational. Progress and
error codes are indicated on electron-
ic panel 1 where the five system sta-
tus LEDs show the BAT progress. The
status is shown by the electronics by
switching LEDs D through H on or off.
This generates patterns which are read
as BAT progress codes. These LED pat-
terns change as the BAT sequence
continues. BAT before display
initialization is shown in Figure 9-3.
The BAT stops when a test fails, which
permits the LED pattern to be read.
The five LEDs, D through H, display
system status.
11;1 ~ 3 4 5
:~ 0 O~ 1~ ~ ~. ~
o G 68 7 .
oH go @~
GoTo
Next Test
LEDs
To Post Display
Phase
Of BAT
Figure 9-3. BAT
Before Display
Initialization
9-4 IBM Displaywriter Product Support Manual
