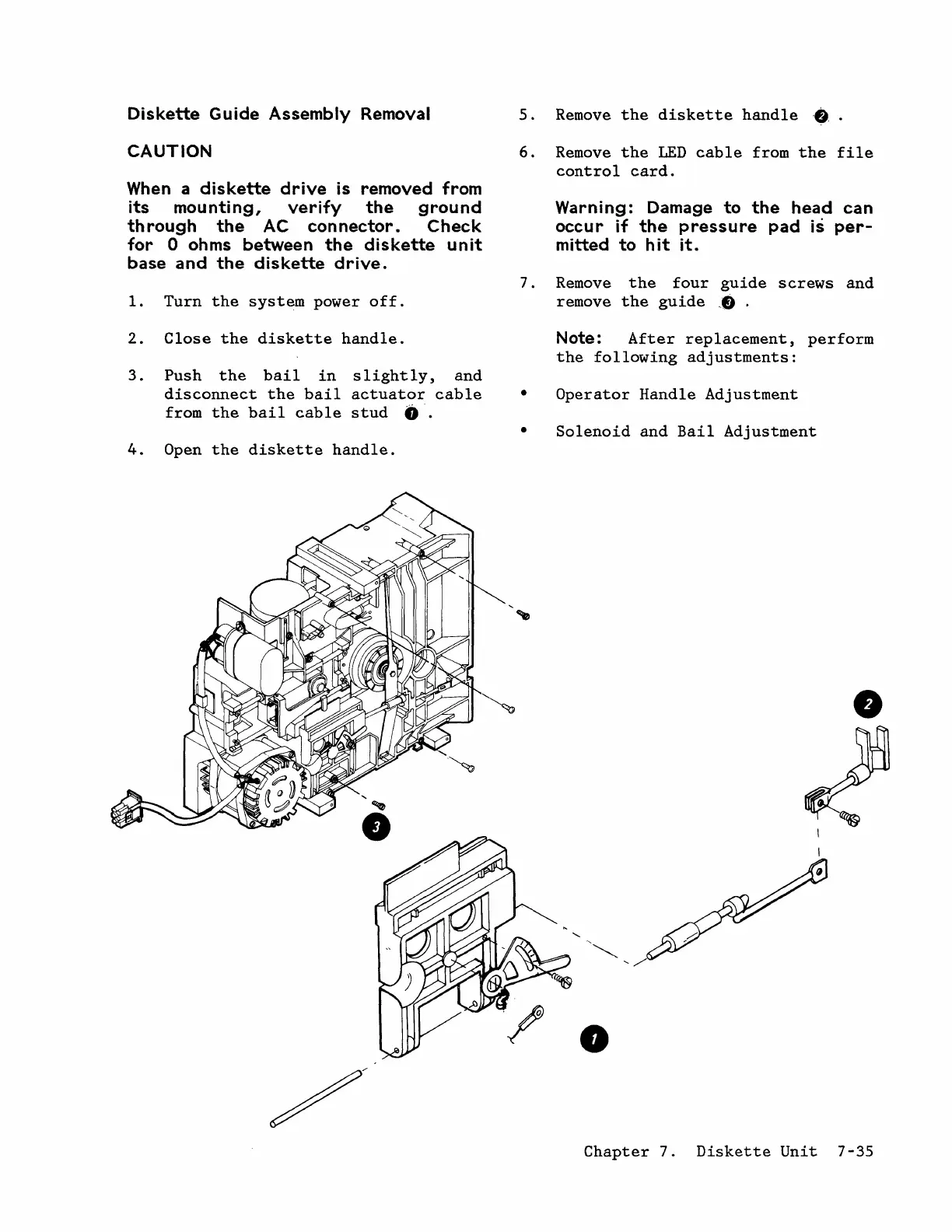

Diskette Guide Assembly Removal
CAUTION
When a diskette drive is removed from
its mounting,
verify the ground
through the AC connector. Check
for 0 ohms between the diskette unit
base and the diskette drive.
1. Turn the system power off.
2. Close the diskette handle.
3. Push the bail in slightly, and
disconnect the bail actuator cable
from the bail cable stud o.
4. Open the diskette handle.
5. Remove the diskette handle '._.
6. Remove the LED cable from the file
control card.
Warning: Damage to the head can
occur if the pressure pad is per-
mitted to h it it.
7 . Remove the four guide screws and
remove the guide ,e .
•
Note: After replacement, perform
the following adjustments:
Operator Handle Adjustment
• Solenoid and Bail Adjustment
•
~
I
•
Chapter 7. Diskette Unit 7-35
