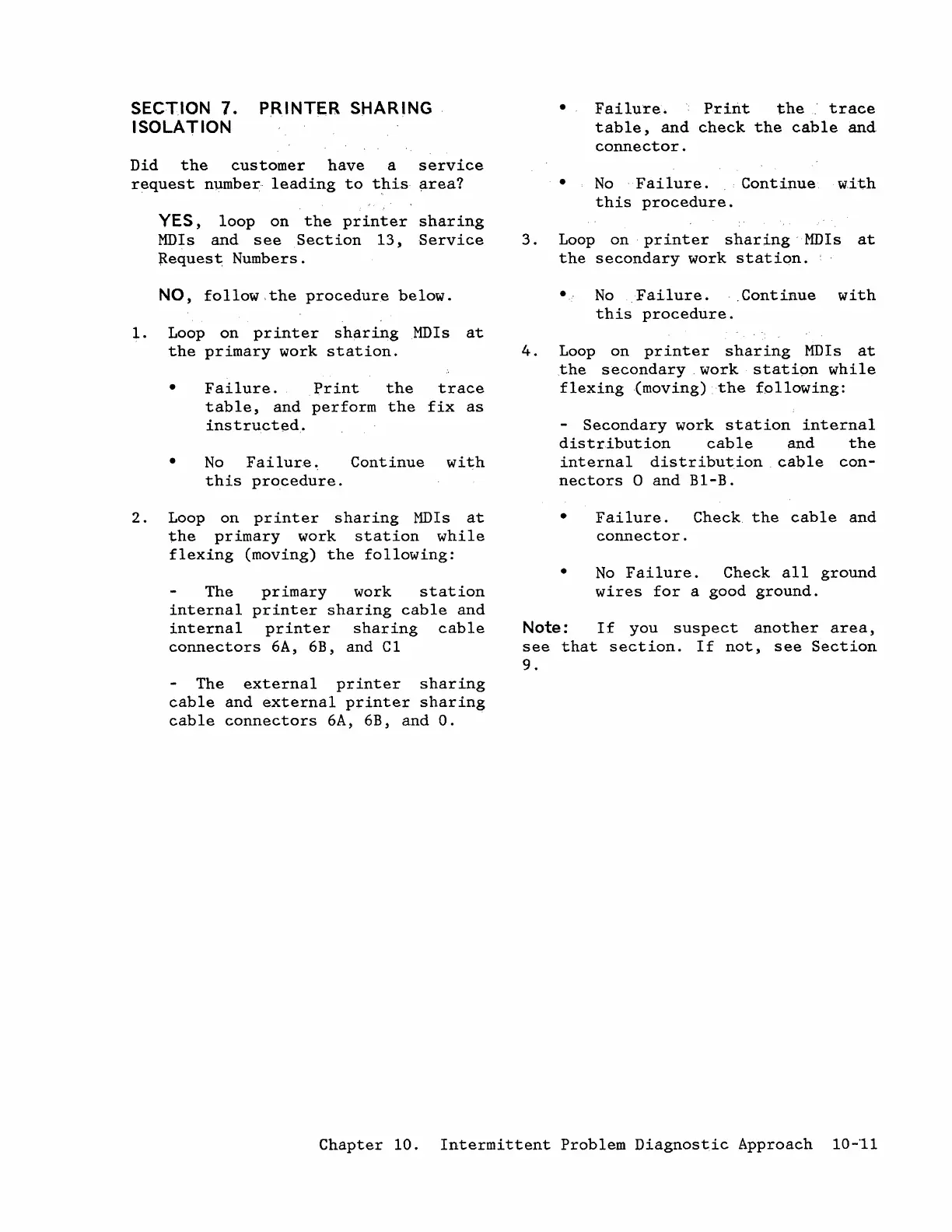

SECTION 7. P,RINTE.R SHARING
ISOLATION
Did the customer have a service
request number leading to this area?
1.
YES, loop on the printer sharing
MDIs and see Section 13, Service
Reques~ Numbers.
NO, follow, the procedure below.
Loop on printer sharing ,MDIs at
the primary work station.
• Failure. Print the trace
•
table, and perform the fix as
instructed.
No Failur,e ~ Continue with
this procedure.
2. Loop on printer sharing MDIs at
the primary work station while
flexing (moving) the following:
The primary work station
internal printer sharing cable and
internal printer sharing cable
connectors 6A, 6B, and C1
The external printer sharing
cable and external printer sharing
cable connectors 6A, 6B, and O.
•
•
Failure. Print the trace
table, and check the cable and
connector.
No . Failure. Continue with
this procedure.
3. Loop on printer sharing' MDIs at
the secondary work station.
4.
., No Failure. . ,Continue with
this procedure.
Loop on printer sharing MDIs at
the secondary. work statipn while
flexing (moving) the following:
- Secondary work station internal
distribution cable and the
internal distribution. cable con-
nectors 0 and BI-B.
•
Failure. Check the cable and
connector.
• No Failure. Check all ground
wires for a good ground.
Note: If you suspect another area,
see that section. If not, see Section
9.
Chapter 10. Intermittent Problem Diagnostic Approach 10-'11
