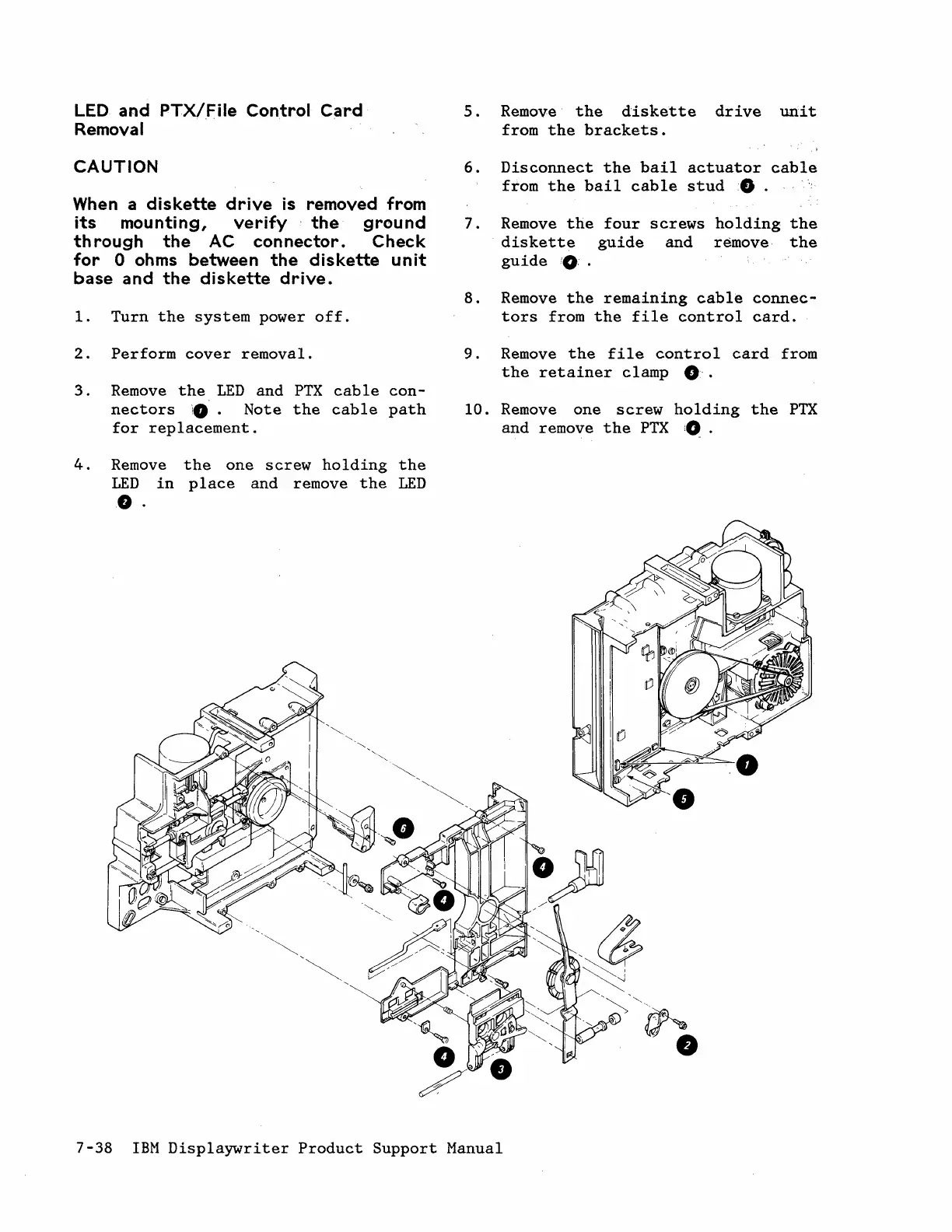

LED and PTX/File Control Card
Removal
CAUTION
When a diskette drive is removed from
its mounting, verify the ground
through the AC connector. Check
for 0 ohms between the diskette unit
base and the diskette drive.
1. Turn the system power off.
2. Perform cover removal.
3. Remove the LED and PTX cable con-
nectors!.. Note the cable path
for replacement.
4. Remove the one screw holding the
LED in place and remove the LED
O.
5. Remove the diskette drive unit
from the brackets.
6. Disconnect the bail actuator cable
from the bail cable stude .
7. Remove the four screws holding the
diskette guide and remove the
guide 10·.
8. Remove the rema1n1ng cable connec-
tors from the file control card.
9. Remove the file control card from
the retainer clamp O.
10. Remove one screw holding the PTX
and remove the PTX :~.
7-38 IBM Displaywriter Product Support Manual
