Operating Voltages
The display module is attached to the
electronics module panel 1 with a fif-
teen pin connector. Five of the pins
and wires are not used. The other ten
wires are all input signals. These
Pin 1
XO 0 0 0 0 0 0 0
\ 0 000 0 0 o~
"--_-_01"
Male Pin 15

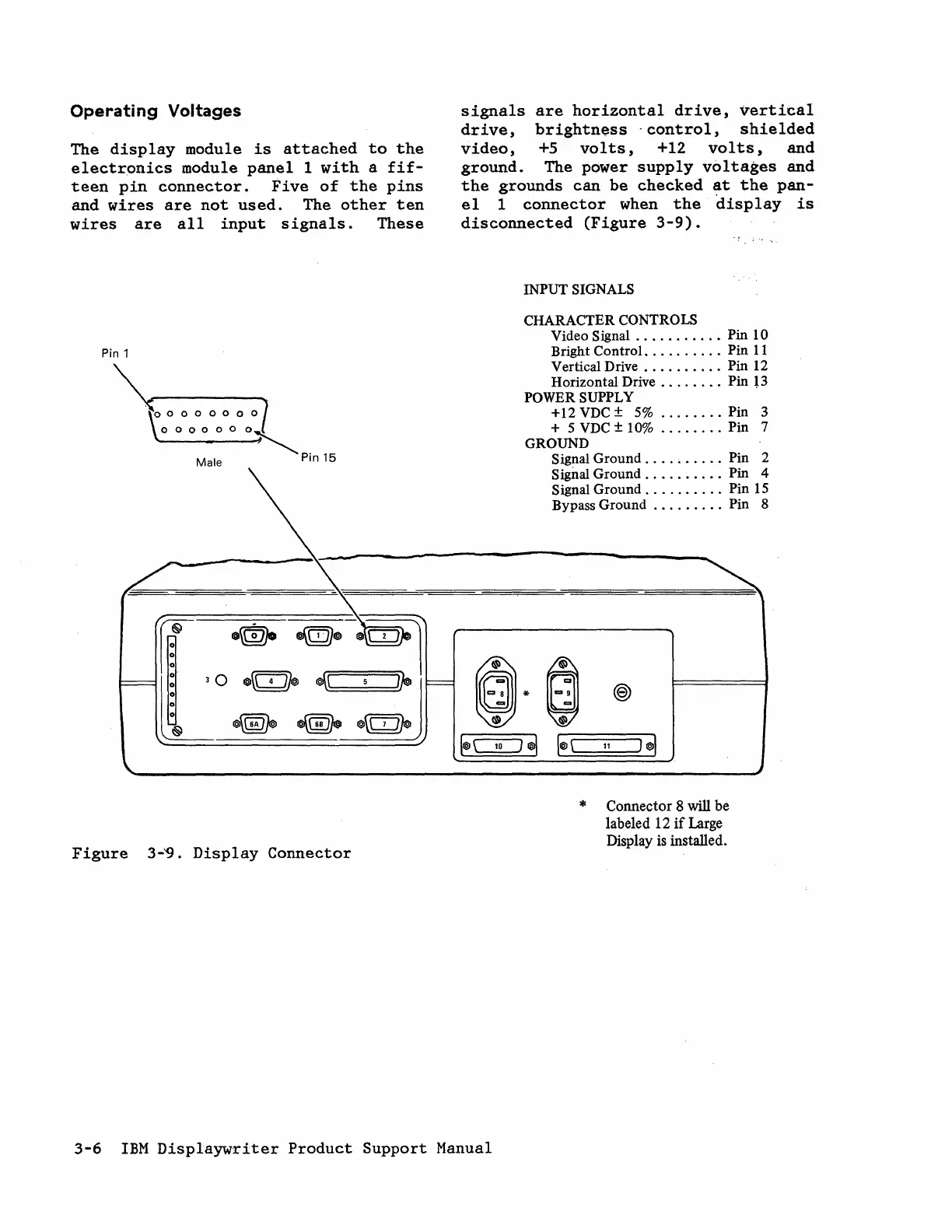

Figure 3-~. Display Connector
signals are horizontal drive, vertical
drive, brightn~ss -control, shielded
video, +5 volts, +12 volts, and
ground. The power supply voltages and
the grounds can be checked at the pan-
el 1 connector when the display is
disconnected (Figure 3-9).
INPUT SIGNALS
CHARACTER CONTROLS
Video Signal . . . . . . . . . . . Pin 10
Bright Control. ......... Pin 11
Vertical Drive . . . . . . . . . . Pin 12
Horizontal Drive . . . . . . .. Pin 13
POWER SUPPLY
+ 12 VDC ± 5% ........ Pin 3
+ 5 VDC ± 10% ........ Pin 7
GROUND
1@Li£:j@\
Signal Ground. . . . • . . . . . Pin 2
Signal Ground .......... Pin 4
Signal Ground .......... Pin 15
Bypass Ground . . . . . . . . . Pin 8
~
\~
I@\
@
11
)@I
* Connector 8 will be
labeled
12 if Large
Display is installed.
3-6 IBM Displaywriter Product Support Manual
