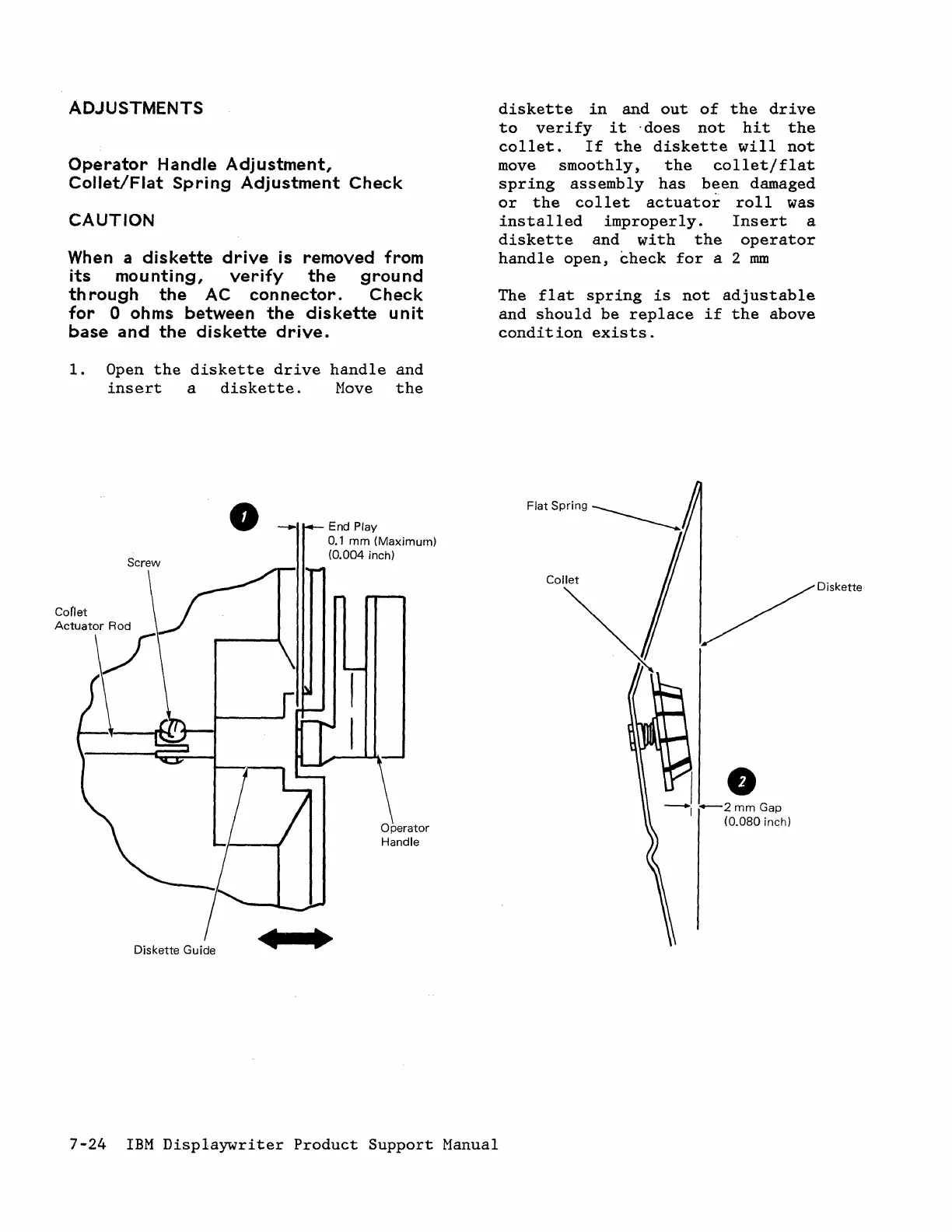

ADJUSTMENTS
Operator Handle Adjustment,
Collet/Flat Spring Adjustment Check
CAUTION
When a diskette drive is removed from
its mounting,
verify the ground
through the AC connector. Check
for 0 ohms between the diskette unit
base and the diskette drive.
1. Open the diskette drive handle and
insert a diskette. Nove the
•
Conet
Diskette Guide
7-24 IBM Displaywriter Product Support Manual
diskette in and out of the drive
to verify it -does not hit the
collet. If the diskette will not
move smoothly, the collet/flat
spring assembly has been damaged
or the collet actuator roll was
installed improperly. Insert a
diskette and with the operator
handle open, check for a 2 mm
The flat spring is not adjustable
and should be replace if the above
condition exists.
!/Diskette
I·
-,-2mmGap
(0.080 inch)
