Cabl,ing
The Large Display Module is installed
on top of the electronics module. The
AC power for the diskette unit comes
Large
Display
Cable
-lrrrrffffrrrrrffllrrrrrlr==
AC Power
Cord
Diskette
Unit
~l1lllllllllllll1llllllll\1l=--:
o
Cord

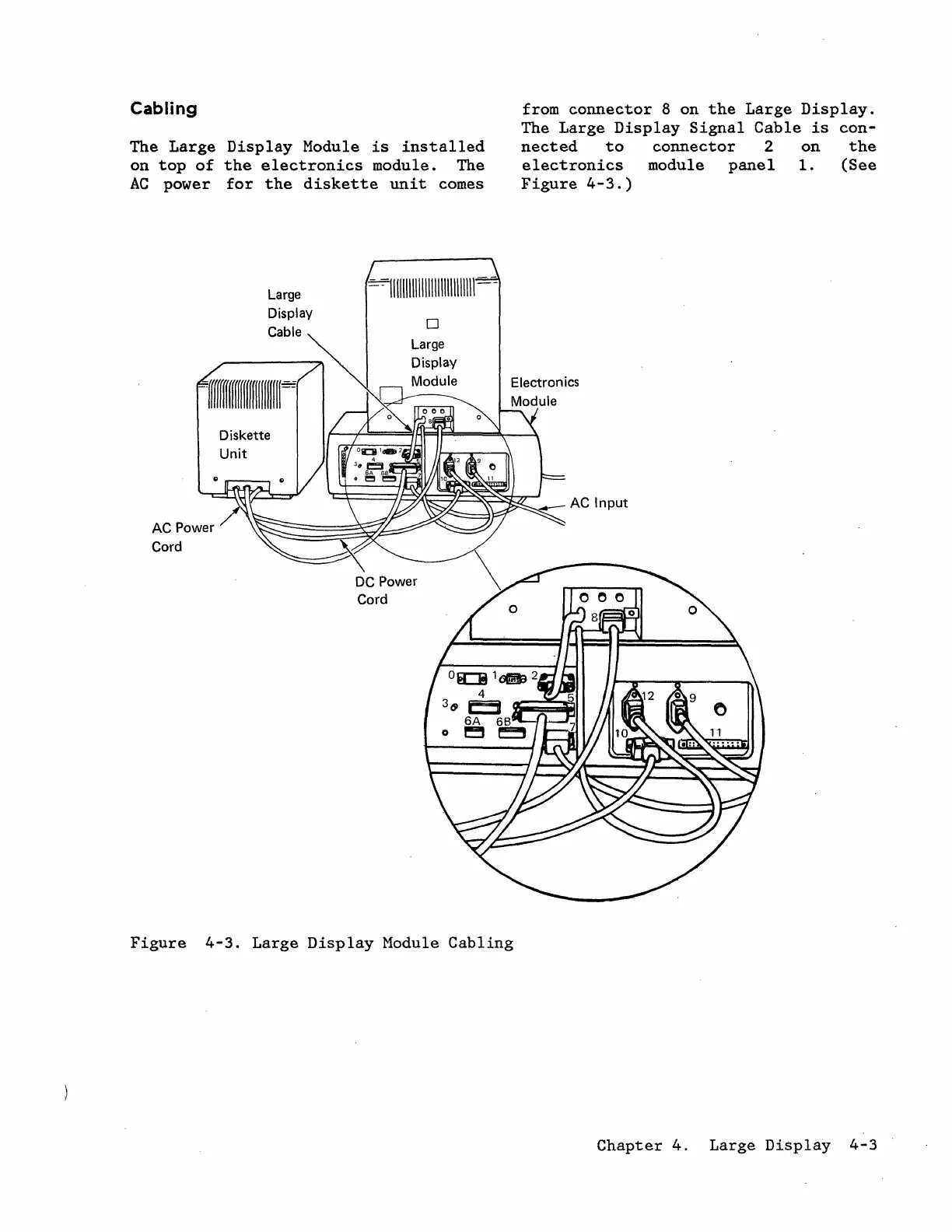

Figure 4-3. Large Display Module Cabling
from connector 8 on the Large Display.
The Large Display Signal Cable is con-
nected to connector 2 on the
electronics module panel 1. (See
Figure 4-3.)
Chapter 4. Large Display 4-3
