IBM 6580 User Manual

Motor and solenoid housings become
hot
after continuous use. Let sur-
faces cool' before servicing them.
The drive motor pulley is attached to
the drive motor shaft with a locking
setscrew. The drive motor pulley
turns the dr i ve be 1 t which turns the
drive hub assembly. The drive hub

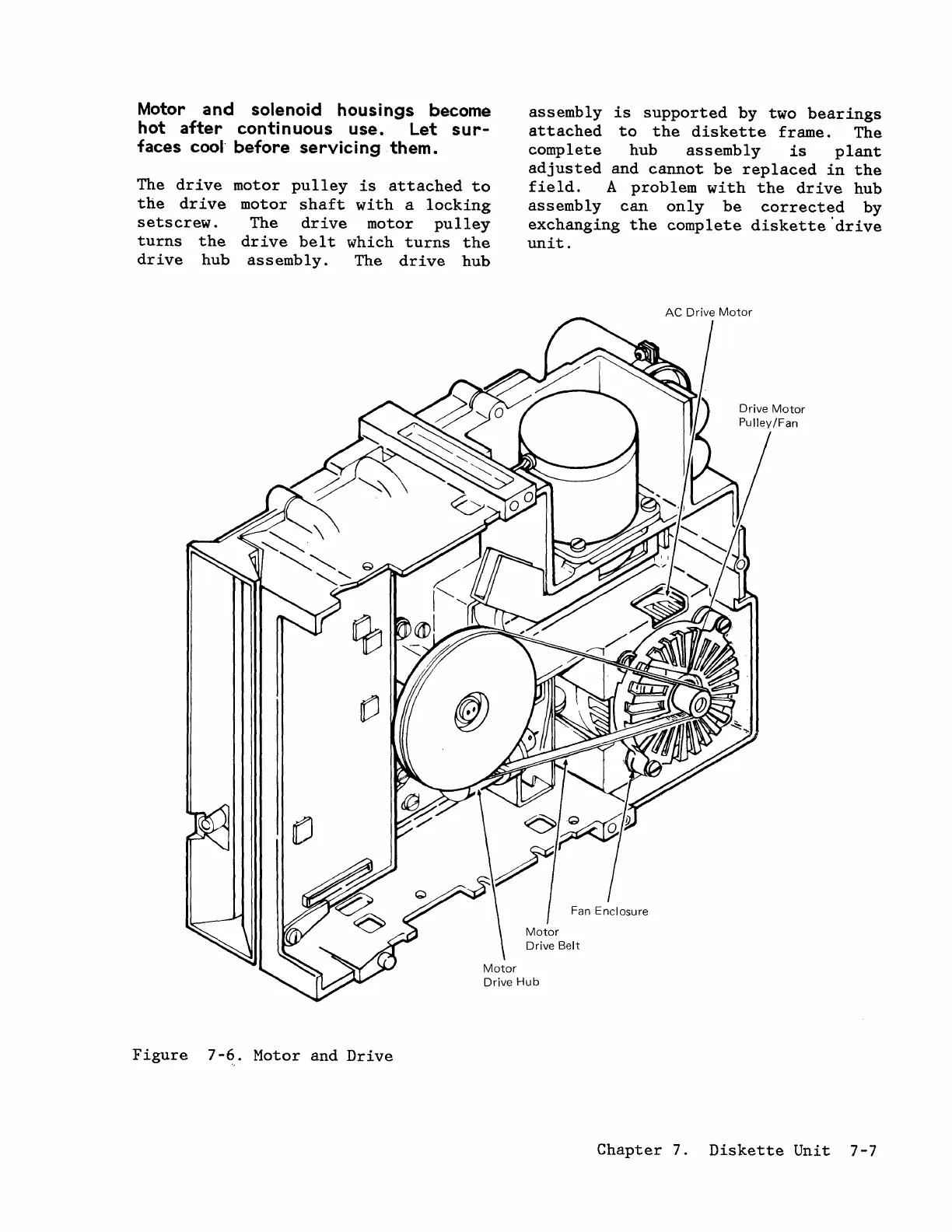

Figure 7-6. Motor and Drive
assembly is supported by two bearings
attached to the diskette frame. The
complete hub assembly is plant
adjusted and cannot be replaced in the
field. A problem with the drive hub
assembly can only be corrected by
exchanging the complete diskette 'drive
unit.
Motor
Drive Belt
AC Drive Motor
Chapter 7. Diskette Unit 7-7
