No. Name
lOn/Off Switch
2 Connector 8 or 12 (AC Output)
3 Connector 9 CAC Input)
4 Fuse
5 Connector 11 (Communications)
6
Connector 10 (Diskette D~)
7 Connector L1 (P/S to LED Board L1)
8
Connector P2 (Power Supply)
9 Connector PI (Power Supply)
10 Connector 2 (Display Module)
11 Ring Terminal (Frame Ground)
12 Panel 1 (Electronics Module)
13 Connector Sl (To System Card)
14 Connector PI (To Power Supply)
15 Connector P2 (To Power Supply)
16 LED Board
17 Connector S2 (To System ~ard)
18 Connector L1 (LED Board to P/S L1)
19 Memory Extender Card
20 Memory Card
21 Display Adapter Card
22 Printer Sharing Card
23 System Card
24 Communications
Adapter Card
25 Distribution Board Assembly
26 Connector Al (To Distribution Board)
27 Connector B1 (To Distribution Board)
28 Connector C1 (To Distribution Board)
29 Connector D1 (To Distribution Board)
30 Stiffener
31 Keyboard ID Jumpers
32
Speaker Connector
33 Pad Card
34 30-Pin Pad Card Connector
35 Keyboard Logic Card
36 Keyboard Cable Connector (To 7)
37 Logic Card Connector
38 Diskette Adapter Card
39 Diskette Connector Strip
40 Connector B4 (To Diskette Adapter Card)
41 Connector B3 (To Diskette Adapter Card)
42 Connector B2 (To Diskette Adapter Card)
43 Connector Bl (To Diskette Adapter Card)
44 AC Fan Connector
45 Stepper Motor Connector
46 File Control Card
47
File Control Card Connector
48 Diskette ACConnector (To 8)
49 Diskette Signal Connector (To 5)
50 Diskette DC Connector (To 10)
51 Head Connector
52 PTX Connector
53 LED Connector
54 Solenoid Connector
55 LVI (Low Voltage Power Supply Cable)
56 LV2 (Low Voltage Power Supply Cable)
57 LV3 (Low Voltage Power Supply Cable)
58 CRT Socket
59 Connector 2
60 Display AC Cable
61 J301 (Deflection Output Cable)
62 J302 (Deflection \ndicator Cable)
63 J502 (Video Output Cable)
64 J501 (Video Input Cable)
65 J4 (Display Cable Connector)
66 J3 (Display Cable Connector)
67 J2 (Display Cable Connector)
68 J1 (Display Cable Connector)
69 Analog Card Connector Strip

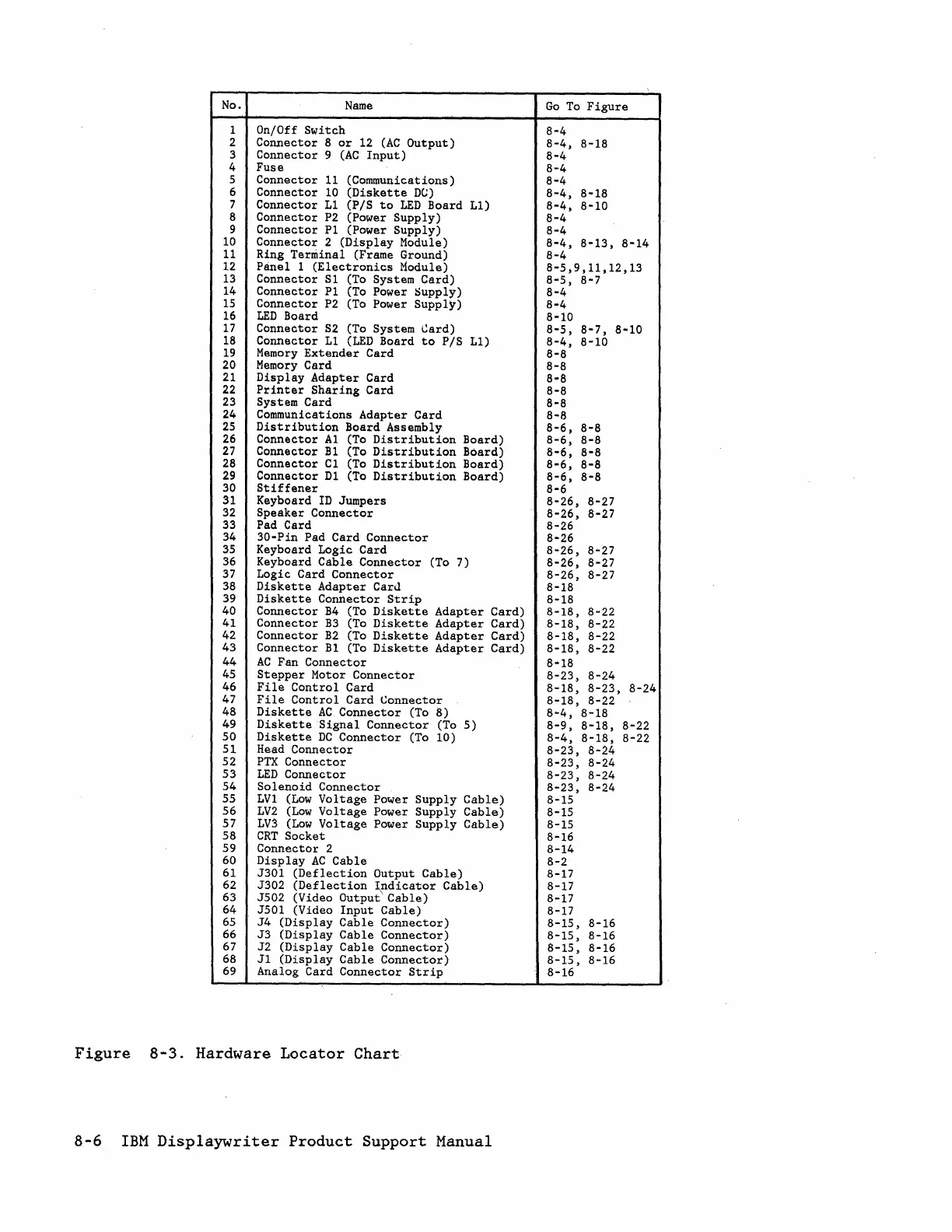

Figure 8-3. Hardware Locator Chart
8-6 IBM Displaywriter Product Support Manual
Go To Figure
8-4
8-4, 8-18
8-4
8-4
8-4
8-4, 8-18
8-4, 8-10
8-4
8-4
8-4, 8-13, 8-14
8-4
8-5,9,11,12,13
8-5, 8"7
8-4
8-4
8-10
8-5, 8-7, 8"10
8-4, 8-10
8-8
8-8
8-8
8-8
8-8
8-8
8-6, 8-8
8-6, 8-8
8-6, 8-8
8-6, 8-8
8-6, 8-8
8-6
8-26, 8-27
8-26, 8-27
8-26
8-26
8-26, 8-27
8-26, 8-27
8-26, 8-27
8-18
8-18
8-18, 8-22
8-18, 8-22
8-18, 8-22
8-18, 8-22
8·18
8-23, 8-24
8-18, 8-23, 8-24
8-18, 8-22
8"4, 8-18
8-9, 8-18, 8-22
8-4, 8-18, 8-22
8-23, 8-24
8-23, 8-24
8-23, 8-24
8-23, 8-24
8-15
8-15
8-15
8-16
8-14
8-2
8-17
8-17
8-17
8-17
8-15, 8-16
8-15, 8-16
8-15, 8-16
8-15, 8-16
8-16
