IBM 6580 User Manual

2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
Foreground mode I Function namel
L disklR disklCommunication status reserve I
I Memory xxxx
I Kyb I xxx I
'prompt line'
'message line'

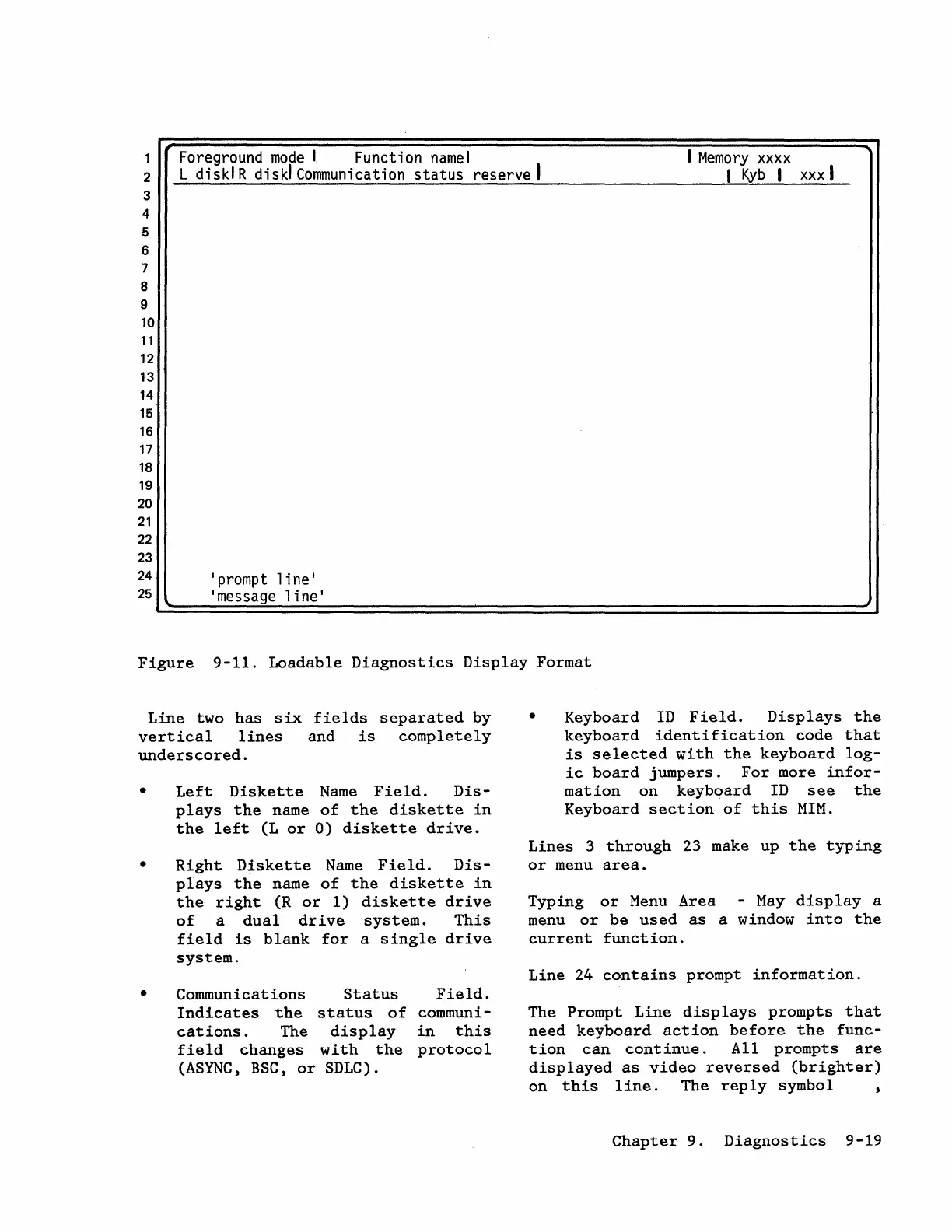

Figure
9-11. Loadable Diagnostics Display Format
Line two has six fields separated by
vertical lines and is completely
underscored.
• Left Diskette Name Field. Dis-
plays the name of the diskette in
the left (L or 0) diskette drive.
•
•
Right Diskette Name Field. Dis-
plays the name of the diskette in
the right (R or 1) diskette drive
of a dual drive system. This
field is blank for a single drive
system.
Communications
Status Field.
Indicates
the status of
communi-
cations. The
display in
this
field
changes
with
the protocol
(ASYNC, BSC, or SDLC).
•
Keyboard ID Field. Displays the
keyboard identification code that
is selected with the keyboard log-
ic board jumpers. For more infor-
mation on keyboard ID see the
Keyboard section of this MIM.
Lines 3 through 23 make up the typing
or menu area.
Typing or Menu Area - May display a
menu or be used as a window into the
current function.
Line 24 contains prompt information.
The Prompt Line displays prompts that
need keyboard action before the func-
tion can continue. All prompts are
displayed as video reversed (brighter)
on this line. The reply symbol
Chapter 9. Diagnostics 9-19
